Denon AVR-2807 User Manual

13

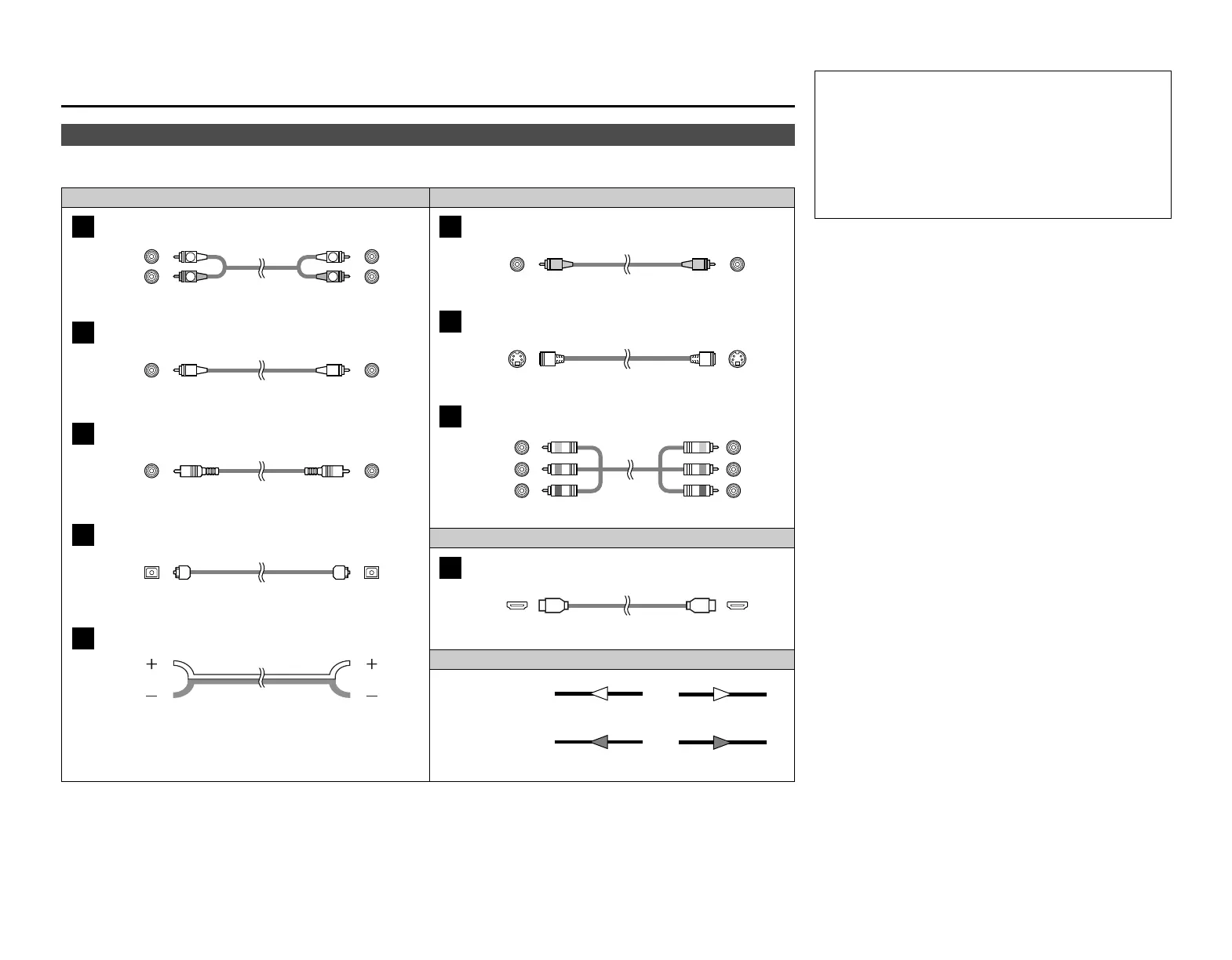

Connecting Other Sources
Cable indications
Signal direction
Audio and Video cable
The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).
Video cableAudio cable
NOTE:
• Do not plug in the power supply cord until all connections
have been completed.
• When making connections, also refer to the operating
instructions of the other components.
• Be sure to connect the left and right channels properly (left
with left, right with right).
• Do not bundle power cords together with speaker cables.
Doing so could result in humming or noise.
Analog terminal (Stereo)
A
R
L
R
L
(Orange)
Pin-plug cable
Analog terminal (Monaural, for subwoofer)
B
Pin-plug cable
Digital terminal (Coaxial)
C
Coaxial cable (75 Ω/ohms pin-plug cable)
(Yellow)
Digital terminal (Optical)
D
Optical cable (Optical fiber cable)
Speaker terminal
E
Speaker cable
Video terminal
F
HDMI terminal
I
HDMI cable
Video cable (75 Ω/ohms video pin-plug cable)
S-Video terminal
G
S-Video cable
Audio signal
Video signal
(White)
(Red)
Component video terminal
H
Component video cable
(Y)
(PB/CB)
(PR/CR)
(Green)
(Blue)
(Red)
IN OUT OUT IN
IN OUT OUT IN
Connecting Other Sources

Denon AVR-2807 Specifications

General

Number of Channels	7.1
HDMI Inputs	2
HDMI Outputs	1
Component Video Inputs	3
Component Video Outputs	1
Dolby Digital	Yes
DTS	Yes
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Input Sensitivity	200 mV
Signal-to-Noise Ratio	100 dB
Speaker Impedance	6-16 ohms
Tuner Type	AM/FM
Power Output	110W per channel
Digital Audio Inputs	2 coaxial
Auto Setup	Audyssey MultEQ
Multi-room	Yes
Width	434 mm
Height	171 mm
Dimensions	434 x 171 x 414 mm
