13. PRIM/CPU SUPPLY UNIT UNIT ASSY
(1) Disconnect the connector wires.（コネクタワイヤーをはずす。）
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
→ AUDIO UNIT ASSY → UCON CONNECT UNIT
→ AUDIO LIMIT UNIT → MAIN CPU UNIT ASSY
→ PRIM/CPU SUPPLY UNIT ASSY
CX515

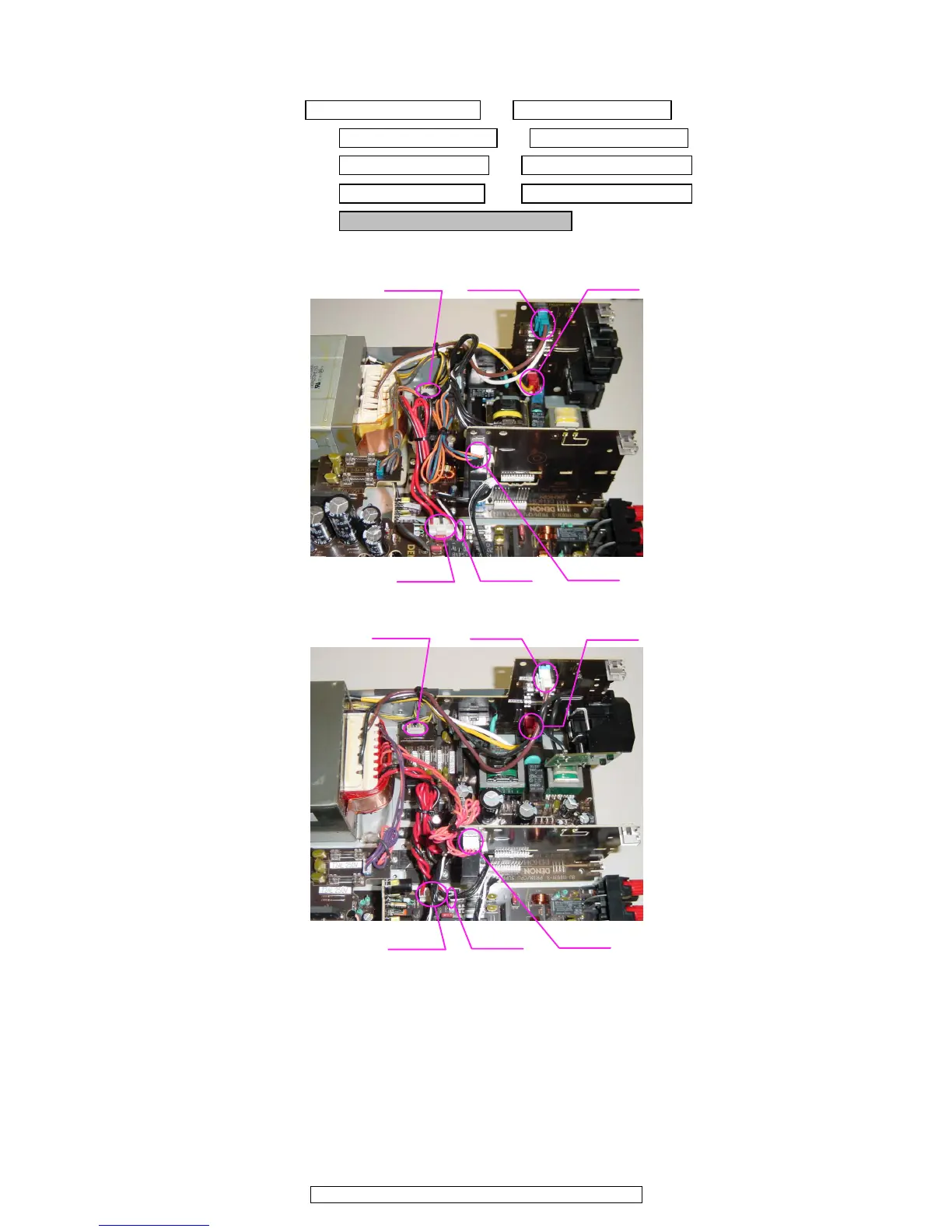

Top view
CX054
CX033
CX512
CX022
CX021
EU model
CX515
Top view
CX054
CX033
CX512
CX022
CX021
EC, E2, E1C, JP model
