Denon AVR-2809CI

77
AVR-2809CI / AVR-2809 / AVR-989 / AVC-2809

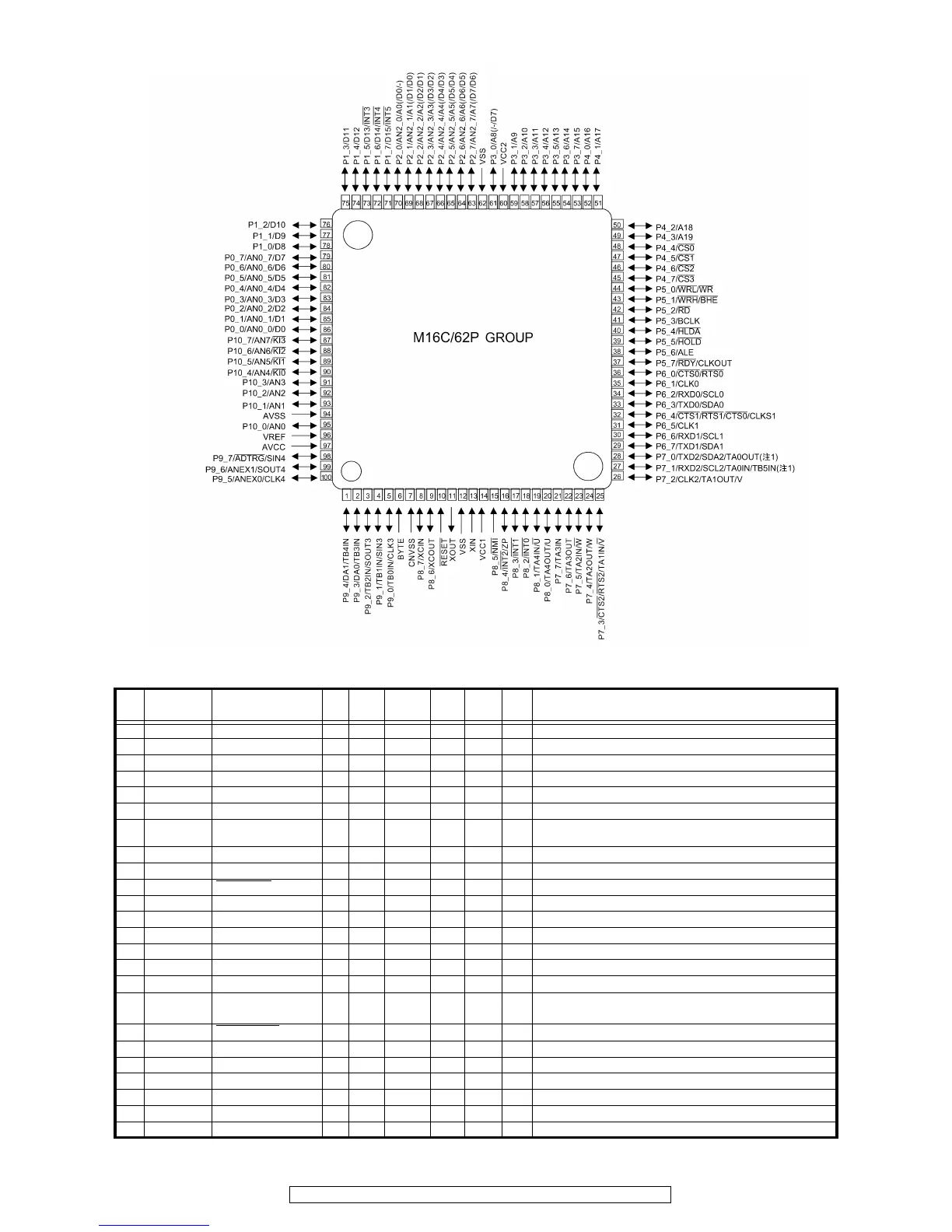

M3062LFGPGP (DI: IC951)
M3062LFGPGP Terminal Function
Pin Pin Name Symbol I/O Type Det
Op
(Int.)
Op
(Ext.)
Res Function
1 P94/TB4 VPLD DATA O C - - - Z VIDEO PLD control pin
2 P93/TB3 DIR CE O C - - - Z DIR control pin (LC89057W-VF4A)
3 P92/SOUT3 DIR DIN O C - - - Z DIR control pin (LC89057W-VF4A)
4 P91/SIN3 DIR DOUT I - Lv - Eu Z DIR control pin (LC89057W-VF4A)
5 P90/CLK3 DIR CLK O C - - - Z DIR control pin (LC89057W-VF4A)
6 BYTE BYTE - - - - - - GND (Ext. data bus bit width switching, 16bit:L)
7 CNVCS CNVSS - - - - - - Single-chip/Micro-processor mode switching (Normal single-
chip:L, Rewrite boot program start:H input set)
8 P87 VERST O C - - Eu Z Reset for VIDEO ENCODER (ADV7320)
9 P86 VDRST O C - - Eu Z Reset for VIDEO ENCODER (ADV7430)
10 RESET SUBRESET
I - Lv - Eu L Reset input
11 XOUT X1 O - - - - - Oscillator connection
12 VSS VSS - - - - - - GND
13 XIN X2 I - - - - - Oscillator connection
14 VCC VCC - - - - - +3.3V
15 P85/NMI NMI I - - - - - Not used (Fixed to H)
16 P84/INT2 CEC_IN I -
E ↓ &L
- Eu Z CEC-D signal input pin
17 P83/INT1 ACKSIMO I -
E ↓ &L
-EdZ
MAIN-SUB μcom comm. control input pin ("L" return from MAIN
μcom)
18 P82/INT0 SUB BDOWN
I-
E ↓ &L
Eu Z Power down detect (Power down:L)
19 P81 IP RST O C - - - Z IP CONV (FLI2310) reset
20 P80 Z2SSIG.DET I - - - Eu Z ZONE2 S signal extence detection input (connected:H)
21 P77 OSR O C - - - Z AD (PCM1803) control pin
22 P76 PLD_CS_MAIN/TMS O C - - - Z MAIN PLD control pin/PLD rewrite control (JTAG)
23 P75 PLD_DATA/TDI O C - - - Z MAIN PLD control pin/PLD rewrite control (JTAG)
24 P74 MPLDCLK O C - - - Z MAIN PLD control pin/PLD rewrite control (JTAG)
