AVR-3310CI/AVR-3310/AVR990/AVC-3310
2. DIGITAL UNIT ASSY

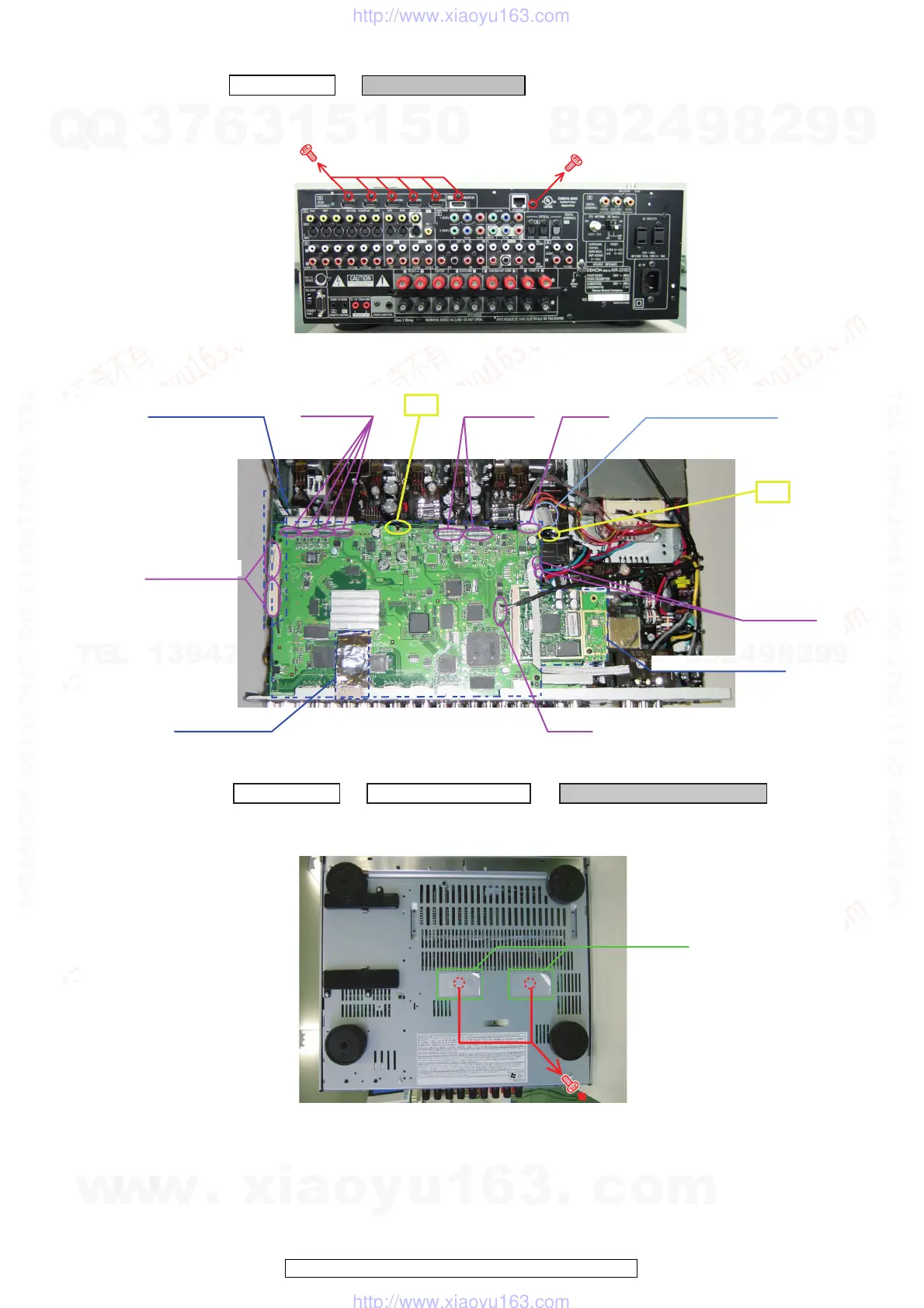

(1) Remove the screws.
(2) Remove the alminium tape, then cut the wire clampers. Disconnect the connector wire, FFC Cables, and board to
board.
3. BACK PANEL UNIT ASSY
Remove the Sheets, then remove the screws.
Proceeding : TOP COVER →
DIGITAL UNIT ASSY
ً
◆
Direction of photograph: A
Except EUEC modelFFC CableFFC Cable
FFC Cable
cut
cut
MAIN CPU UNIT
DIGTAL UNIT ASSY
Board to board
CX047
CY052
Alminium Tape
s
Proceeding : TOP COVER →
→
DIGITAL UNIT ASSY
BACK PANEL UNIT ASSY
Sheets
View from bottom
