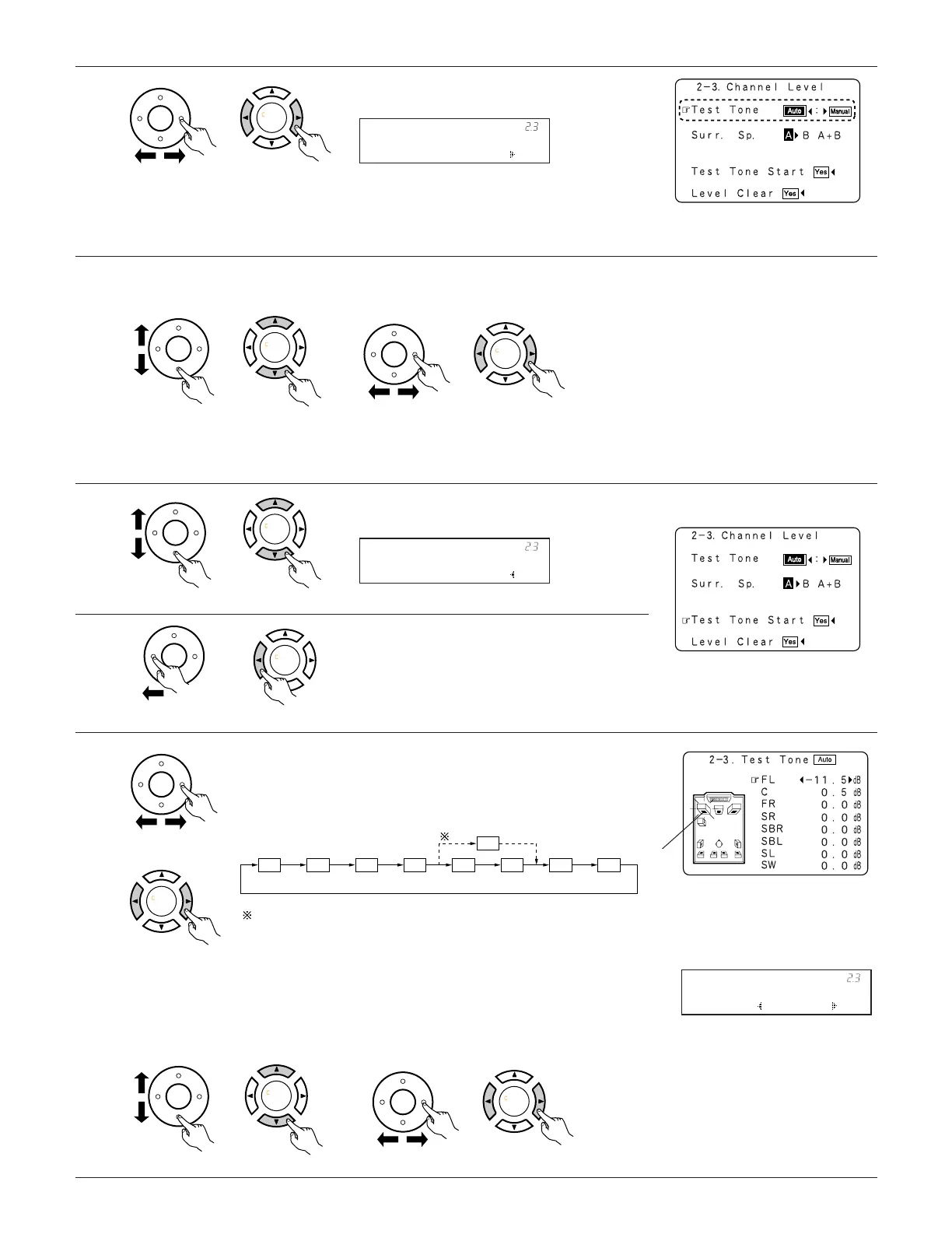

Select the mode.
Select “Auto” or “Manual”.
Example: When the “Auto” mode is selected
5
6
7
Select “Test Tone Start”.
Select “Ye s”.
a. When the “Auto” mode is selected:
Test tones are automatically emitted from each speaker.
The test tones are emitted from each speaker in the following
order, at 4-second intervals the first time and second time around, 2-
second intervals the third time around and on:
Use the CURSOR left and right buttons to adjust all the speakers to the
same volume.
The volume can be adjusted between –12 dB and +12 dB in units of 0.5 dB.
b. When the “Manual” mode is selected :
Example: When the volume is set to –11.5 dB
while the test tone is being
produced from the Front Lch
speaker
Flashing
FL C FR SR SBR SBL SL SW
SB
1spkr
2spkrs
When the surround back speaker setting is set to “1spkr” for
“Speaker Configuration”, this is set to “SB”.
CH SEL
ENTER
(Main unit)
(Remote control unit)
CH SEL
ENTER
CH SEL
ENTER
(Remote control unit)
(Main unit)
CH SEL
ENTER
CH SEL
ENTER
(Main unit)
(Remote control unit)
CH SEL
ENTER
Tone Start:Yes
*Channel Level
CH SEL
ENTER
(Main unit)
(Remote control unit)
CH SEL
ENTER
CH SEL
ENTER
(Main unit)
(Remote control unit)
CH SEL
ENTER
CH SEL
ENTER
(Main unit)
(Remote control unit)
CH SEL
ENTER
CH SEL
ENTER
(Main unit)
(Remote control unit)
CH SEL
ENTER
FL : -11.5dB
TestTone Auto
T.Tone: Auto
*Channel Level
• Auto:
Adjust the level while listening to the test tones
produced automatically from each speaker.
• Manual:
Select the speaker from which you want to produce the test tone to adjust the level.
q Select the speaker. w Adjust all the speakers to the same volume.
q Select “Surr. Sp.”.
• Surr. Sp.: A
Adjusts the balance of the playback level between the
channels when using surround speaker A.
• Surr. Sp.: B
Adjusts the balance of the playback level between the
channels when using surround speaker B.
• Surr. Sp.: A+B
Adjusts the balance of the playback level between the
channels when using surround speakers A and B at the
same time.
The “Surr. Sp.” can only be selected when both surround
speakers A and B have been selected at the System Setup
Menu (when both A and B have been set to “Large” or
“Small”).
CH SEL
ENTER
(Main unit)
(Remote control unit)
CH SEL
ENTER
w Select the surround speaker(s) from which
you want to produce the test tone (A, B or
A+B).
