108

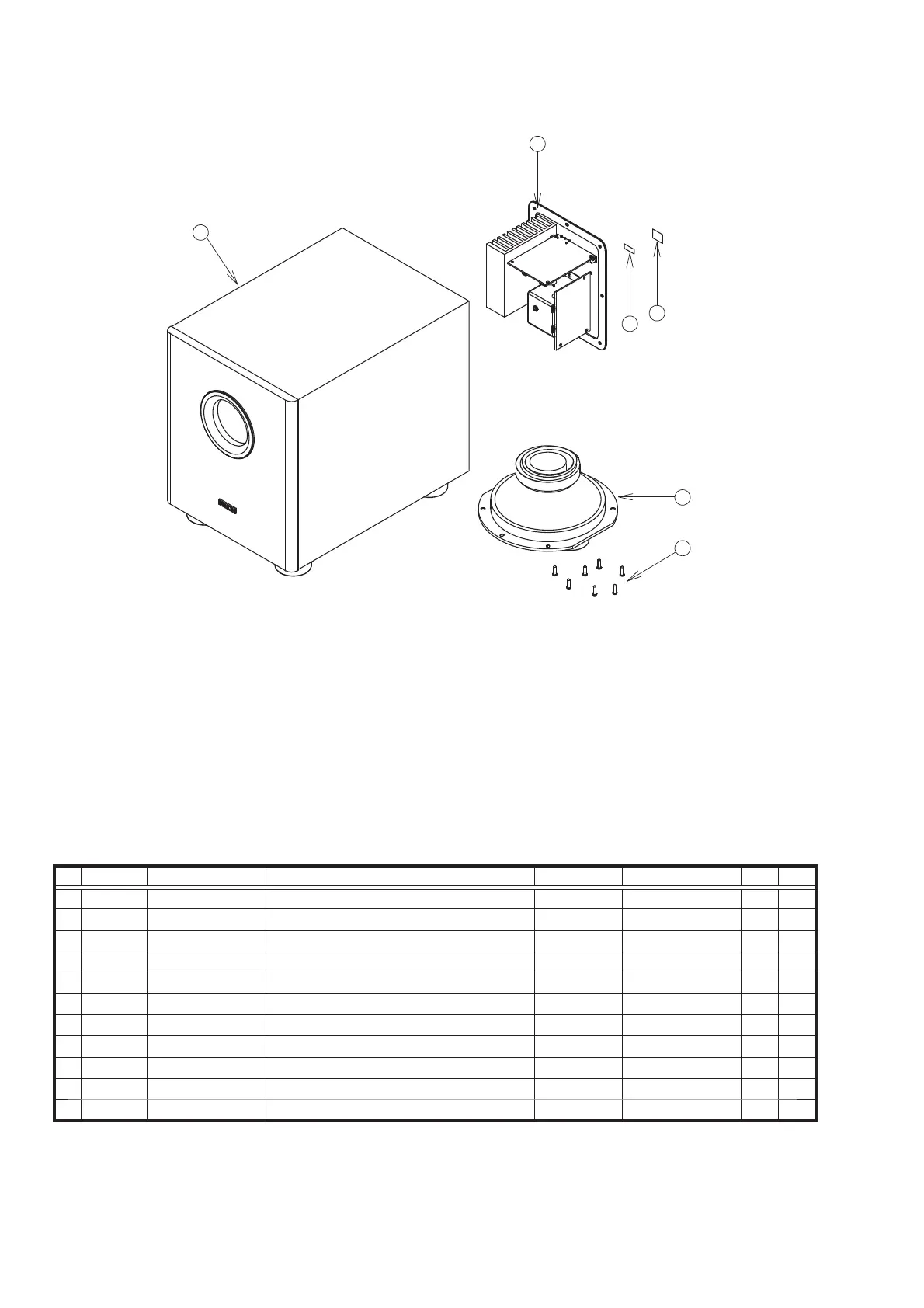

DSW-391 EXPLODED VIEW
DSW-391 PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. and Canada model E3B : Brazil model s
E2 : Europe model EA : Australia model
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp CABINET ASSY
-
1*
2 984323000180D DRIVER 304-00044-00 1 *
3 nsp SCREW S411-A4020E1J 14 *
4 984189000150D AMPLIFIER E2 326-W391CE-K0 1 *
4 984189000160D AMPLIFIER E3 326-W391UL-K0 1 *
4 984189000170D AMPLIFIER EA 326-W391AU-K0 1 *
4 984189000190D AMPLIFIER E3B 326-W391UB-K0 1
*
5 nsp SAFETY LABEL E2,EA 660-00W391-00 1 *
5 nsp SAFETY LABEL E3 660-10W391-00 1 *
6 nsp SPEC LABEL E2 600-00W391-00 1 *
6 nsp SPEC LABEL E3,E3B 600-10W391-00 1
*
1
4
5
6
2
3
s
s
