Denon AVR-391 Service Manual

66

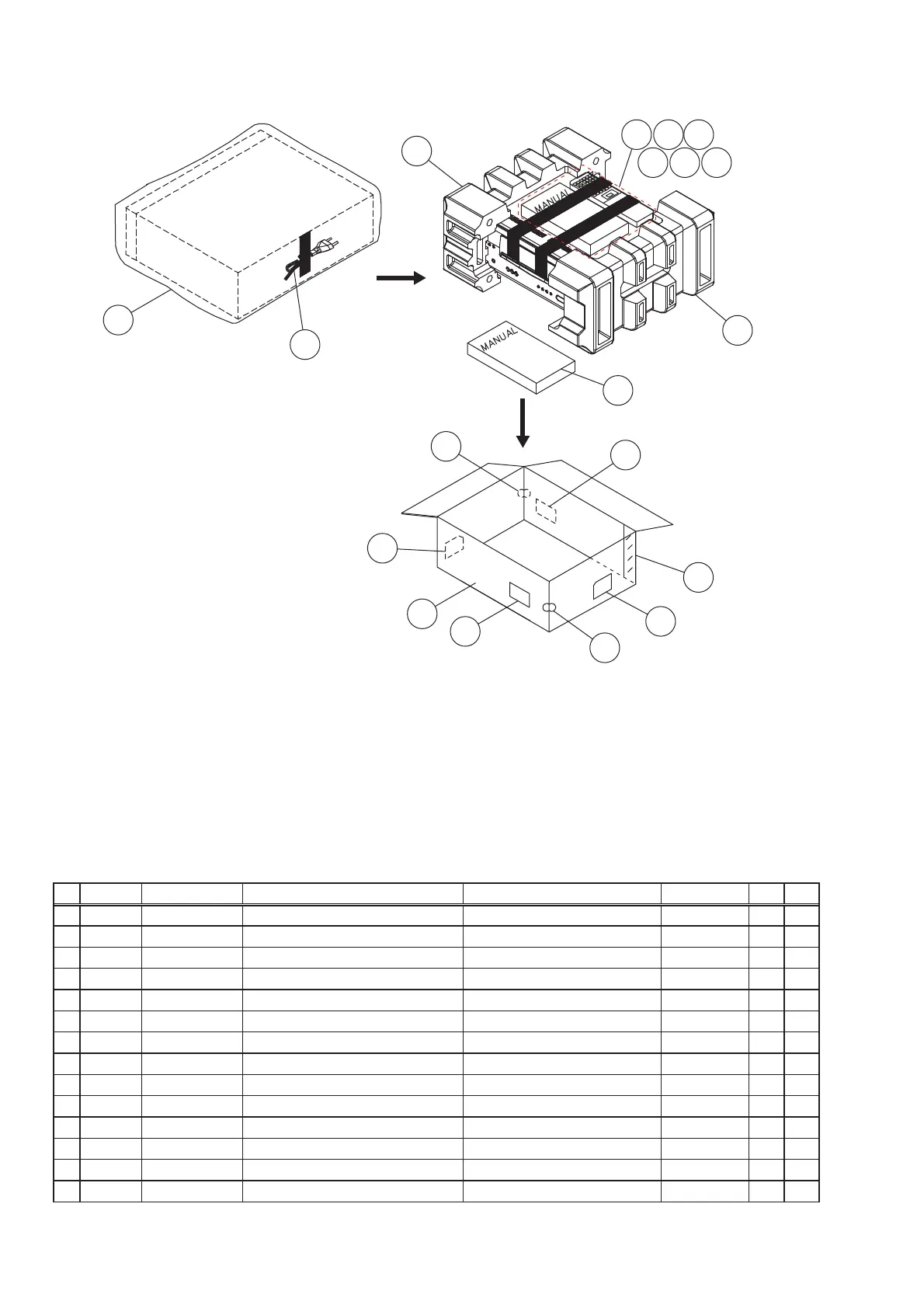

PACKING VIEW (for AVR-1311, 391)
PARTS LIST OF PACKING & ACCESSORIES (for AVR-1311, 391)
zParts for which "nsp" is indicated on this table cannot be supplied.
zPart indicated with the mark " ★ " is not illustrated in the exploded view.
zThe parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
1311E2 : Europe model 1311E1C : China model
391E3 : U.S.A. & Canada model 391EA : Australia model
BK : Black model SP : Premium Silver model
Ref.No. Part No. Part Name Remarks Q'ty New
1 nsp POLYSET BAG CPP1A081Z 1
z
2 90M-ZC000320R POWER CORD 1311SPE2,1311BKE2 CJA2B054Z 1
z
2 90M-YC000790R POWER CORD 1311SPE1C CJA2N047ZA 1
z
2 90M-YC000780R POWER CORD 391BKE3 CJA523FBYA 1
z
2 943611010020S POWER CORD 391BKEA CJA2H116Z 1
3 943533009560D SNOW PAD(L) CPS1A880 1 *
4 943533009570D SNOW PAD(R) CPS1A881 1 *
5-1 541110486002D INSTRUCTION MANUAL A 1311SPE2,1311BKE2 CQX1A1538Z 1 *
5-2 541110603005D INSTRUCTION MANUAL B 1311SPE2,1311BKE2 CQX1A1538Y 1 *
5-1 541110488008D INSTRUCTION MANUAL 1311SPE1C CQX1A1540Z 1 *
5-1 541110484006D INSTRUCTION MANUAL 391BKE3 CQX1A1537Z 1 *
5-1 541110489001D INSTRUCTION MANUAL 391BKEA CQX1A1541Z 1 *
6 307010085006D REMOCON TRANSMITER ASS'Y CARTAVR1311 1 *
7 nsp BATTERY (SIZE 'AAA') CABR03PPB 2
1
12
11
11
14
14
13
13
12
3
4
5-1
5-2
67
8910
2
z

Denon AVR-391 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Formats	Dolby Digital, Dolby Pro Logic II
Audio Return Channel	Yes
Component Video Inputs	2
Digital Optical Inputs	1
Digital Coaxial Inputs	1
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
THD	0.08%
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Power Output	75 Watts per channel
DTS Formats	DTS
Tuner Frequency Range	FM: 87.5 - 108 MHz
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Dimensions	434 x 151 x 319 mm
Weight	8.5 kg
