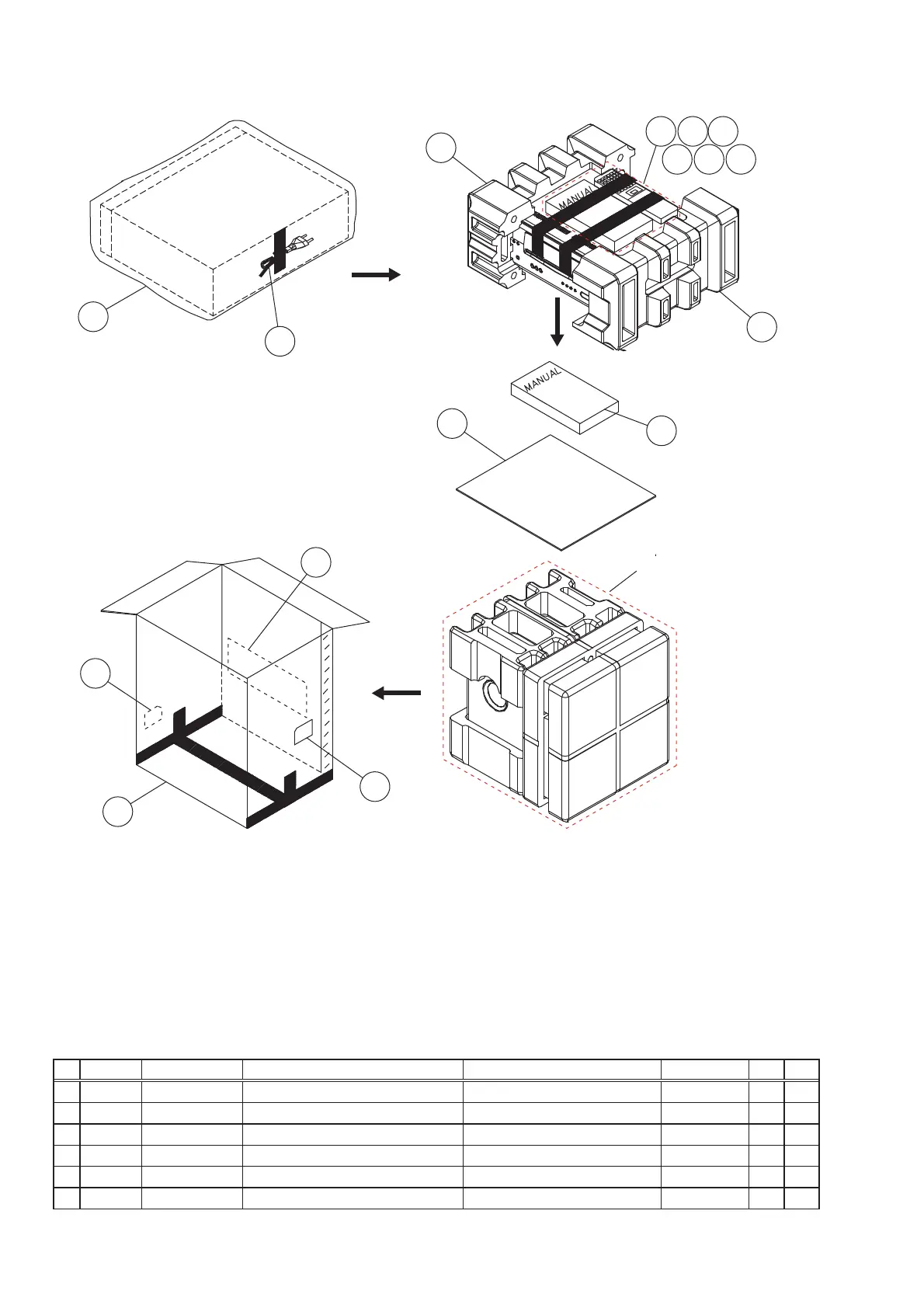

PACKING VIEW (for DHT-1311XP, 391XP)
PARTS LIST OF PACKING & ACCESSORIES (for DHT-1311XP, 391XP)
zParts for which "nsp" is indicated on this table cannot be supplied.
zPart indicated with the mark " ★ " is not illustrated in the exploded view.
zThe parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
1311E2 : Europe model
391E3 : U.S.A. & Canada model 391E3B : Brazil model s 391EA : Australia model
BK : Black model
Ref.No. Part No. Part Name Remarks Q'ty New
1 nsp POLYSET BAG CPP1A081Z 1
z
2 90M-ZC000320R POWER CORD 1311BKE2 CJA2B054Z 1
z
2 90M-YC000780R POWER CORD 391BKE3 CJA523FBYA 1
z
2 943611010020S POWER CORD 391BKEA CJA2H116Z 1
z
2 943611011130D POWER CORD 391BKE3B CJA2F118Z 1
3 943533009930D SNOW PAD(L) CPS1A882 1 *
1
12
11
SYS-391HT
(Refer to page 109,110.)
14
13
13
3
4
5-1
67
8910
2
z
5-2
s
To Next Page
