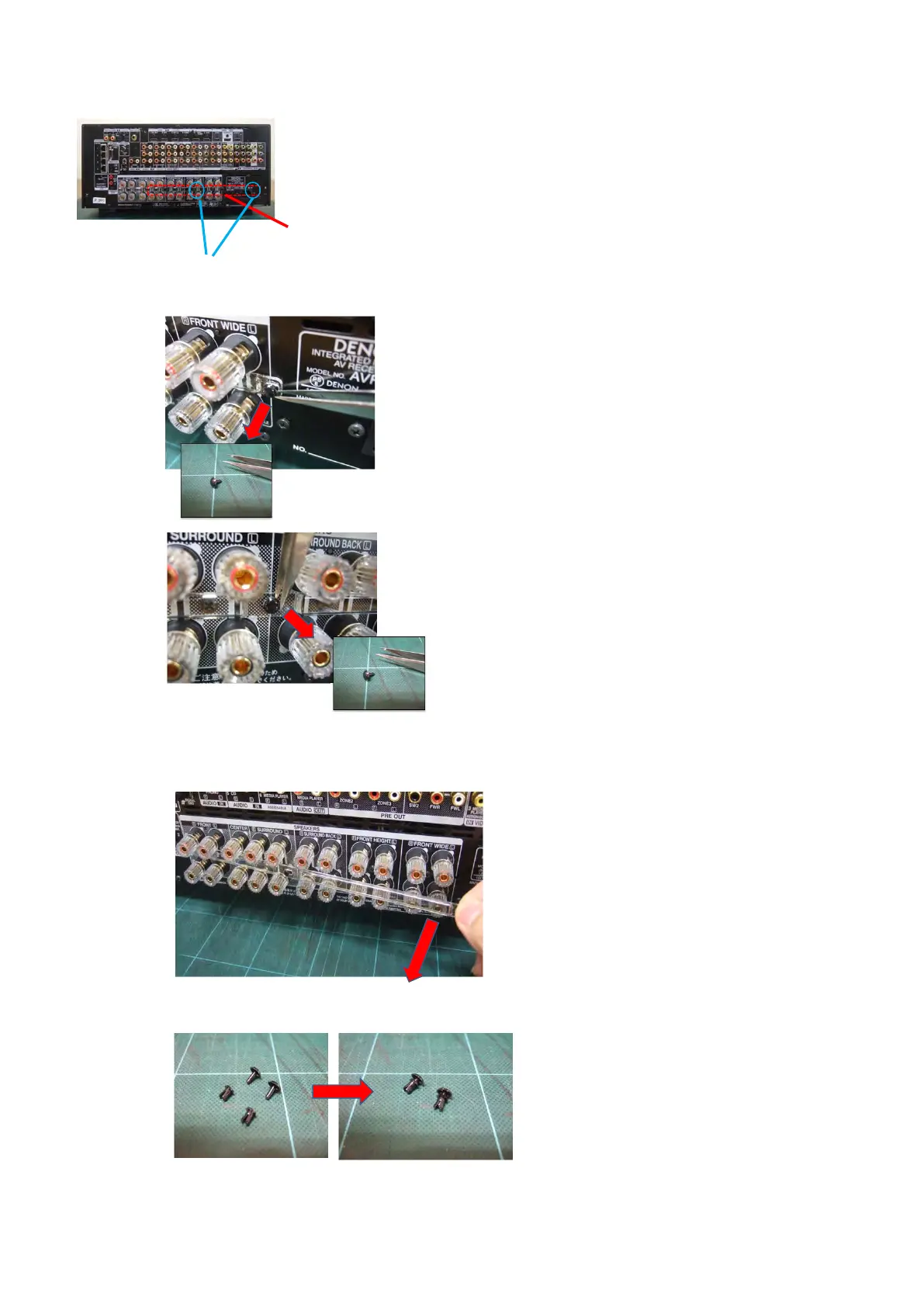

6. REMOVE THE SCREW COVER (41951004800AD:SP)

41951004800AD:SP SCREW COVER

00D4790003038:PUSH RIVET

1.Remove : PUSH RIVET(2pcs)

2.Remove : SP SCREW COVER

3.Assembly : PUSH RIVET

END
