JIG FOR SERVICING
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order to DENON Ofcial Service. Distributor in your region if necessary.
Note: When the connection which is wrong in the JIG (EXTENSION UNIT KIT) is done it becomes cause of damage.
8U-110084S : EXTENSION UNIT KIT
•ConnectionofPCBHDMIJIG
-Preparation-
8U-110084S : EXTENSION UNIT KIT : 1 Set
Insulation sheet (Do not supply it) : 3 sheet
Ground lead (Do not supply it) : 1 pcs
-Procedures-
(1) Disconnect the connector board.

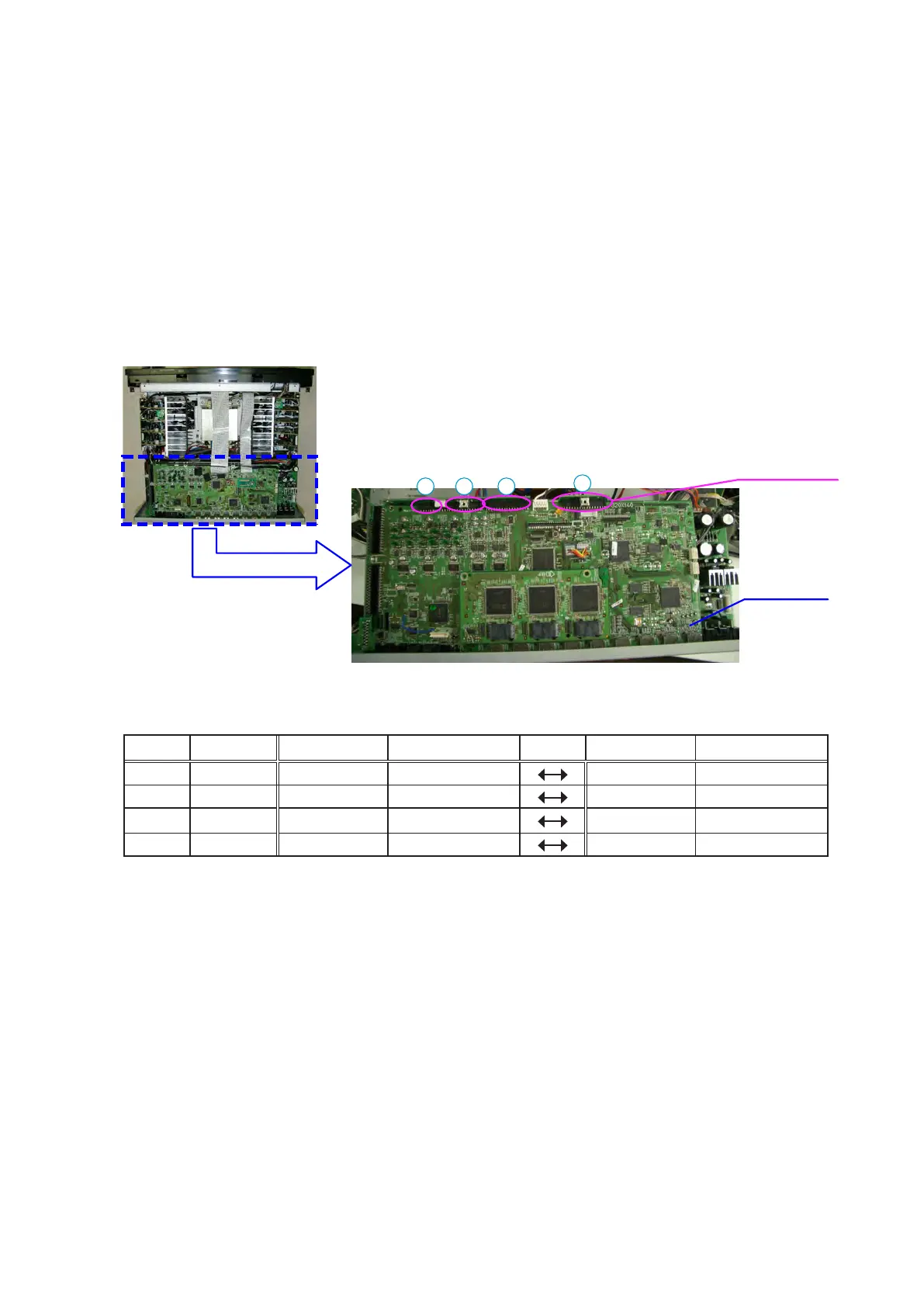

Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
11pin N4001 FRONT CNT
N1803 HDMI
w
33pin N4002 FRONT CNT
N1804 HDMI
e
33pin N4003 FRONT CNT
N1805 HDMI
r
33pin N4004 FRONT CNT
N1806 HDMI
DIGITAL UNIT
(8U-310116)
Board to board
1 2 3
4
To Next Page
