Denon AVR-4802 Service Manual

3
AVR-4802/AVC-A11SR
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or parts replacement etc.,be sure to rearrange them neatly as they
were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise generation.

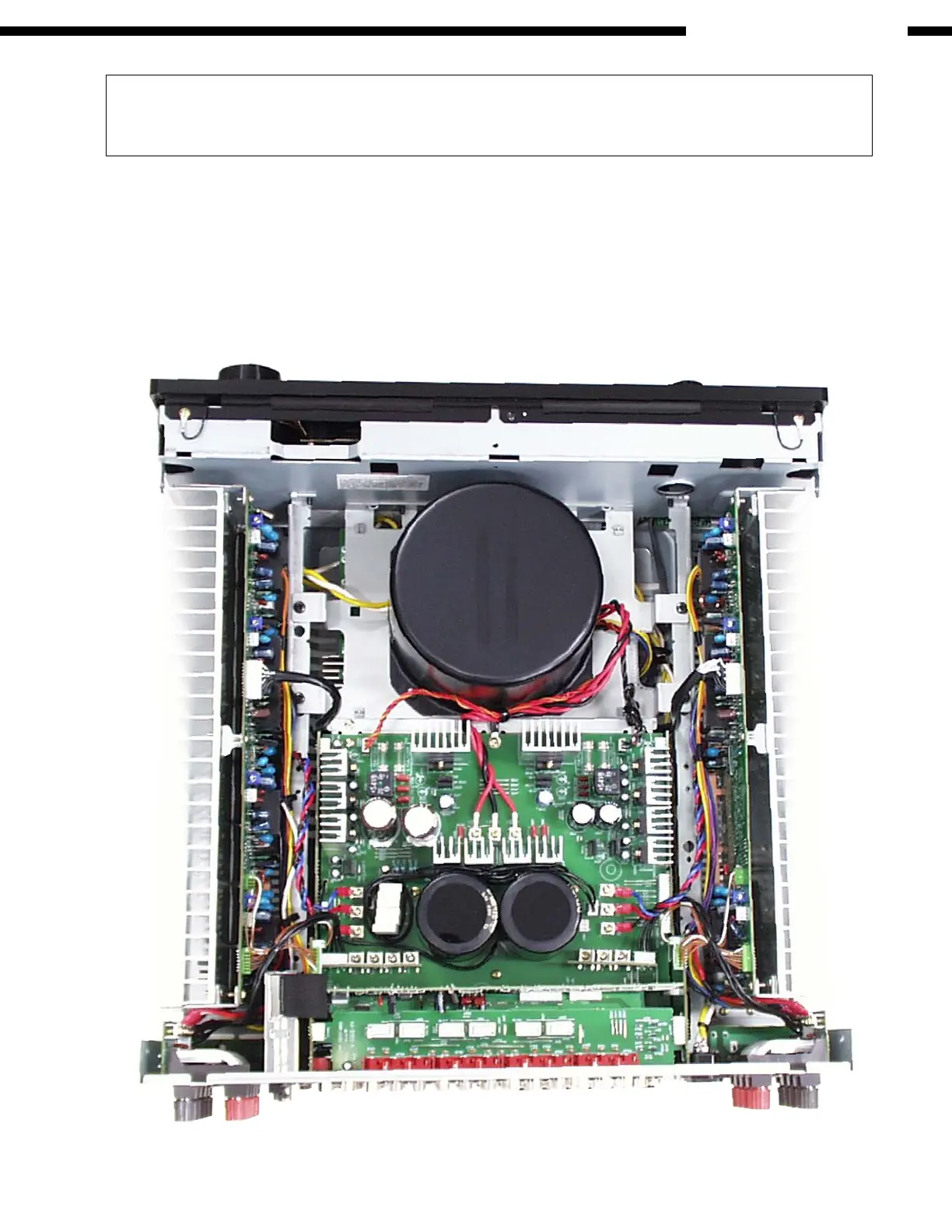

Wire arrangement viewed from the top
Back Panel side
Front Panel side
CAUTION IN SERVICING
When you have replaced the 1U-3291 Unit, or changed the CPU, DSP, or their peripheral parts, be sure to perform “RESET”
by pressing S803 on the DSP Unit Ass’y in the state of Standby or Power-on.

Denon AVR-4802 Specifications

General

Impedance	8 ohms
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
THD	0.05%
Signal-to-Noise Ratio	100 dB
Surround Sound	Dolby Digital, DTS, Dolby Pro Logic II
Component Video Inputs	3
Digital Inputs	5 (3 Optical, 2 Coaxial)
Type	AV Receiver
Channels	7.1
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Inputs	5 Digital (3 Optical, 2 Coaxial)
Outputs	composite video, component video, optical digital
Audio D/A Converter	24-bit/192kHz
