Denon AVR-4802 Service Manual

2.55V
0V
0V
0V 2.5V
5V
3.3V
5V
0V
0V
-15V
15V
2.55V
2.55V
2.55V
2.8V
2.8V
2.8V
0V
0V
0V
-14V
-15V
8V
5V
5V
5V
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT NO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460 kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.

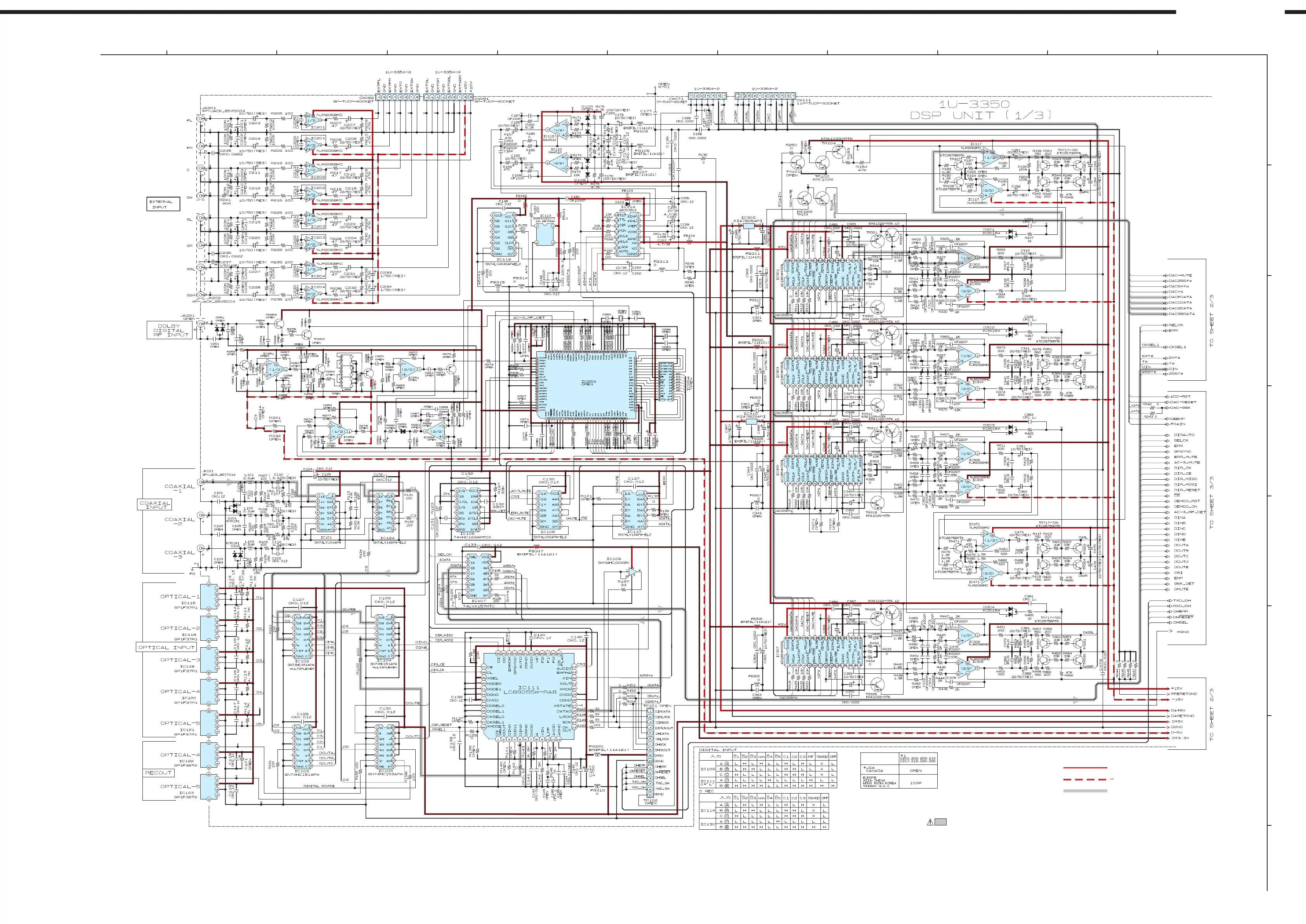

SCHEMATIC DIAGRAMS (1/9)
1U-3350 DSP UNIT (1/3)
SIGNAL LINE
- B LINE
+ B LINE
AVR-4802/AVC-A11SR
62
00
SCHEMATIC DIAGRAMS (1/9)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H

Denon AVR-4802 Specifications

General

Impedance	8 ohms
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
THD	0.05%
Signal-to-Noise Ratio	100 dB
Surround Sound	Dolby Digital, DTS, Dolby Pro Logic II
Component Video Inputs	3
Digital Inputs	5 (3 Optical, 2 Coaxial)
Type	AV Receiver
Channels	7.1
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Inputs	5 Digital (3 Optical, 2 Coaxial)
Outputs	composite video, component video, optical digital
Audio D/A Converter	24-bit/192kHz
