41
AVR-2310CI/2310/890, AVC-2310

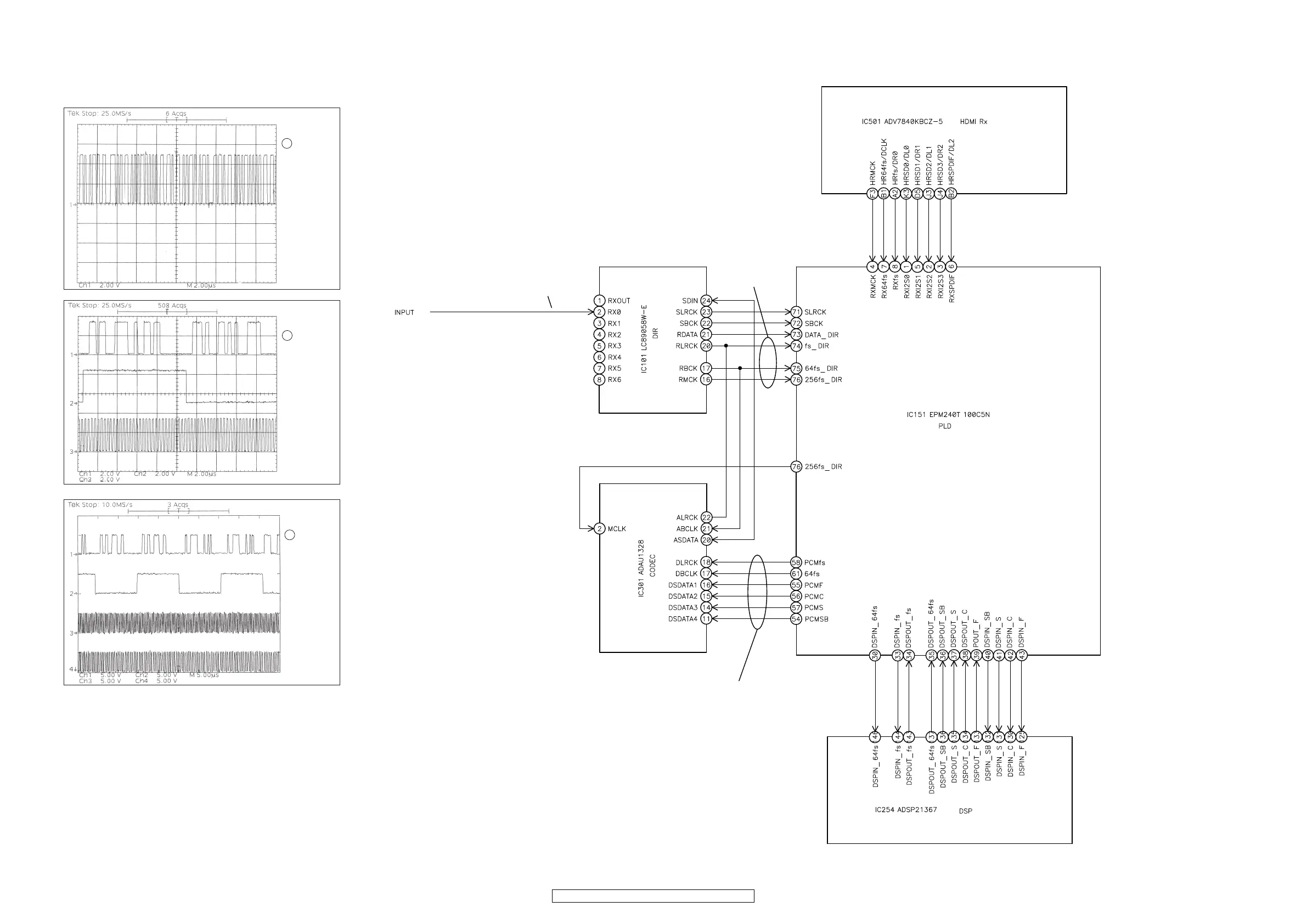

CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK
①
③
②
CH1: D-DATA
1
CH1: DATA
CH2: fs
CH3: 64fs
CH4: 256fs
3
CH1: DATA
CH2: fs
CH3: 64fs
2
Wave form
