AVR-2310CI/2310/890, AVC-2310

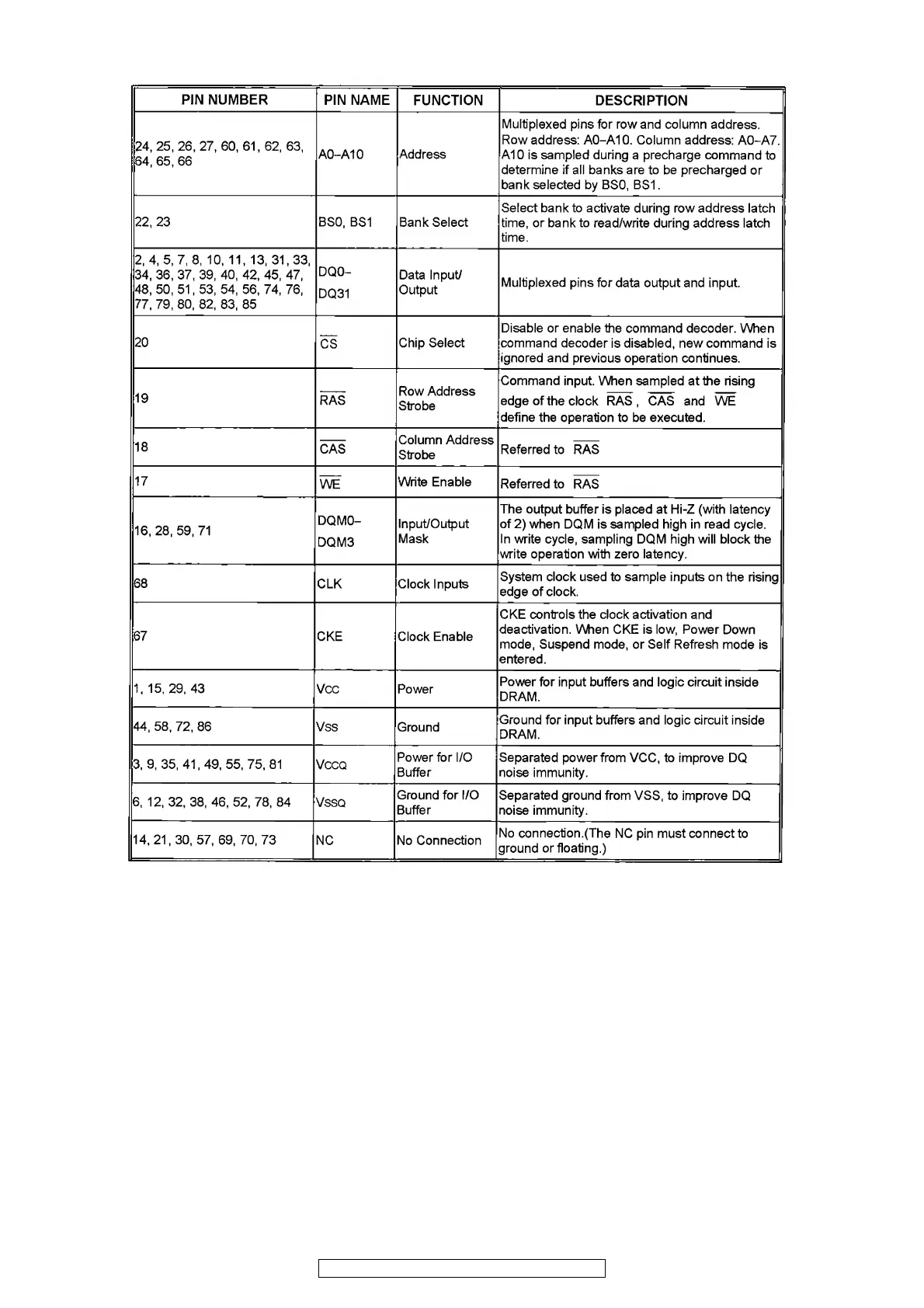

W9864G2GH-6 Pin Description

Main Page

Safety Precautions2
Leakage Current Check2
Dimension3
Wire Arrangement5
Wire Arrangement Viewed from the Top5
Back Panel Side5
Front Panel Side5
Disassembly6
Panel Front Assy7
Pcb Hdmi Assy9
Bracket Hdmi9
Pcb Digi-Cnt Assy10
Tuner Pack10
Chassis Back11
Pcb Sirius Assy12
Pcb Video Assy12
Pcb Input Assy13
Pcb Cpu Assy14
Pcb Main Assy15
PCB SUPPLY and PCB POWER16
Trans Main17
Pcb Pre out Assy18
Initializing AV SURROUND RECEIVER19
Caution in Servicing19
JIG to Use for Servicing19
Special Mode Setting Button20
Μcom/Dsp Version Display Mode21
Operation Specifications21
Display Order21
Errors Checking Mode22
About the Display on the FL Display22
Clearing the Protection History22
Warning Indication by the POWER LED22
Adjustment23
Audio Section23
Idling Current23
Trouble Shooting24
Power Not Turn on24
Fuse Is Blown24
Analog Video25
Monitor out25
Vcr/Dvr Monitor out30
Hdmi/DVI31
No Picture or Sound Is Output31
Audio Block Diagram33
Video Block Diagram34
VCC Diagram35
Front Level Diagram36
Center Level Diagram37
Sub Woofer Level Diagram38
Surround Level Diagram39
Surround Back Level Diagram40
Clock Flow & Wave Form in Digital Block41
Semiconductors43
IC’s43
M30879FLBFP Block Diagram44
M30879FLBFP Terminal Function44
R5F3650Tnfb (Ic901 : Hdmi B’D)47
R5F3650TNFB Block Diagram48
R5F3650TNFB Terminal Function48
Adsp-21367 (Ic254 : Hdmi B’D)51
ADSP-21367 Terminal Function51
Adv7510 (Ic701 : Hdmi B’D)52
ADV7510 Block Diagram52
Is42S32200E-6Tl (Ic603 : Hdmi B’D)53
IS42S32200E-6TL Block Diagram53
IS42S32200E-6TL Terminl Function54
R2A15218Fp (Ic700 : Input B’D)55
R2A15218FP Block Diagram55
R2A15218FP Terminl Function56
Adv3002Xstz (Ic401 : Hdmi B’D)57
ADV3002XSTZ Block Diagram57
ADV3002XSTZ Pin Description58
W9864G2Gh-6 (Ic253 : Hdmi B’D)60
W9864G2GH-6 Block Diagram60
W9864G2GH-6 Pin Description61
Adv7340Bstz (Ic952 : Hdmi B’D)62
ADV7340BSTZ Block Diagram62
ADV7340BSTZ Pin Description63
Lc89058W-E (Ic101 : Hdmi B’D)64
Pin Functions64
LC89058W-E Block Diagram65
Adau1328 (Ic301 : Hdmi B’D)66
En29Lv160Bb-70Tip (Ic255 : Hdmi B’D)67
EN29LV160BB-70TIP Block Diagram67
Njw1321Fp1 (Ic2023 : Video B’D)68
La73062V-Tlm-E (Ic2024 : Video B’D)69
La73053 (Ic2016 : Video B’D)70
LC72722PM-TLM-E (IC801 : CPU B’D : E2 Model)71
Tc4051Bft(Ic2002-2004 : Video B’D)71
Tc4052Bft (Ic2014, 2015 : Video B’D)71
En5311Q (Ic202, 805 : Hdmi B’D)72
EN5311Q Block Diagram72
En5335Qi-T (Ic402 : Hdmi B’D)73
EN5335QI-T Block Diagram73
EN5335QI-T Pin Descriptions74
En5322Qi-T (Ic155, 403 : Hdmi B’D)75
EN5322QI-T Block Diagram75
EN5322QI-T Pin Descriptions76
Hin202Eibn (Ic903 : Sirius B’D)76
Bu4094Bcf-E2 (Ic2019 : Video B’D)76
Fl Display77
Flt (19-St-03Gink) (Flt301)77
Pin Connection77
Grid Assignment77
Anode Connection78
Printed Wiring Boards79
Pcb Main Ass’y79
Pcb Power Ass’y81
Pcb Front Ass'y83
Pcb 2Ch Ass’y85
Pcb Input Ass’y86
Pcb Digi Cnt Ass’y87
Pcb Video Ass’y88
Pcb Cpu Ass’y90
Pcb Hdmi Ass’y91
Pcb Spk Ass’y93
Pcb Sirius Ass’y94
Pcb Digi Power Assy94
Pcb Reg Assy94
Note for Parts List95
Resistors95
Capacitors95
Capacity (Electrolyte Only)95
Parts List of P.w.b. Unit96
Pcb Main Ass'y96
Pcb Hdmi Ass'y120
Pcb Digi Power Ass'y132
Pcb Reg Ass'y132
Exploded View134
Parts List of Exploded View135
Packing View140
Parts List of Packing & Accessories140
Note for Schematic Diagram142
Schematic Diagrams160
