Denon AVR-890 - Pcb Sirius Ass’y; Pcb Digi Power Assy; Pcb Reg Assy

169 pages

To Next Page

To Previous Page

AVR-2310CI/2310/890, AVC-2310

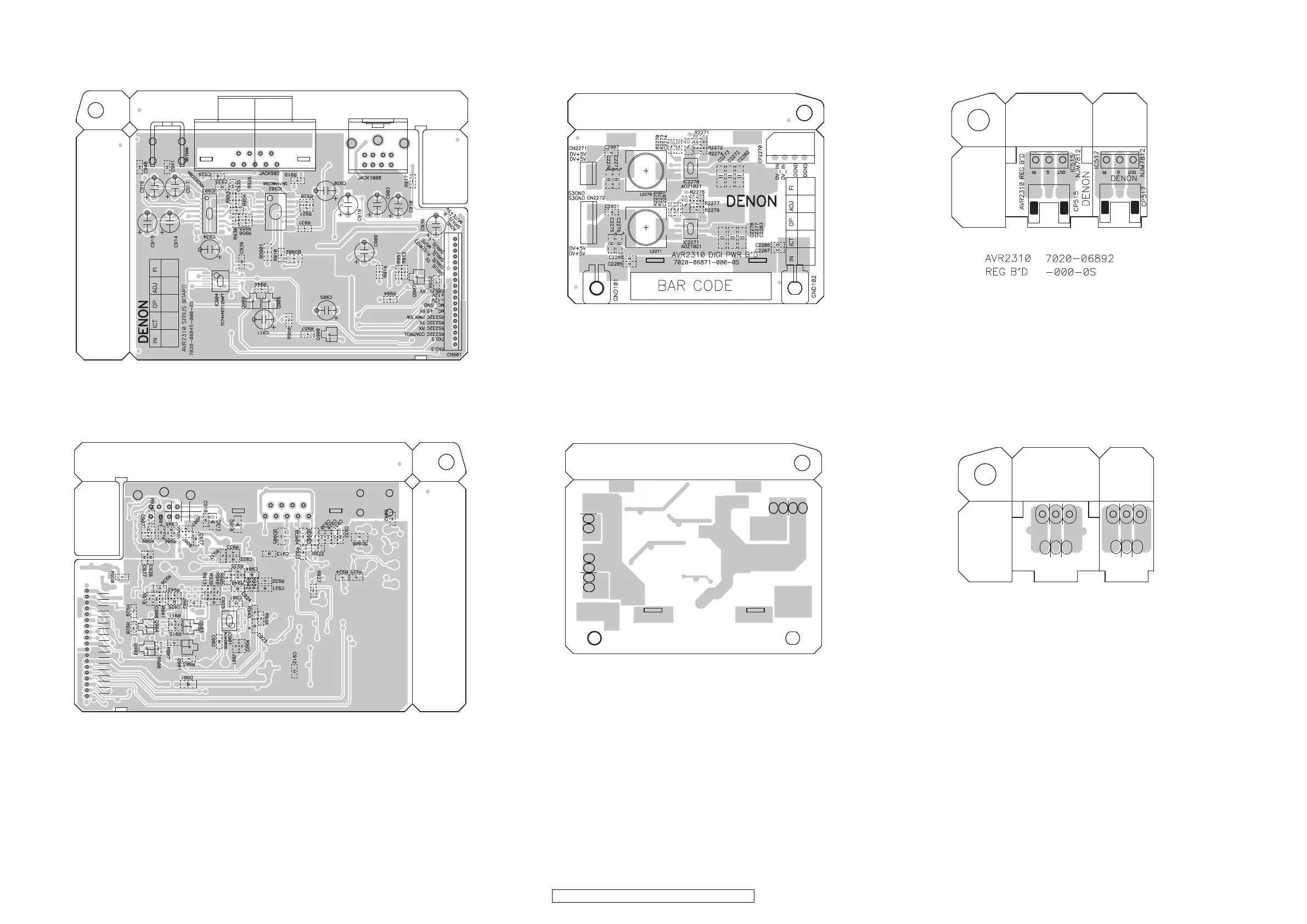

PCB SIRIUS ASS’Y PCB DIGI POWER ASSY PCB REG ASSY

COMPONENT SIDE

FOIL SIDE

COMPONENT SIDE

FOIL SIDE

COMPONENT SIDE

FOIL SIDE

Main Page
