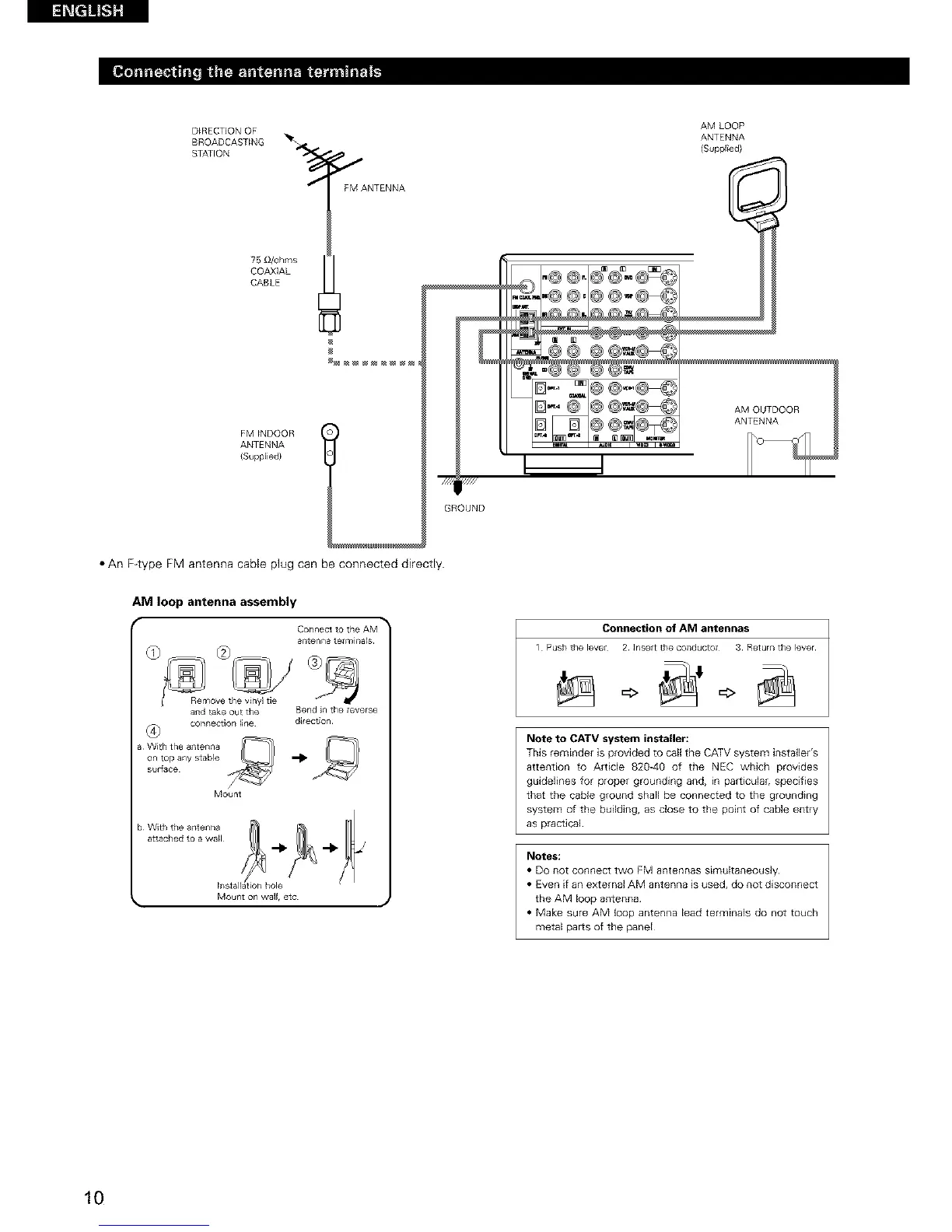

D_RECTiON OF
BROADCAST_NG
STATION
I
FM ANTENNA
75_ohms
COAXIAL
CABLE
AM LOOP
ANTENNA
(Suppl_ed}
FM_NDOOR
ANTENNA
(Supplied)
GROUND
AM OUTDOOR
ANTENNA
• An F4ype FM antenna cable plug can be connected directly.
AM loop antenna assembly
(_) _R e_move the v_nyl de
and take Out the
conne¢l_o[ _ _ir}e
a With the ar_tenr/a
on top any stable
su_faee
Mount
a_tenna tot mina,s
Bend in the teverse
direction
b With the antenna
attached to a wa_l
Connection of AM antennas
1 Push the level 2 ]nsett the collductol 3 Returll the _ever
Note to CATV system installer:
This reminder is provided to call the CATV system installer's
attention to Article 820-40 of the NEC which provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry
as practical
Notes:
• DOnot connect two FM antennas simultaneously
• Even if an external AM antenna is used, do not disconnect
the AM loop antenna
• Make sure AM loop antenna lead terminals do not touch
metal paris of the panel
10
