• When making connections, also refer to the operating instructions of the other components.
• The signals input to the color difference (component) video jacks are not output from the VIDEO output jack (yellow) or the S-Video output jack.
in addition, the video signals input to the VIDEO input (yellow) and SWideo input jacks are not output to the color difference (component) video
jacks.
• The AVR-2802/982'S on-screen display signals are not output from the color difference (component) video output jacks (MONITOR OUT).
• Some video sources with component video outputs are labeled Y, C8, CR, or Y, Pb, Pr, or Y, R-Y, B-Y. These terms all refer to component video
color difference output.
DVD player
v'°e°°°TI........ ]

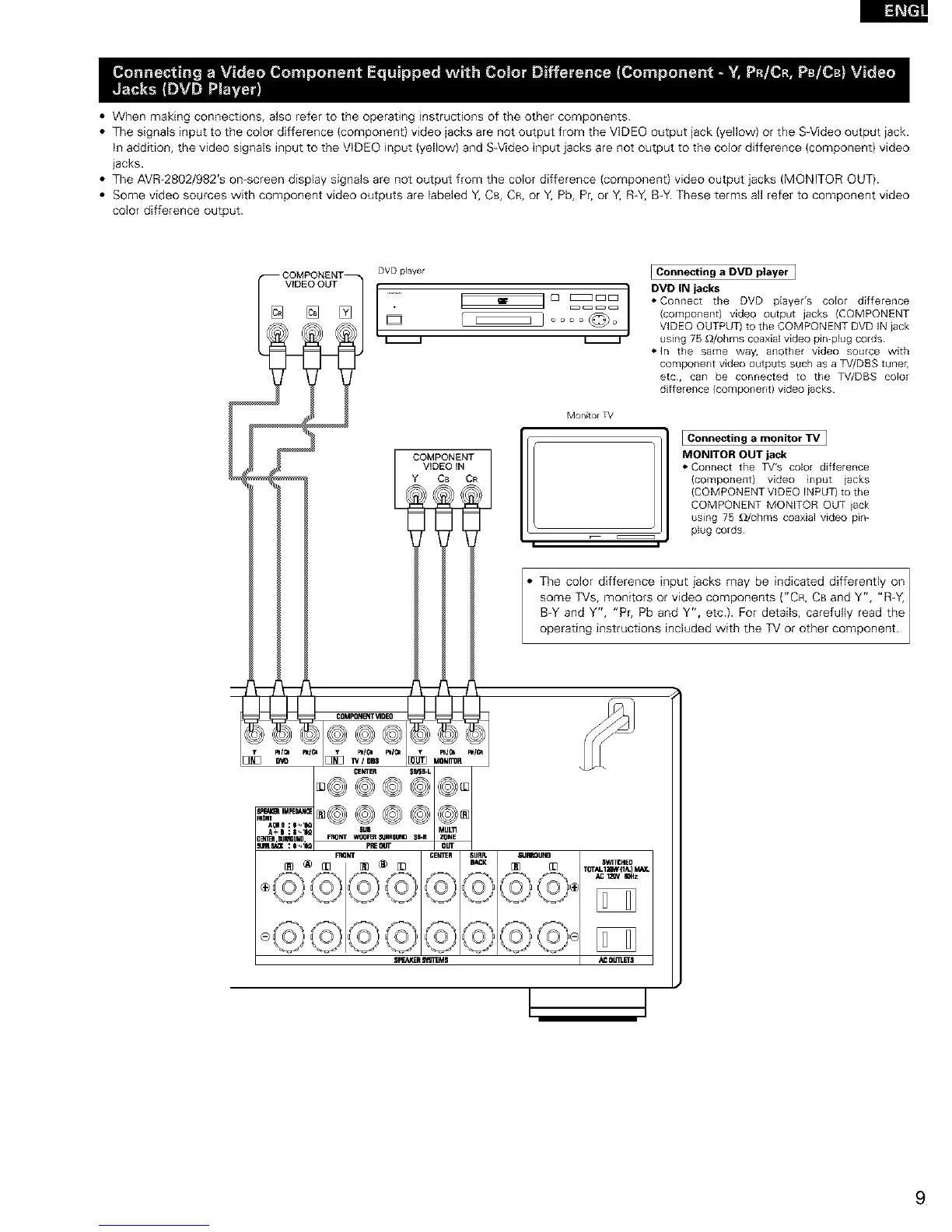

I Connecting a DVD player
DVD IN jacks
• Connect the DVD pEayer's coEor difference
(component} video output jacks (COMPONENT
VIDEO OUTPUT) to the COMPONENT DVD IN iack
using 75 _/ohms coaxial video pin-plug cords
• In the same way, another video source with
component video outputs such as a TV/DBS tuner,
etc, can be connected to the TV/DBS color
difference (component) video iacks
COMPONENT
VIDEO IN
Y CB OR
Mon_tol TV
Connecting a monitor TV 1
MONITOR OUT jack
• Connect the TV's color difference
Icomponentl video input iacks
ICOMPONENT VIDEO ENPUTI to the
COMPONENT MONITOR OUT iack
using 75 _/ohms coaxial video p_n-
plug cords¸
The color difference input iacks may be indicated differently on I
some TVs, monitors or video components ("CR, CB and Y", "R-Y, I
B-Y and Y", "Pr, Pb and Y", etc.). For details, carefully read the
operat ng nstruct ons nc uded w th the TV or other component.
To Next Page
