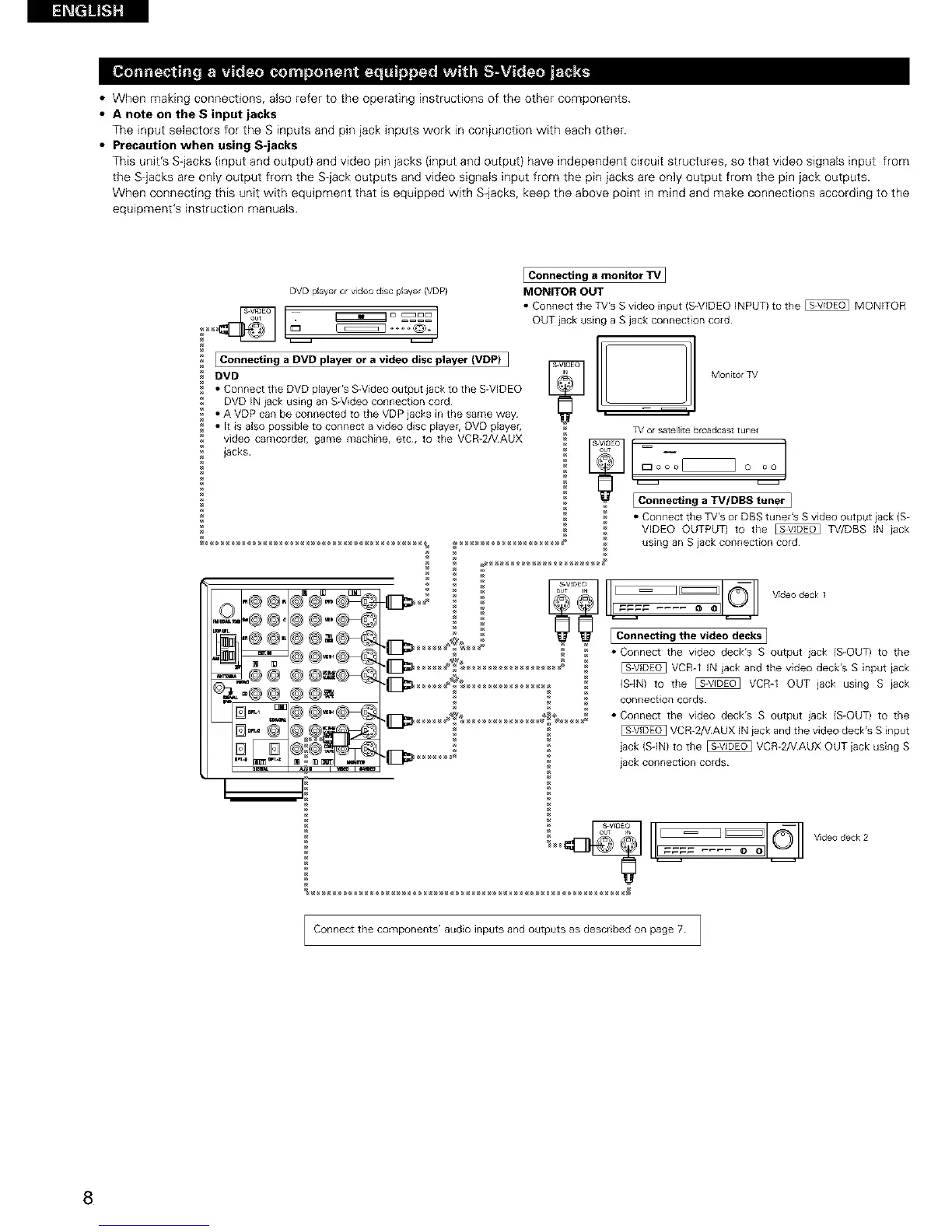

• When making connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and pin jack inputs work in conjunction with each other.
• Precaution when using S-jacks
This unit's S-jacks (input and output) and video pin jacks (input and output) have inde _endent circuit structures, so that video signals input from
the S-jacks are only output from the S-jack outputs and video signals input from the pin iacks are only output from the pin jack outputs.
When connecting this unit with equipment that is equipped with S jacks, keep the above )oint in mind and make connections according to the
equipment's instruction manuals.
DVD player or video disc player (VDP)
[ Connecting a DVD player or a video disc player (VDP) ]
DVD
• Connect the DVD player's S-Video output jack to the SWIDEO
DVD IN iack using an S-Video connection cord
• A VDP can be connected to the VDP jacks in the same way
• It is also possible to connect a video disc player, DVD player,
video camcorde game machine, etc, to the VCR-2/VAUX
jacks
Connecting a monitor TV I
MONITOR OUT
• Connect the TV's S video input (S-VIDEO INPUT) to the _ MONITOR
OUT iack using a S jack connection cord¸
E [wMontorTv
TV or satellite b¢oadcast tuner
I Connecting a TV/DBS tuner I
• Connect the TV's or DBS tuner's S video output iack {S-
VIDEO OUTPUT) to the _ TV/DBS IN iack
_H_H_H_ using an S jack connection cord
s v,oEo _
_ _ Vrdeodeck 1
iconn°ct,not.ev,deoO°o..I
_ * Connect the video deck's S output jack (S-OUT) to the
_ VCR_I IN jack and the video deck's S input iack
(SqN) to the _ VCR_I OUT jack using Siack
connection cords
• Connect the video deck's S output jack (S-OUT) to the
VCR-2N AUX IN iack and the video deck's S input
jack (SdN) to the _ VCR-2NAUX OUT iack using S
jack connection cords
Connect the components' audio inputs and outputs as described on page 7 I
Video deck 2
8
