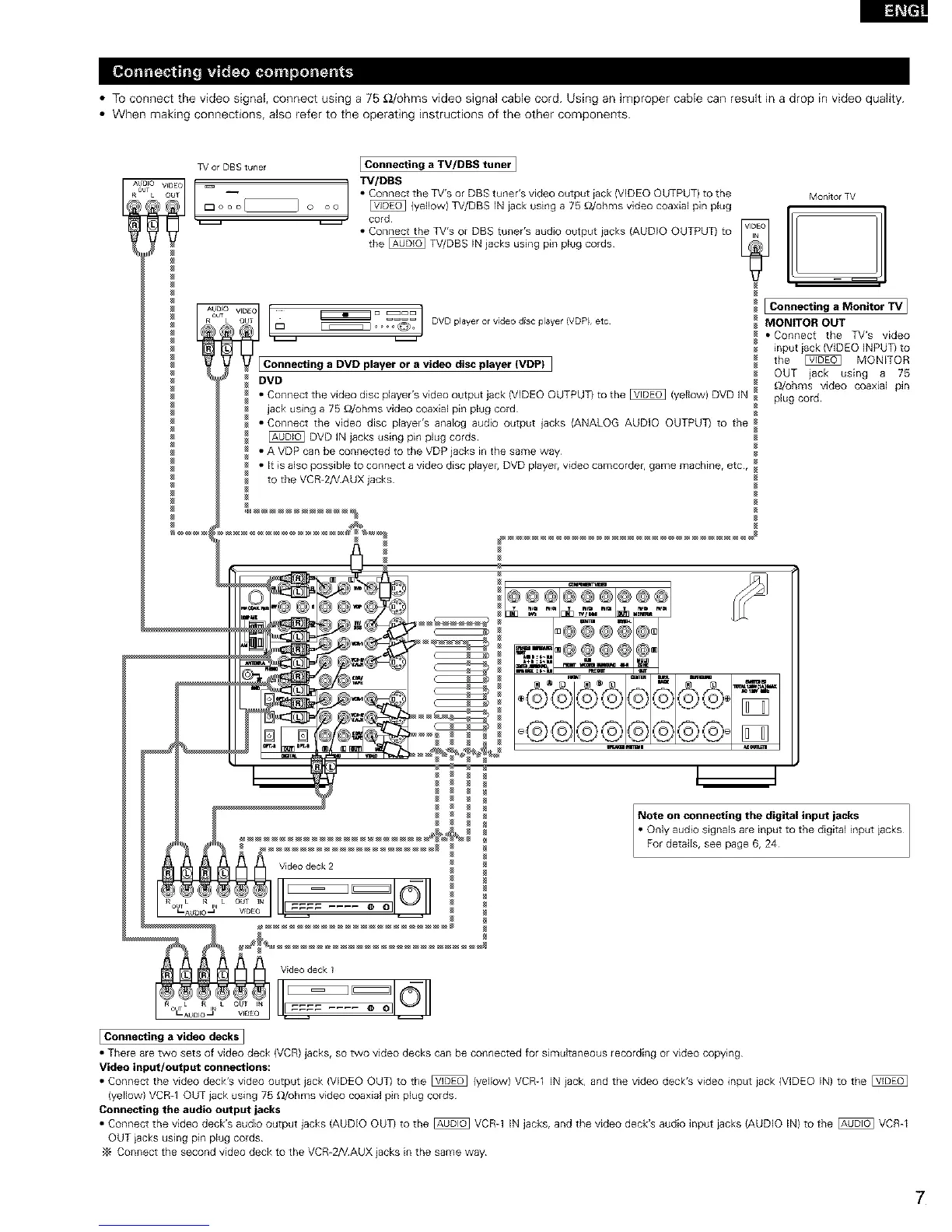

• TO connect the video signal, connect using a 75 _2/ohms video signal cable cord. Using an improper cable can result in a drop in video quality.
• When making connections, also refer to the operating instructions of the other components.
TV or DBS tunel I Connecting a TV/DBS tuner I
L O oo
VlOEO _ TV/DBS
ou _ • Connect the TV's or DBS tuner's video output iack {VIDEO OUTPUT) to the
I:_ o oo _ _ (yellow) TV/DBS IN iack using a 75 _Johms video coaxial pin plug
_ cord
• Connect the TV's or DBS tuner's audio output iacks (AUDIO OUTPUT) to
the _ TV/DBS IN jacks using pin plug cords
Connecting a DVD player ora video disc player (VDP)I
DVD
• Connect the video disc player's video output jack (VIDEO OUTPUT) to the _ (yellow) DVD IN
jack using a 75 _Johms video coaxial pin plug cord
• Connect the video disc player's analog audio output jacks {ANALOG AUDIO OUTPUT) to the
[_ DVD IN jacks using pin plug cords
• A VDP can be connected to the VDP jacks in the same way
• It is also possible to connect a video disc playel, DVD playel, video camcorder, game machine, etc,
to the VCR-2/VAUX jacks
Monitor TV
I Connecting a Monitor TV I
MONITOR OUT
• Connect the TV's video
input iack (VIDEO INPUT} to
the _ MONITOR
OUT jack using a 75
_/ohms video coaxial pin
plug cord¸
D_
o@C@©
Note on connecting the digital input jacks
• OnlYFordetails,aUdi°signalSseepageare6,input24to the digital input iacks
I Connecting a video decks]
• There are two sets of video deck (VCR) jacks, so two video decks can be connected for simultaneous recording or video copying
Video input/output connections:
• Connect the video deck's video output jack (VIDEO OUT) to the _ {yellow) VCR-1 IN iack, and the video deck's video input iack (VIDEO IN) to the
(yellow) VCR-1 OUT jack using 75 OJohms video coaxial pin plug cords
Connecting the audio output jacks
• Connect the video deck's audio output jacks (AUDIO OUT) to the _ VCR-1 IN jacks, and the video deck's audio input iacks (AUDIO IN) to the _ VCR-1
OUT iacks using pin plug cords
•_ Connect the second video deck to the VCR-2NAUX iacks in the same way
