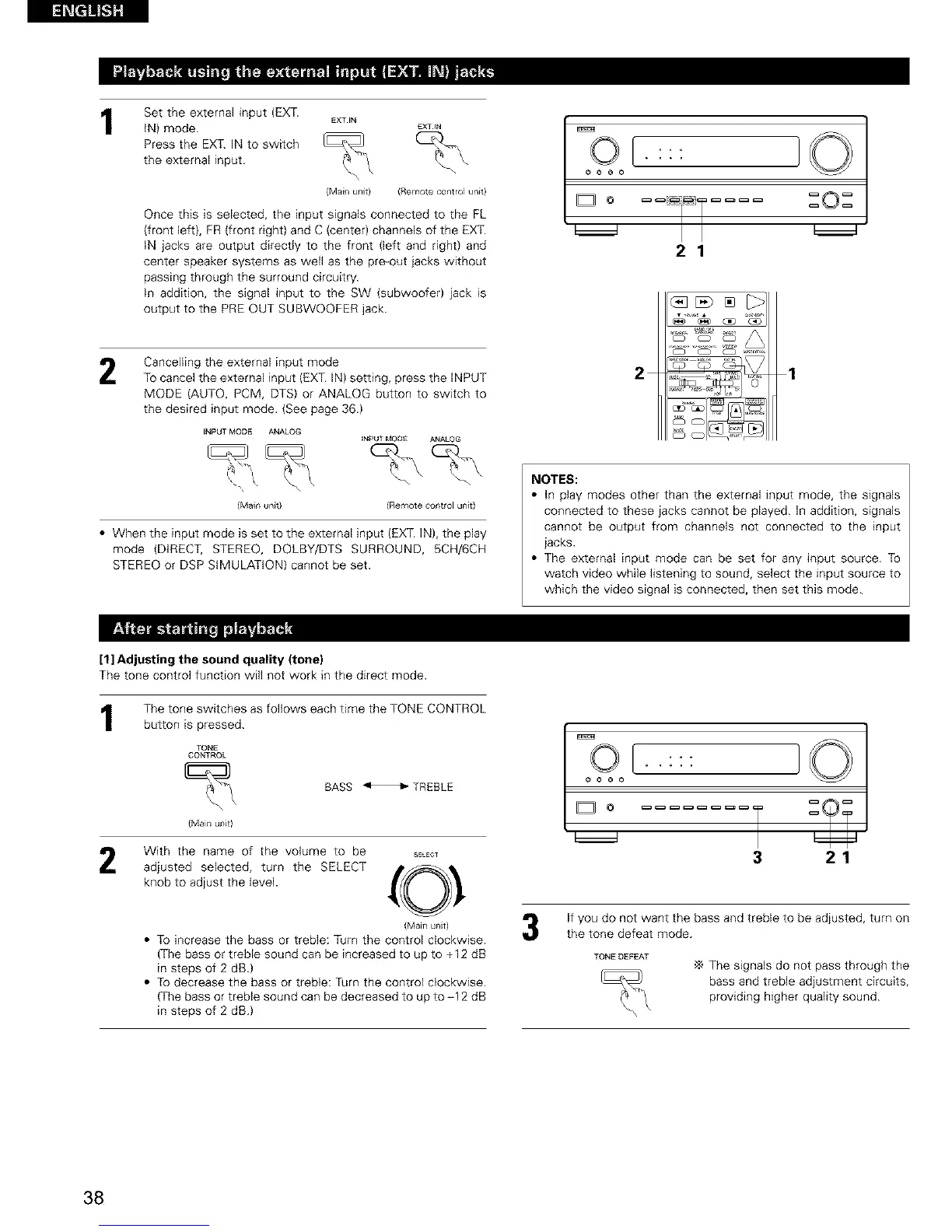

1
Set the external input (EXT.
IN} mode.
Press the EXT. IN to swkch
the external input.
EXT_N
EXT EN
{Main unit} (Remote control unit}
Once this is selected, the input signals connected to the FL
(front left), FR (front nght) and C (center) channels of the EXT.
IN jacks are output directly to the front (left and right) and
center speaker systems as well as the pre-out jacks without
passing through the surround circuitry.
in addition, the signal input to the SW {subwoofer) jack is
output to the PRE OUT SUBWOOFER jack.
2
Cancelling the external input mode
To cancel the external input (EXT. IN) setting, press the INPUT
MODE (AUTO, PCM, DTS) or ANALOG button to switch to
the desired input mode• (See page 36•)
INPUT MODE ANALOG
(Main unit)
INPUT MODE ANALOG
%%
{Remote contlo_ unit)
• When the input mode is set to the external input (EXT. IN), the play
mode (DIRECT, STEREO, DOLBY/DTS SURROUND, 5CH/6CH
STEREO or DSP SIMULATION) cannot be set.
0[,,,
@ o o o
D_
zOZ
2 1
2 1
NOTES:
• In play modes other than the external input mode, the signals
connected to these jacks cannot be played. In addition, signals
cannot be output from channels not connected to the input
jacks•
• The external input mode can be set for any input source. To
watch video while listening to sound, select the input source to
which the video signal is connected, then set this mode.
[1] Adjusting the sound quality (tone)
The tone control function will not work in the direct mode•
The tone switches as follows each time the TONE CONTROL
button is pressed.
TONE
CONTROL
BASS H TREBLE
2
{Main unit)
With the name of the volume to be SELECT
adjusted selected, turn the SELECT D'_&
knob to adjust the level.
(Main unit)
• To increase the bass or treble: Turn the control clockwise.
(The bass or treble sound can be increased to up to +12 dB
in steps of 2 dB.)
• To decrease the bass or treble: Turn the control clockwise.
(The bass or treble sound can be decreased to up to -12 dB
in steps of 2 dB.)
O[::: ]
@ o o o
Z
3 21
If you do not want the bass and treble to be adjusted, turn on
the tone defeat mode.
TONEDEFEAT
The signals do not pass through the
bass and treble adjustment circuits,
providing higher quality sound.
38
