Denon AVR-S730H Service Manual

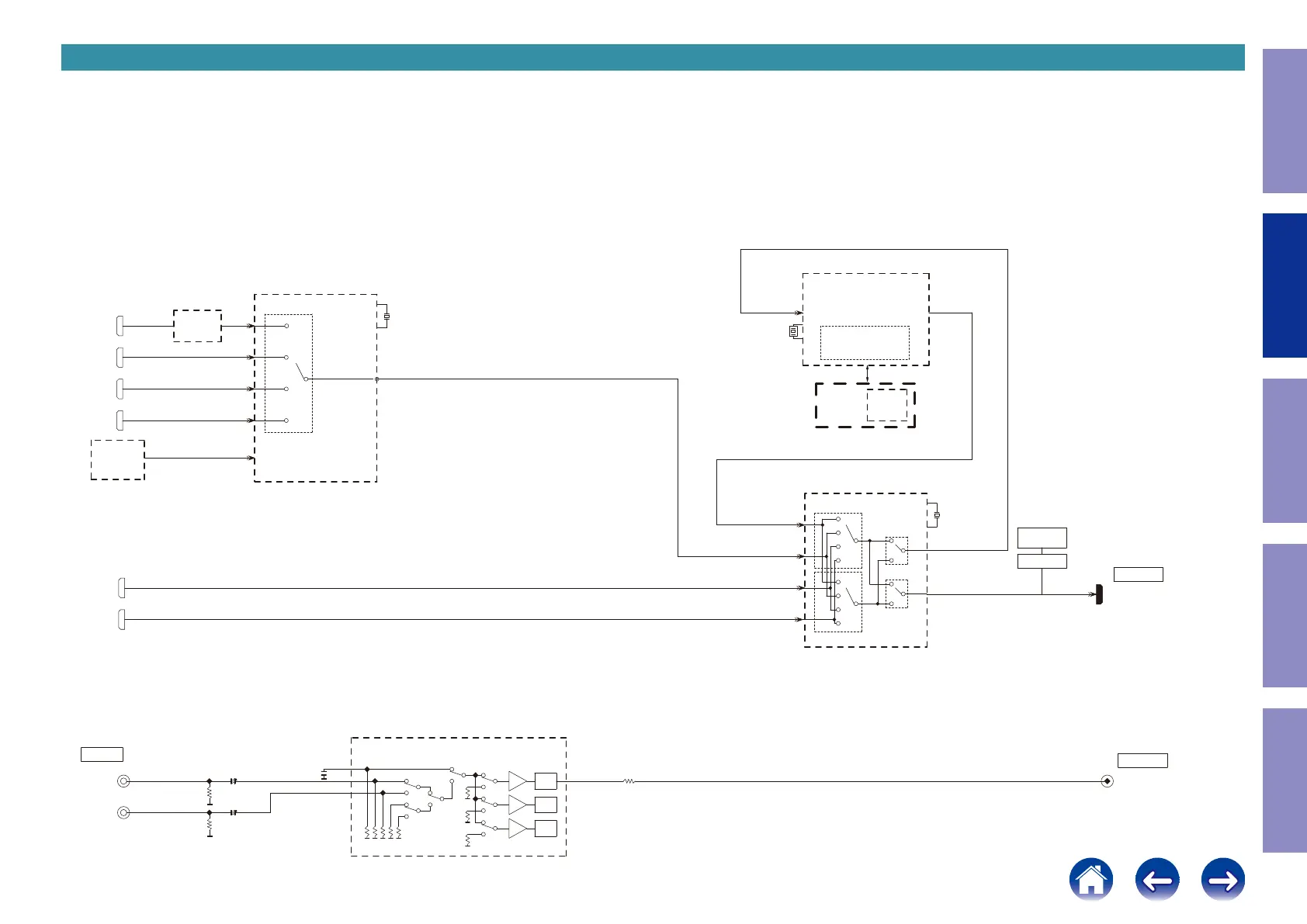

VIDEO DIAGRAM
SUB
MAIN
6dB
75ohm
Driver
6dB
75ohm
Driver
6dB
75ohm
Driver
20K
20K
20K
20K
MEDIA PLAYER
CVBS IN
CBL/SAT
NJM2595
CVBS OUT
MONITOR OUT
(DVD)
(Blu-ray)
F-HDMI IN6
HDMI IN1
HDMI IN2
HDMI IN3
(AUX)
(CBL/SAT)
HDMI RX(MN864787)
P3 RX
P2 RX
P1 RX
P0 RX
TXPORT0
AD8195
Buffer
(MEDIA PLAYER)
(GAME)
HDMI IN4
HDMI IN5
HDMI TX(MN864788)
P3 RX
P1 RX
P0 RX
P0 TX
P1 TX
ADV7623
TRANSCEIVER
28.6363MHz
S.FLASH
32M/64M
OTHER : 32M
E2 : 64M
LEGO_RGB DATA(24bit)
LEGO
AVRS730H/X1400H VIDEO BLOCK
OSD Block
P1 RX
P0 RX
HDMI OUT
MONITOR OUT
P2 RX
RXA
27.000MHz
27.000MHz
CEC
IC751
CPU
39
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-S730H Specifications

General

Channels	7.2
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	110W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)	165W
HDMI Inputs	6
HDMI Outputs	1
Dolby Atmos	Yes
DTS:X	Yes
DTS Virtual:X	Yes
Wi-Fi	Yes
Bluetooth	Yes
HEOS Multi-room	Yes
4K Ultra HD Pass-through	Yes
HDR Support	Yes (HDR10, Dolby Vision, HLG)
Auto Speaker Calibration	Audyssey MultEQ
AirPlay	Yes (AirPlay 2)
Internet Radio	Yes
Phono Input	No
Ethernet Port	Yes
Power Output per Channel	75W (8 ohm, 20Hz-20kHz, 0.08% 2ch Drive)
USB Input	1 (Front)
