Denon AVR-S730H Service Manual

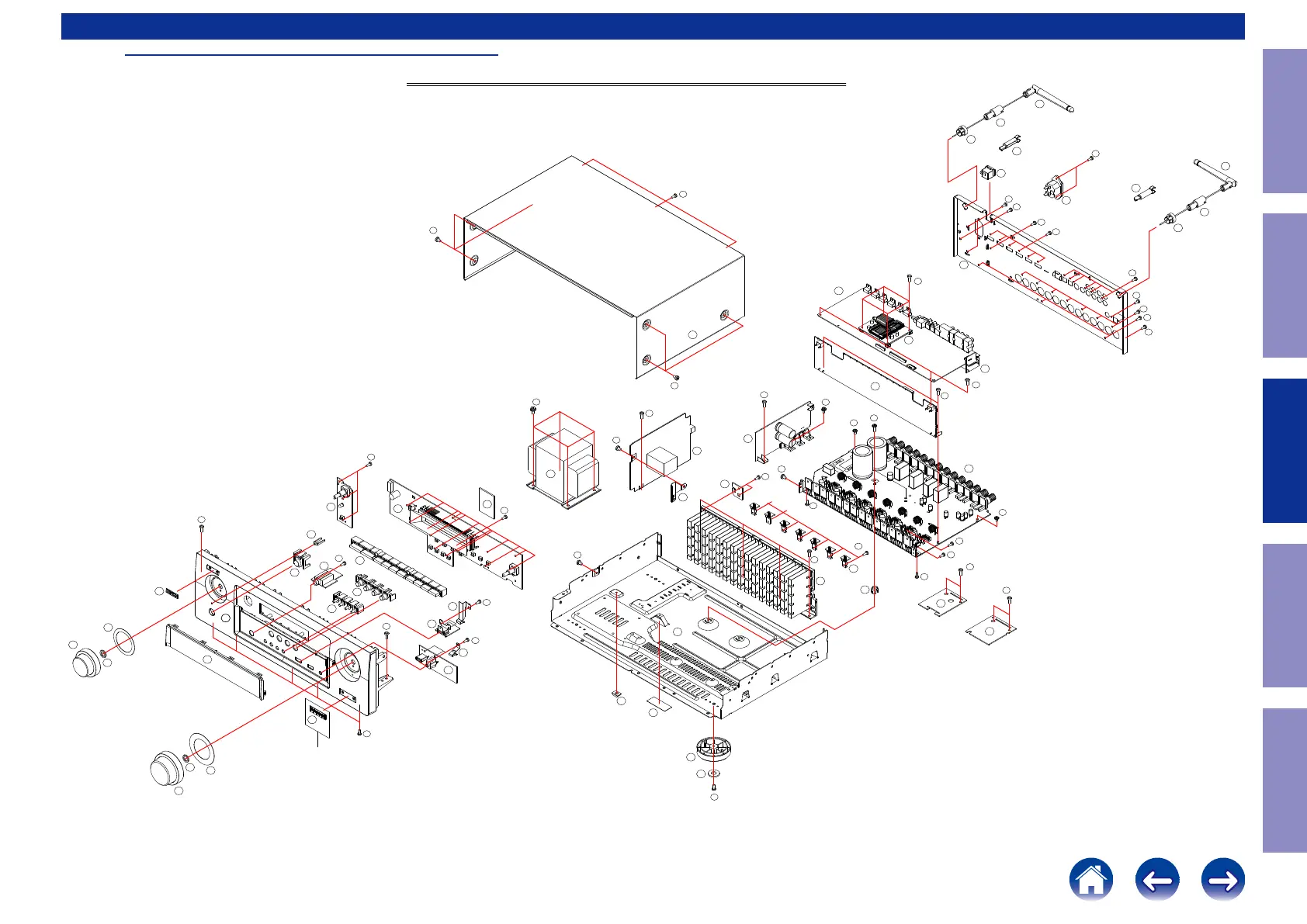

EXPLODED VIEW
F1
F2
F3
F4
F5
F6
F8
F9
F10
F11
F12
F13
F14
M1
M2
M3
M4
M5
M6
M7
M9
M11
M12
M13
M14
M11
M12
M13
M14
M15
M8
M10
P1
P2
P4
P3
P5
P6
P7
P9
P8
P10
P11
P12
P13
P15
P16
S5
x5
S4
x3
S4
x2
S4
x3
S13
x1
S4
x13
S10
x4
S1
x1
S1
x1
S1
x1
S1
x1
S11
x3
S7
x1
S8
x2
S7
x1
S1
x1
S1
x1
S12
x14
S4
x2
S12
x7
S4
x2
S7
x4
S6
x3
S9
x3
S9
x3
S4
x2
S2
x2
S6
x1
S3
x2
S3
x6
S6
x6
S3
x2
S6
x7
S6
x3
S6
x1
AVRS730H/X1400H EXPLODED VIEW
S7
x1
S7
x1
S2
x4
S4
x2
P18
F15
S3
x2
P14
S2
x4
F16
F16
F7
S7
x1
S7
x1
F17
ONLY BKE3
S6
x2
P17
z
z
s
Parts List :
http://dmedia.dmglobal.com/Document/DocumentDetails/23150
WARNING:
Parts marked with this symbol
z
have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
62
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-S730H Specifications

General

Channels	7.2
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	110W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)	165W
HDMI Inputs	6
HDMI Outputs	1
Dolby Atmos	Yes
DTS:X	Yes
DTS Virtual:X	Yes
Wi-Fi	Yes
Bluetooth	Yes
HEOS Multi-room	Yes
4K Ultra HD Pass-through	Yes
HDR Support	Yes (HDR10, Dolby Vision, HLG)
Auto Speaker Calibration	Audyssey MultEQ
AirPlay	Yes (AirPlay 2)
Internet Radio	Yes
Phono Input	No
Ethernet Port	Yes
Power Output per Channel	75W (8 ohm, 20Hz-20kHz, 0.08% 2ch Drive)
USB Input	1 (Front)
