Denon AVR-X1200W Service Manual

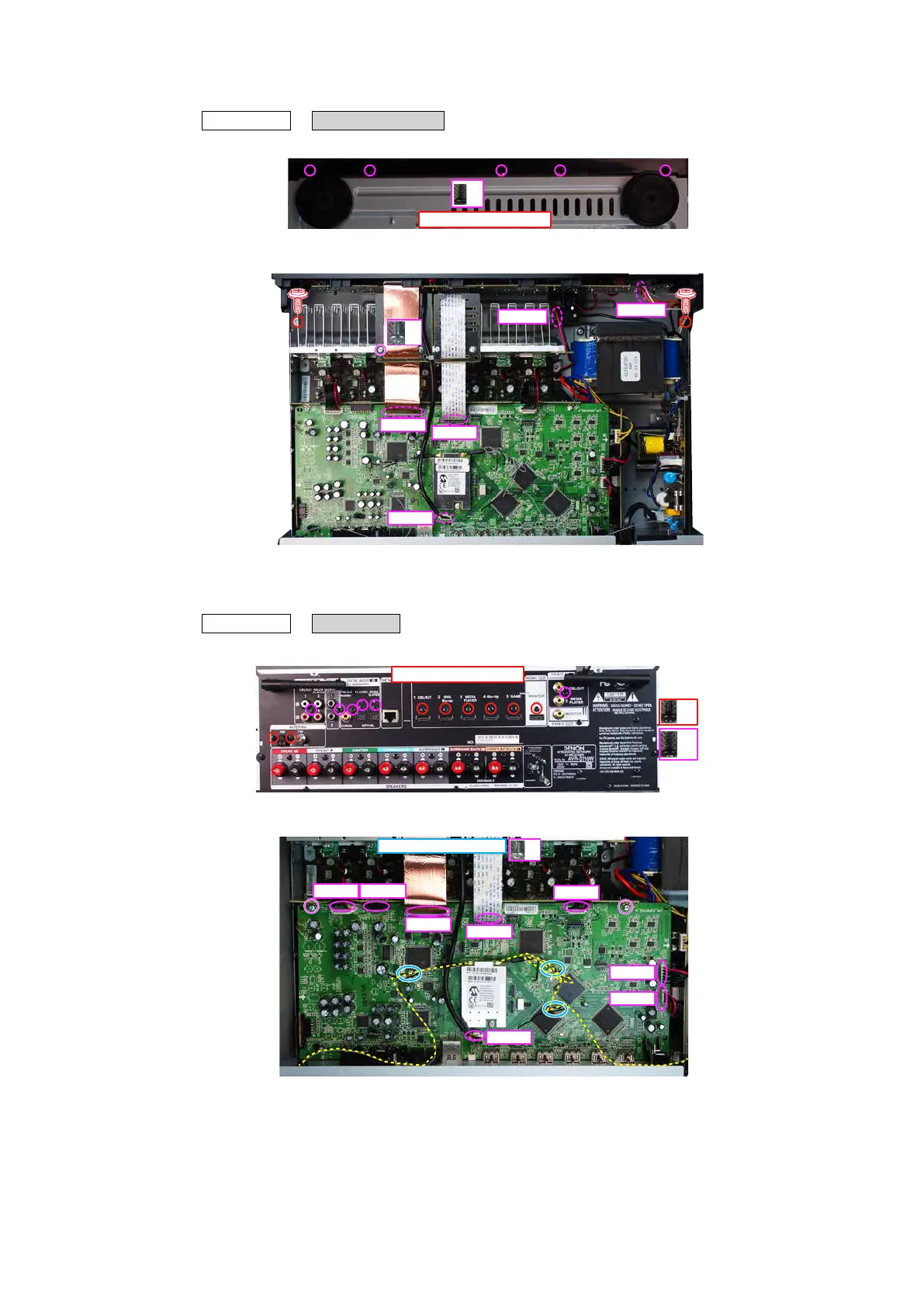

1. FRONT PANEL ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDERs and connector wires. Remove the FFC.
2. DIGITAL PCB
Proceeding : TOP COVER
→
DIGITAL PCB
(1) Remove the screws.
(2) Remove the CORD HOLDERs and connector wires. Remove the FFC. Remove the screws.
View from the bottom
x5
FFC
FFC
CN804
CN102
CN104
x1
Shooting direction: A
x8
x6
FFC
FFC
CN804
CN823
CN741
CN762
CN822CN761
x2
CORD HOLDER x 3
17

Denon AVR-X1200W Specifications

General

HDMI in	6
AC (power) in	Yes
Composite video in	2
USB ports quantity	1
Digital audio coaxial in	0
Receiver type	-
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (20-20KHz@8 Ohm)	145 W
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify
Product color	Black
Audio decoders	DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	430 W
Connectivity technology	Wired
Optical drive included	No
Audio formats supported	AIFF, ALAC, FLAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8500 g
