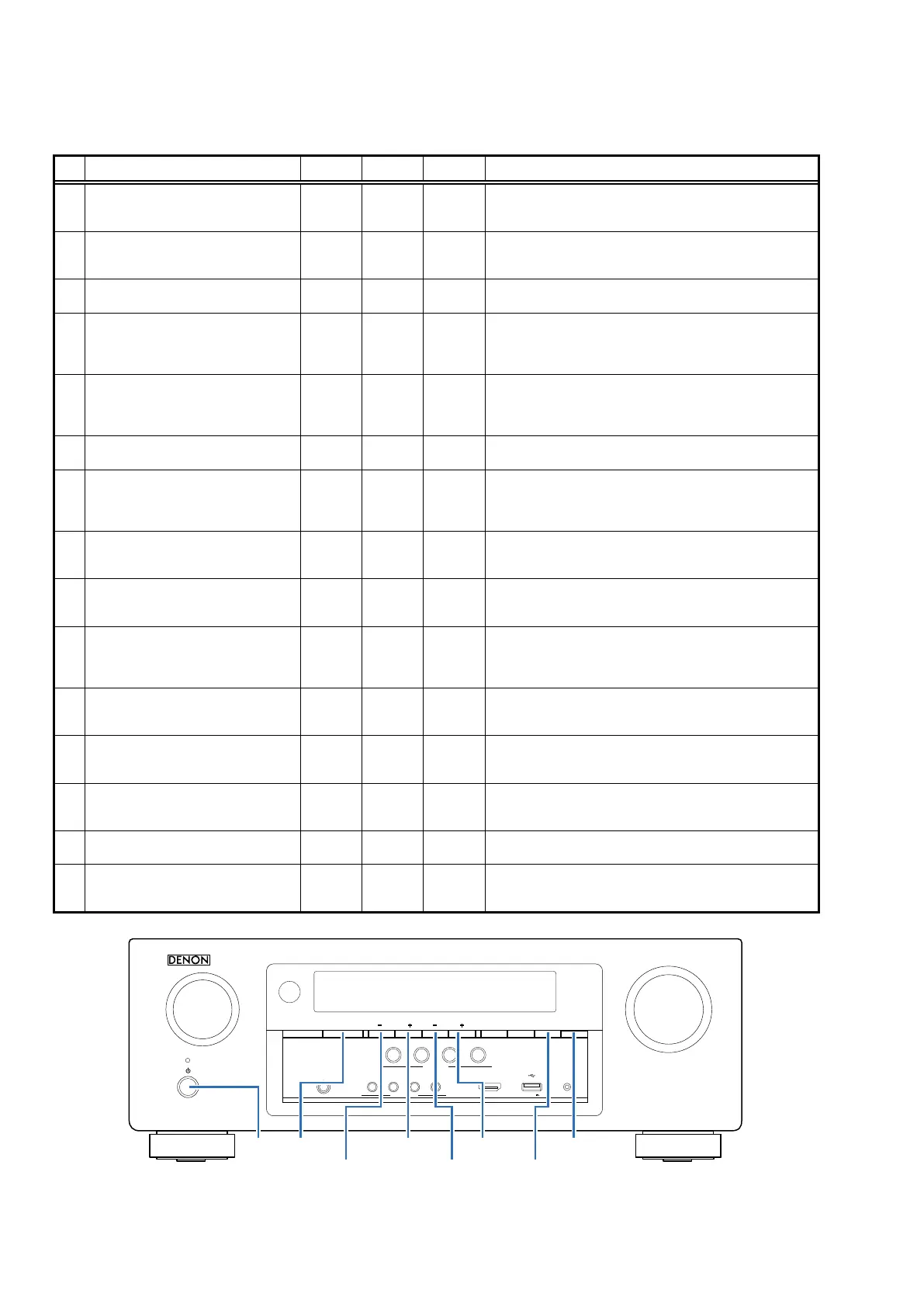

Special mode setting button (for AVR-S710W)
b
No. 1 - 6, 9 : While holding down buttons "
A
", "
B
" and "
C
" simultaneously, press the power button to turn on the power.
b
No. 7, 8 : While the power is on, hold down buttons "
A
" and "
B
" for at least 3 seconds .
b
No. 10 : While holding down buttons "
A
" and "
B
" simultaneously, insert the AC plug into the wall outlet to turn on the power.
No. Mode Button A Button B Button C Descriptions
1
Version Display
(u-COM / DSP Error Display)
DIMMER STATUS -
Displays the version of rmware such as the main rmware or DSP.
Errors that have occurred are displayed.
(See page 21)
2
Selecting the Mode for Service-related
TUNER
PRESET CH
+
TUNE - TUNE +
This is a display for turning on each service-related mode.
Service-related modes: No. 2-1 - No. 2-5
2-1
Protection history display mode - -
Displays the protection occurrence history.
(See page 44)
2-2
Check the Video/Audio path Mode - -
This is a special mode for service conrmation used during repair
work to simplify the conrmation work for the Audio channel /
video channel.
(See page 27)
2-3
Remote ID Setup Mode - -
If there are multiple DENON AV receivers in the same area, this
mode prevents other AV receivers from being operated concur-
rently with this device.
(See page 48)
2-4
TUNER STEP Mode - -
Enables reception STEP of the ANALOG TUNER to be changed.
(See page 47)
2-5
Operation Info Mode - -
Displays the accumulated operating time of the unit, the number
of times the power was switched on, and the number of occurrenc-
es of each protection.
(See page 46)
3
User Initialization Mode
TUNER
PRESET CH
-
TUNER
PRESET CH
+
-
Initializes backup data.
(Settings for the Installer Setup are not initialized.)
4
Factory Initialization Mode
TUNER
PRESET CH
+
TUNE - -
Initializes backup data.
(The settings for the Installer Setup is also initialized.)
5
PANEL / REMOTE LOCK Selection Mode
ZONE2
SOURCE
TUNER
PRESET CH
+
-
Start this unit in the PANEL/REMOTE LOCK selection mode so that
PANEL LOCK and Remote Lock can be switched between ON and
OFF.
(See page 25)
6
Protection Pass Mode
ZONE2
SOURCE
TUNER
PRESET CH
+
TUNE +
Enables the power to be turned on when protection detection is
disabled.
(See page 49)
7
CY920 Reboot Mode
TUNER
PRESET CH
-
TUNER
PRESET CH
+
- The CY920 is restarted after CY920 hang up.
8
CY920 Initialization Mode
TUNER
PRESET CH
+
TUNE - -
Enter this mode only after replacing Flash for CX870 / CY920 and
rewriting the rmware.
9
USB Update Mode
ZONE2
SOURCE
TUNE + - Switches this unit to USB Update mode.
10
Forced USB All Device Write Mode TUNE +
ZONE2
SOURCE
-
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
(See page 56)
MASTER VOLUME
SOURCE SELECT
BAND MODE DIMMER STATUSTUNEZONE 2 ON/OFF ZONE 2 SOURCE
TUNER
PRESET CH
CBL/SAT
3
4
ONLINE
1
GAME
2
DVD/Blu-ray
QUICK SELECT
SETUP MICAUX - HDMI
5V/1A
PHONES
MOVIE MUSIC GAME PURE
SOUND MODE
TUNE
DIMMER
STATUSZONE2
SOURCE
TUNE +
X
TUNER
PRESET CH +
TUNER
PRESET CH
20
