Denon AVR-X1200W Service Manual

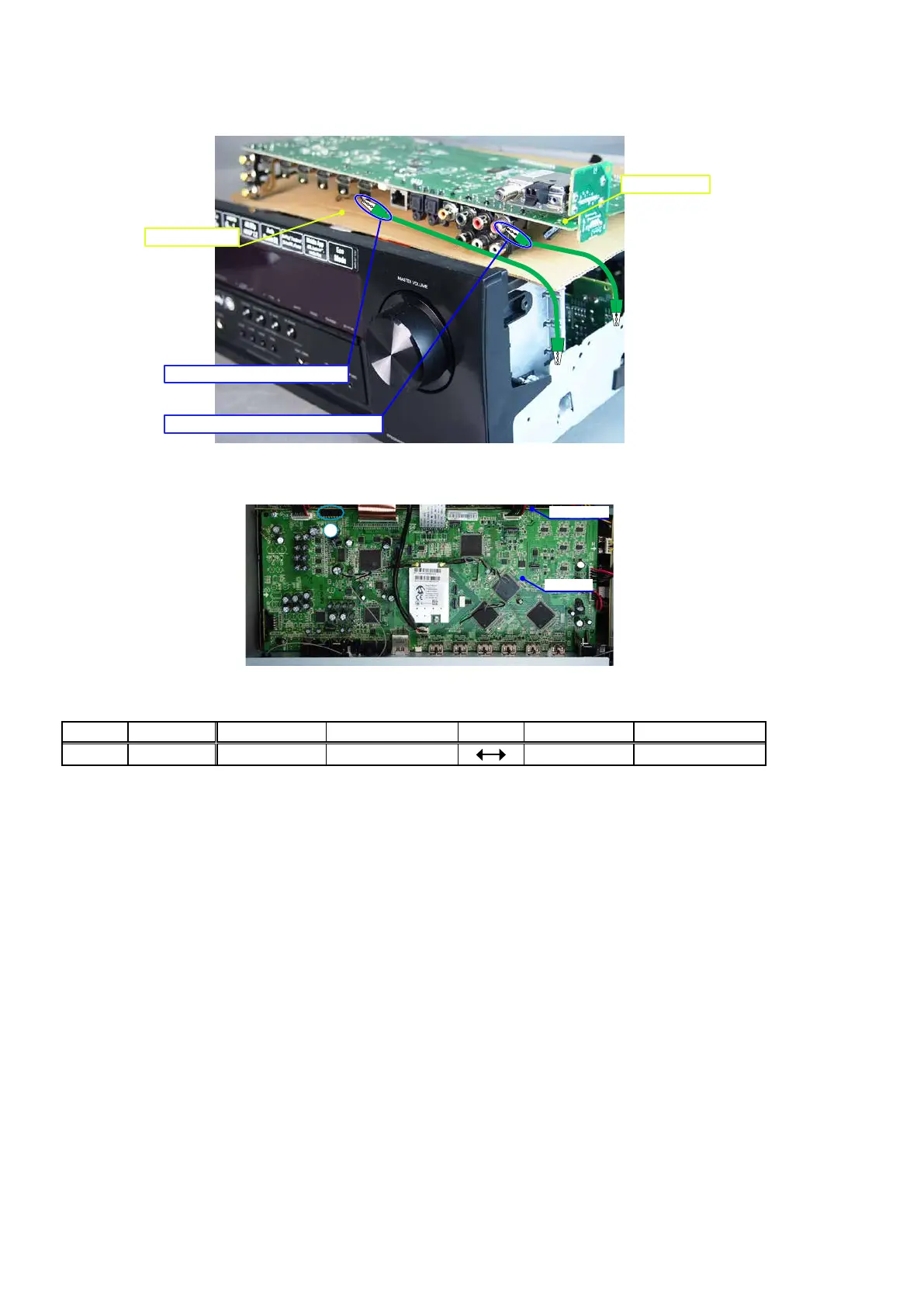

(3) Remove the HDMI PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the HDMI PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CN201 DIFF-AMP
CN822 DIGITAL
PCB DIGITAL
Insulation sheet
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSIT CONNECTOR
DIFF-AMP
DIGITAL
1
52

Denon AVR-X1200W Specifications

General

HDMI in	6
AC (power) in	Yes
Composite video in	2
USB ports quantity	1
Digital audio coaxial in	0
Receiver type	-
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (20-20KHz@8 Ohm)	145 W
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify
Product color	Black
Audio decoders	DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	430 W
Connectivity technology	Wired
Optical drive included	No
Audio formats supported	AIFF, ALAC, FLAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8500 g
