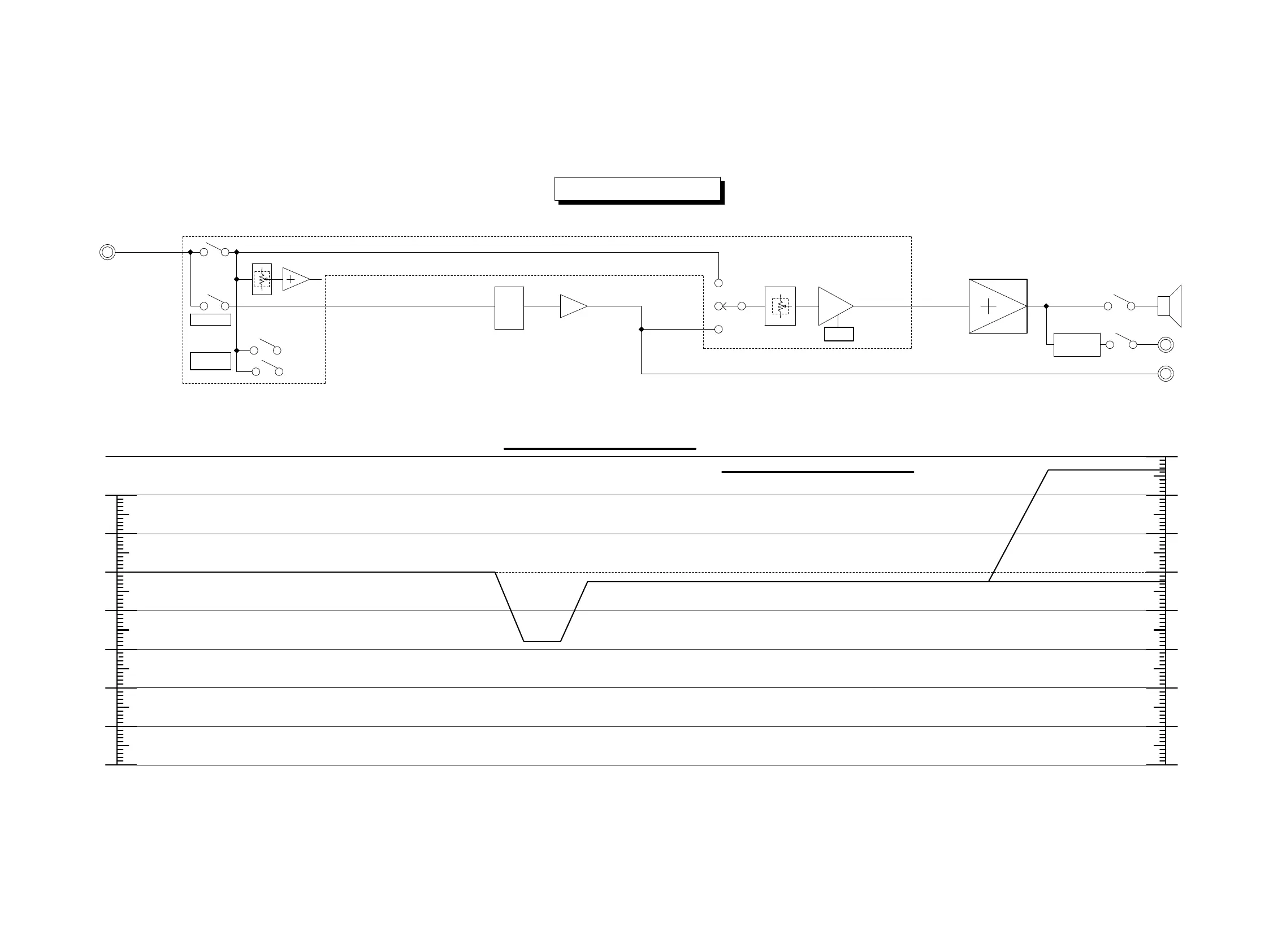

LINE IN 0dB
(200mV)
-10dB
-20dB
-40dB
-30dB
+10dB
+20dB
LINE IN
H/P OUT
SPK OUT
NJU72340A
FRONT
ZONE2
BD3812F
-50dB
0dB (200mVrms)
-10dB
-20dB
-40dB
-30dB
+10dB
+20dB
-50dB
+30dB
+29dB
4.27Vrms/8ohm
277mVrms/33ohm
SPK OUT
GAIN
ADJ.
PREOUT 150mVrms
H/P OUT
POWERAMP GAIN
ZONE2 SEL.
REC INH.
ANALOG
NJU72340 MAX.OUTPUT 3.8Vrms
NJM8080 MAX.OUTPUT 7.78Vrms
-18dB
+15dB
NOT USE
ZONE2 OUT
