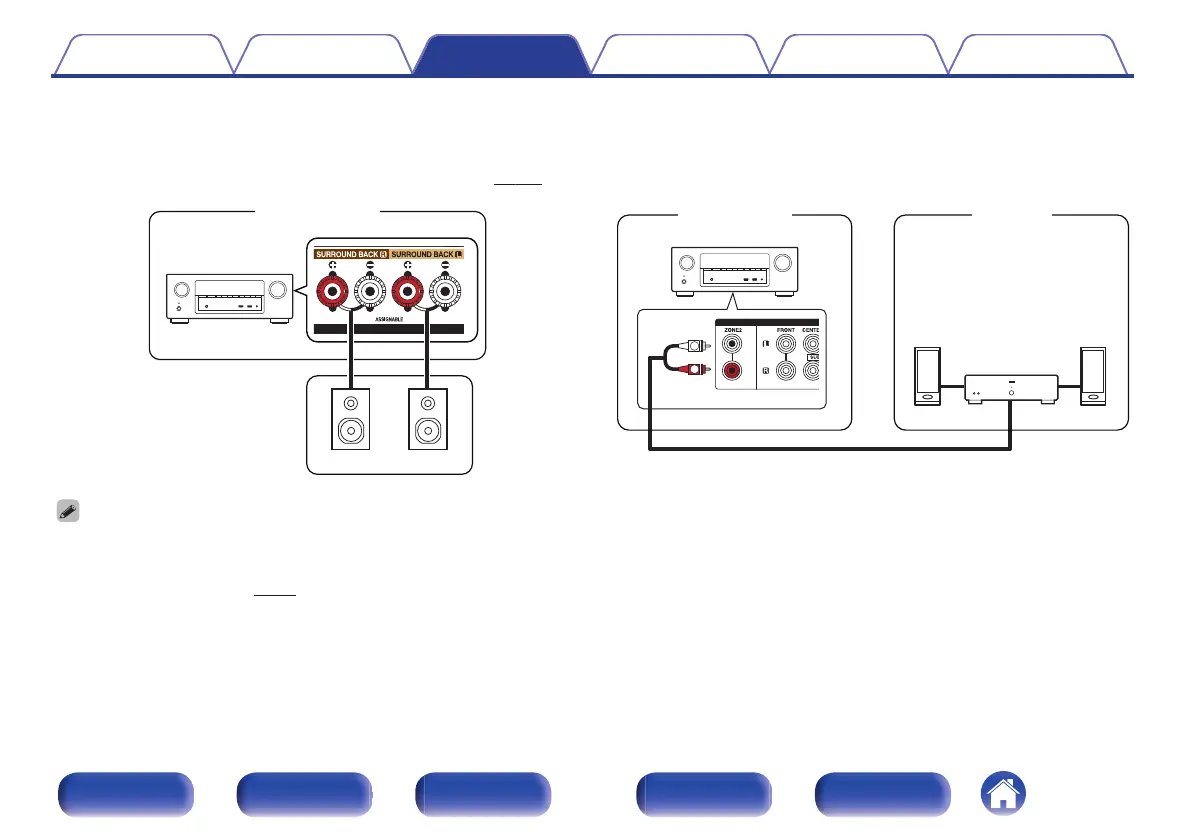

Connection 2: Connection through the speaker
output terminals
When “Assign Mode” is set to “ZONE2” in the menu, ZONE2 audio is
output from the SURROUND BACK speaker terminal. (v p. 196)
.
MAIN ZONE
This unit
ZONE2
(R)
(L)
0
The analog audio signal and the 2-channel PCM signal input from HDMI connector
or digital connectors (OPTICAL/COAXIAL) can be played back in ZONE2.
0
If you want to play back HDMI signals other than 2-channel PCM in ZONE 2, set
“HDMI Audio” to “PCM”. (v p. 220) The output from a device connected to the
input source selected for ZONE2 can be automatically converted to 2-channel
PCM.
In this case, the MAIN ZONE audio will also be converted to 2-channel PCM if the
MAIN ZONE and ZONE2 are set to the same input source. However, depending
on the playback device, the playback signal may not be converted to PCM even if
this setting is configured.
o
Connection 3 : Connection using an external
amplifier
The audio signals of this unit’s ZONE2 audio output connectors are
output to the ZONE2 amplifiers and played on these amplifiers.
.
MAIN ZONE ZONE2
This unit
Power amplifier
AUX IN
R
L
