Denon AVR-X4000 Service Manual

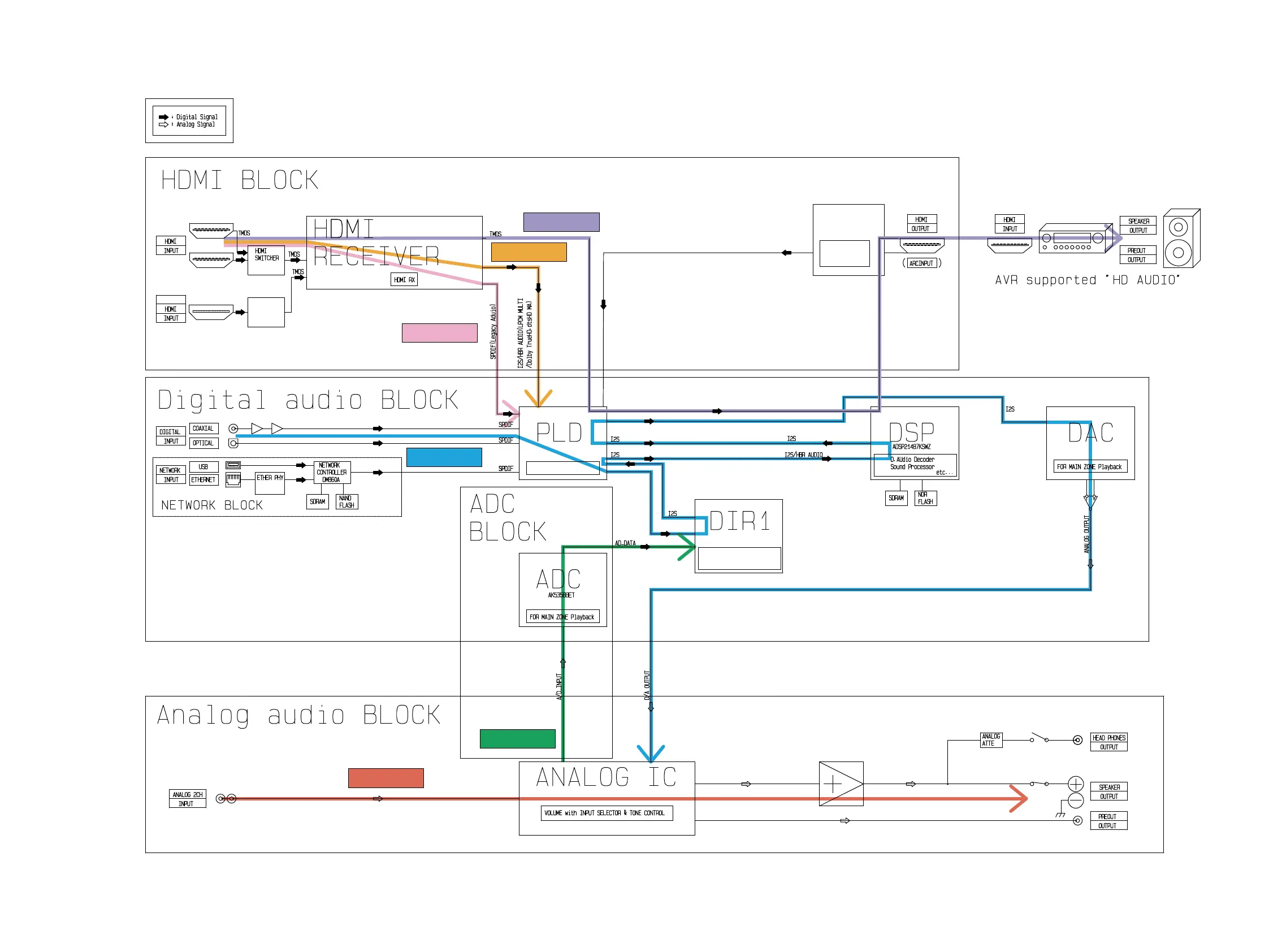

Refer to troubleshooting "4.1. AUDIO CHECK".
CHECK1
CHECK3
CHECK2
CHECK4
CHECK5
CHECK6
ADV7850
TMDS
BUFFER
AD8195
ARC(SPDIF)
EPM240T100C5N
SPDIF/I2S SELECTOR
R2A15220FP & R2A15218FP
LC89057W-VF4A-E
DIGITAL AUDIO
INTERFACE RECEIVER
FRONT
SPDIF
ADV8003
HDMI
TRANSMITTER
with scaler
video encoder
OSD etc...
Sil9575
LAN8720A
PCM1690DCAR
x2
AUDIO CHECK PASS
111

Denon AVR-X4000 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.008 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	7
AC (power) in	Yes
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
RDS features	PTY, TP
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Internet radio services supported	Spotify, vTuner
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Color depth	24 bit
Aspect ratio	4:3, 16:9
Product color	Silver
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, DTS-HD Master Audio
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	12300 g
