2. HEAT SINK ASSY
Proceeding : CABINET TOP
→
HEAT SINK ASSY

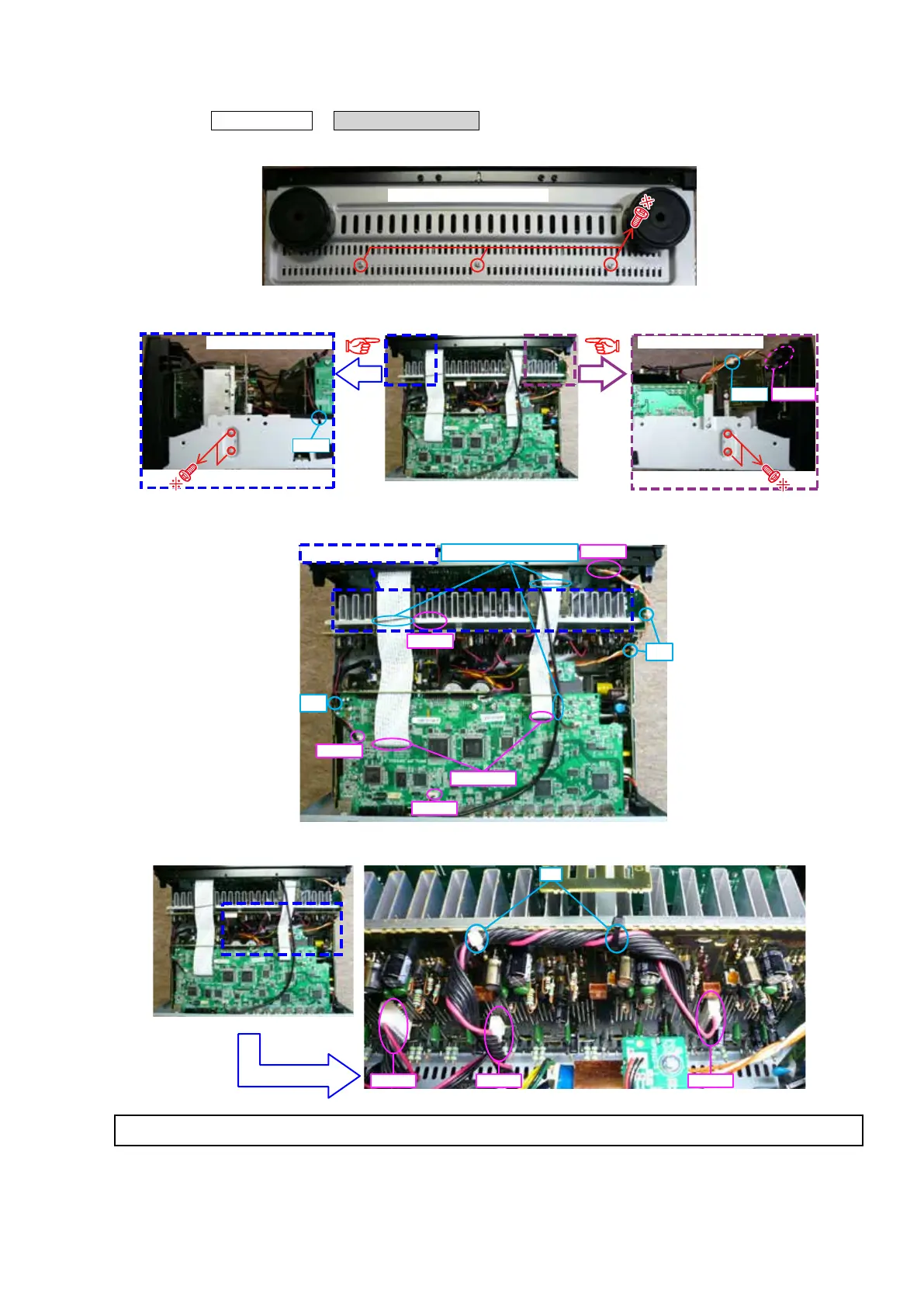

(1) Remove the screws.
(2) Cut the wire clamp band, then remove the screws. Disconnect the connector wires.
(3) Cut the wire clamp band, then disconnect the connector wire and FFC cables .
(4) Cut the wire clamp bands, then disconnect the connector wires.
View from the bottom
cut
CN602
cut
Shooting direction: D
Shooting direction: C
FFC cable
CN321
CN602
CN704
CN461
STYLE PIN : Loosen
cut
STYLE PIN : Loosen
cut
CN701 CN703 CN702
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HEAT SINK ASSY.
