Denon AVR-X4000

3. DIGITAL UNIT ASSY
Proceeding : CABINET TOP
→

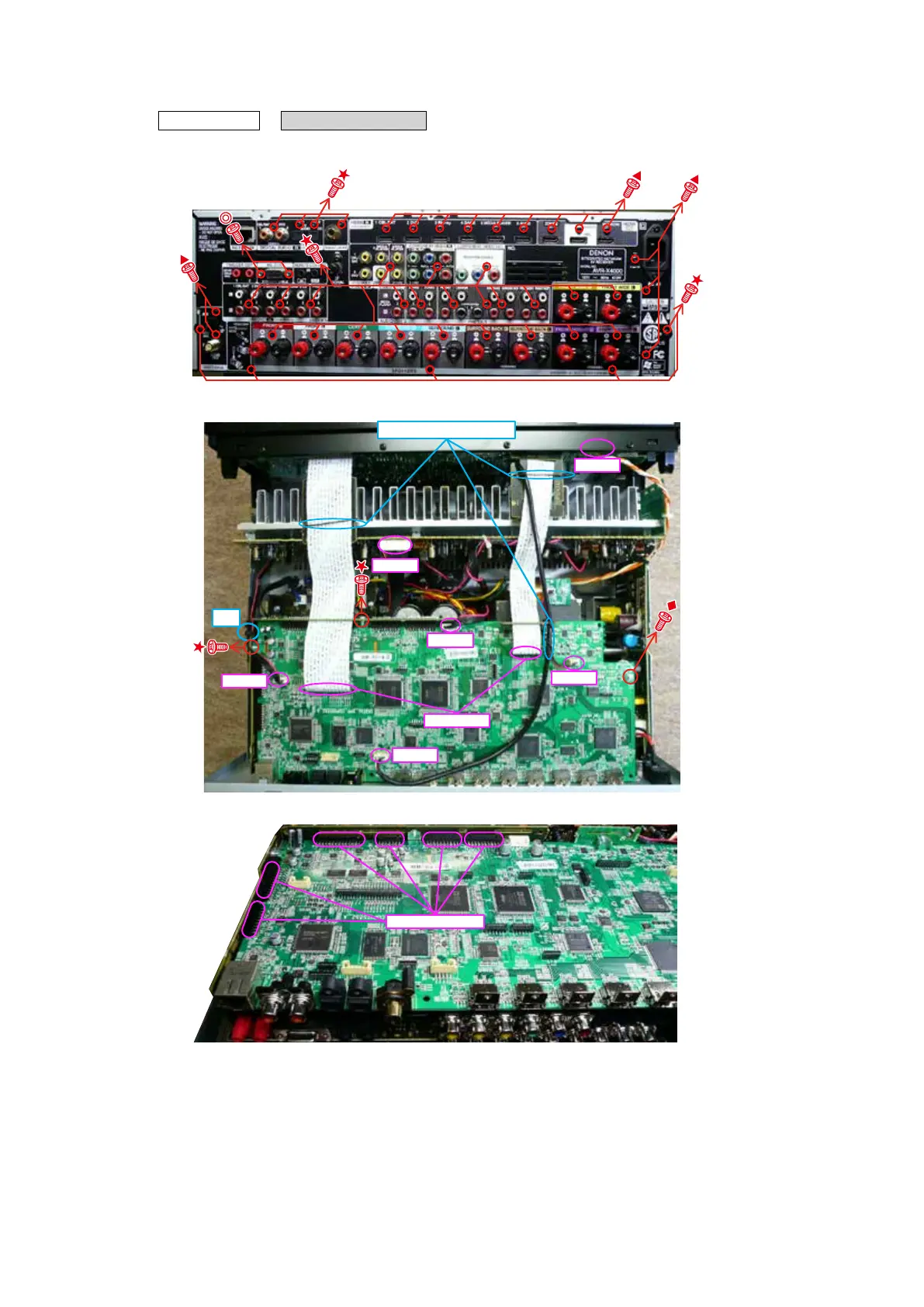

DIGITAL UNIT ASSY
(1) Remove the screws, then remove the BACK PANEL and the DIGITAL BRACKET.
(2) Cut the wire clamp band, then remove the screws. Disconnect the connector wires and FFC cables.
(3) Disconnect the connector board.
Shooting of photograph: A
FFC cable
CN321
CN602
CN704
CN461
CN903
CN203
STYLE PIN : Loosen
cut
Board to board
16
