Denon AVR-X520BT Service Manual

103
TOP268VG(SMPS:IC601)
3

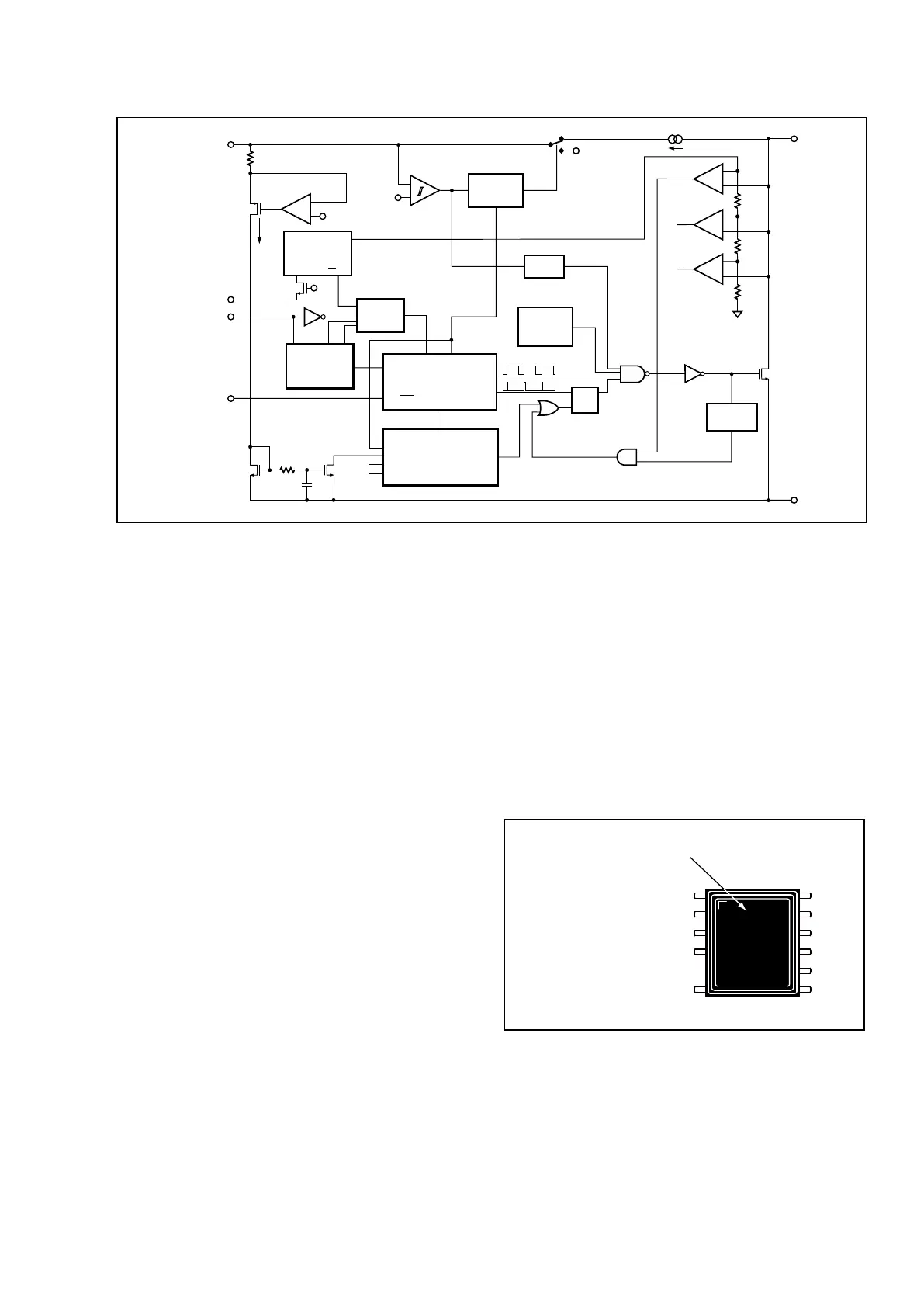

Figure 3. Functional Block Diagram.
PI-4511-012810
SHUTDOWN/
AUTO-RESTART
CLOCK
CONTROLLED
TURN-ON
GATE DRIVER
CURRENT LIMIT
COMPARATOR
INTERNAL UV
COMPARATOR
INTERNAL
SUPPLY
5.8 V
4.8 V
SOURCE (S)
SOURCE (S)
S
R
Q
D
MAX
STOP
SOFT
START
CONTROL (C)
VOLTAGE
MONITOR (V)
FREQUENCY (F)
-
+
5.8 V
I
FB
1 V
Z
C
V
C
+
-
+
-
+
-
LEADING
EDGE
BLANKING
÷ 16
1
HYSTERETIC
THERMAL
SHUTDOWN
SHUNT REGULATOR/
ERROR AMPLIFIER
+
-
DRAIN (D)
ON/OFF
DC
MAX
DC
MAX
66k/132k
0
OV/
UV
OVPV
V
I (LIMIT)
CURRENT
LIMIT
ADJUST
V
BG
+ V
T
LINE
SENSE
SOFT START
OFF
F REDUCTION
F REDUCTION
STOP LOGIC
EXTERNAL CURRENT
LIMIT (X)
OSCILLATOR
WITH JITTER
PWM
K
PS(UPPER)
K
PS(LOWER)
SOFT START
I
FB
I
PS(UPPER)
I
PS(LOWER)
K
PS(UPPER)
K
PS(LOWER)
Pin Functional Description
DRAIN (D) Pin:
High-voltage power MOSFET DRAIN pin. The internal start-up
bias current is drawn from this pin through a switched high-
voltage current source. Internal current limit sense point for
drain current.
CONTROL (C) Pin:
Error amplifier and feedback current input pin for duty cycle
control. Internal shunt regulator connection to provide internal
bias current during normal operation. It is also used as the
connection point for the supply bypass and auto-restart/
compe
nsation capacitor.
EXTERNAL CURRENT LIMIT (X) Pin:
Input pin for external current limit adjustment remote-ON/OFF
and device reset. A connection to SOURCE pin disables all
functions on this pin. This pin should not be left floating.
VOLTAGE MONITOR (V) Pin:
Input for OV, UV, line feed-forward with DC
MAX
reduction, output
overvoltage protection (OVP), remote-ON/OFF. A connection to
the SOURCE pin disables all functions on this pin. This pin should
not be left flo
ating.
FREQUENCY (F) Pin :
Input pin for selecting switching frequency 132 kHz if connected
to SOURCE pin and 66 kHz if connected to CONTROL pin. This
pin should not be left floating.
SOURCE (S) Pin:
Output MOSFET source connection for high-voltage power return.
Primary-side control circuit common and reference point.
NO CONNECTION (NC) Pin:
Internally not connected, floating potential pin.
Figure 4. Pin Configuration (Top View).
12 S
11 S
10 S
9 S
8 S
7 S
V 1
X 2
C 3
F 4
D 6
PI-5568-061011
K Package
(eSOP-12B)
Exposed Pad (On Bottom)
Internally Connected to
SOURCE Pin

Denon AVR-X520BT Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	90 W
Power output per channel (20-20KHz@8 Ohm)	70 W
HDMI in	5
Composite video in	2
USB ports quantity	1
Digital audio coaxial in	-
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Ethernet LAN	No
AM band range	552 - 1611 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-HD, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	330 W

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7500 g
