2. VIDEO PCB

Proceeding： TOP COVER → VIDEO PCB

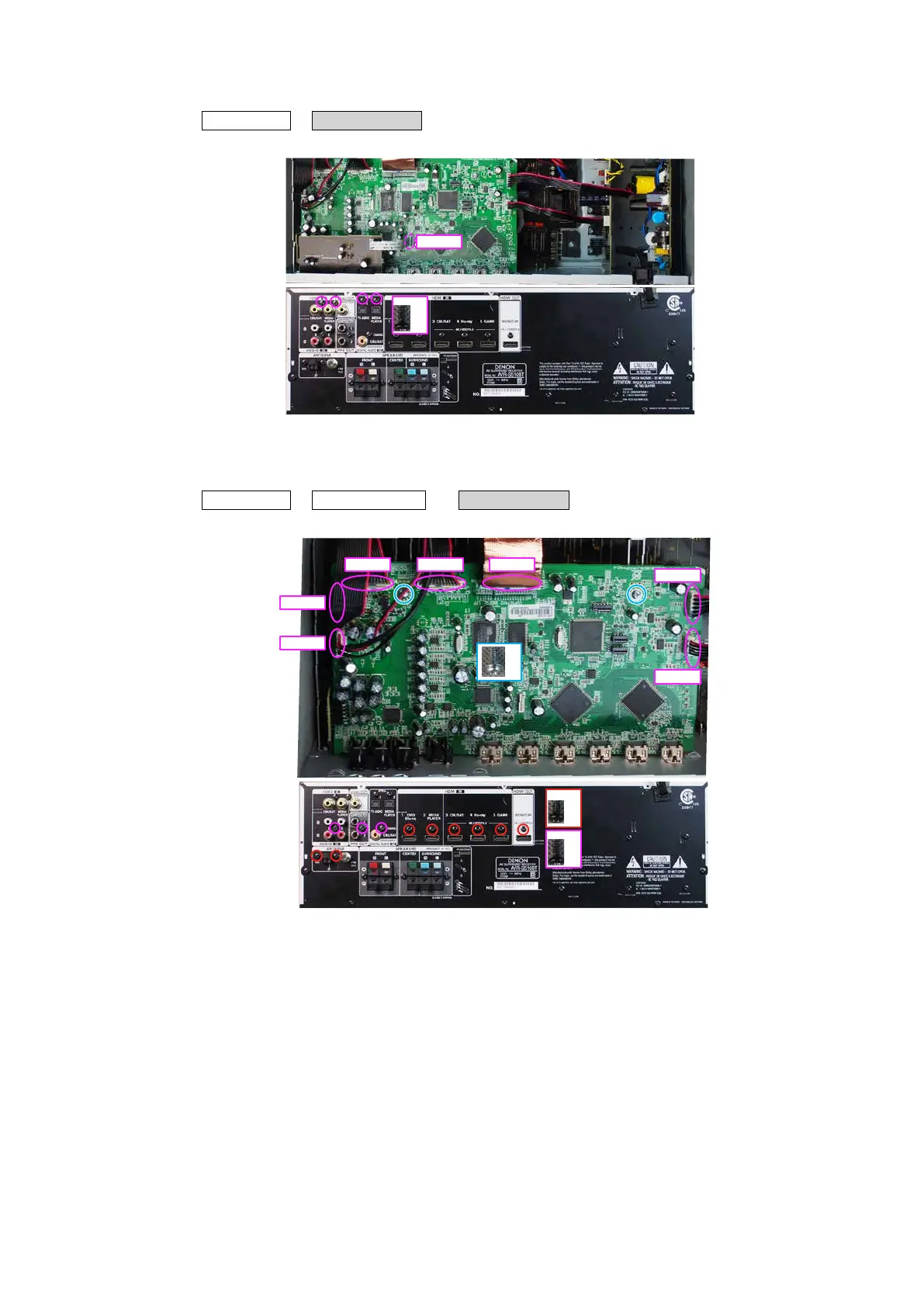

(1) Remove the screws. Remove the FFC.

3. DIGITAL PCB

Proceeding： TOP COVER → VIDEO PCB → DIGITAL PCB

(1) Remove the screws. Remove the connector wires and FFC.

↑Shooting direction: A↑

FFC

↑Shooting direction: A↑

FFCCN772CN712

CN713

CN752

CN771

CN751
