Denon AVR-X520BT Service Manual

39
YES
YES
YES
(20) Check xtal oscillator.
q
Is there 28.6363MHz oscillation of X721?
w
Is there 27MHz oscillation of X731?
(21) Check RESET.
q
Is RESET waveform conrmed at IC721 (97pin)? (If reference
waveform, proceed to "YES".)
w
Is RESET waveform conrmed at IC731 (115pin)? (If reference
waveform, proceed to "YES".)
HDMI output circuitry is defective (IC721/IC731 and surrounding
circuitry).
Replace the IC721/IC731.
(22) Check control signal(I2C).
Is waveform conrmed at Test point (SDA/SCL). (If not continued
to " L", proceed to "YES".)
q
The X721 or IC721 is defective.
w
The X731 or IC731 is defective.
Replace the new parts.
The RESET pattern or IC721/IC731 is
defective.
Replace the new parts.
The SDATA/SCL line pattern is defective.
NO
NO
NO
YES
(19) Check power supply.
q
Are 1.8V or 3.3V supplied to IC721 (each power supply pin)?
w
Are 1.1V or 3.3V supplied to IC731 (each power supply pin)?
The power supply circuitry is defective.
NO

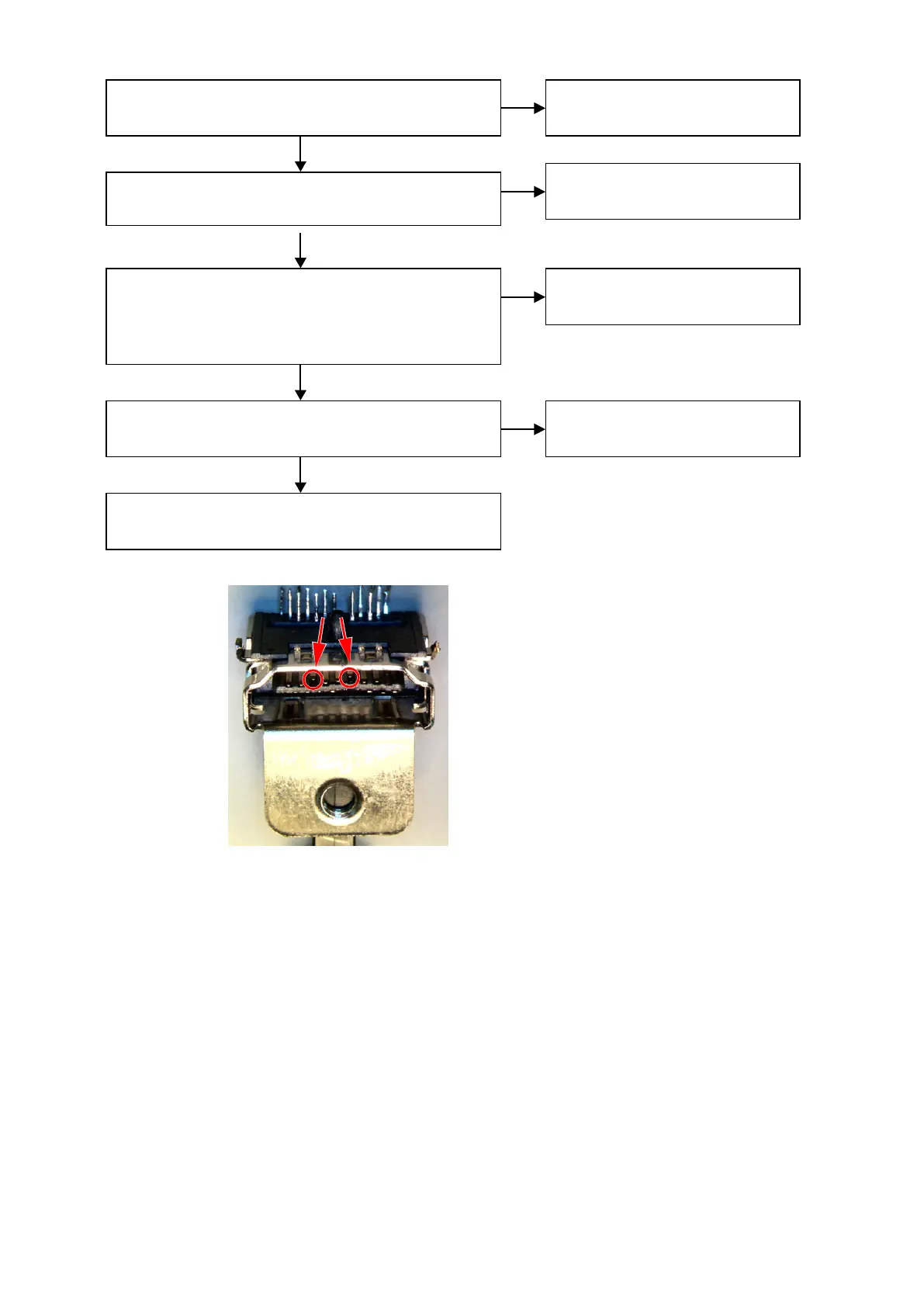

(*1) Abnormal sample of HDMI connector : The internal terminal has bent.

Denon AVR-X520BT Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	90 W
Power output per channel (20-20KHz@8 Ohm)	70 W
HDMI in	5
Composite video in	2
USB ports quantity	1
Digital audio coaxial in	-
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Ethernet LAN	No
AM band range	552 - 1611 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-HD, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	330 W

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7500 g
