Denon AVR-X520BT

90

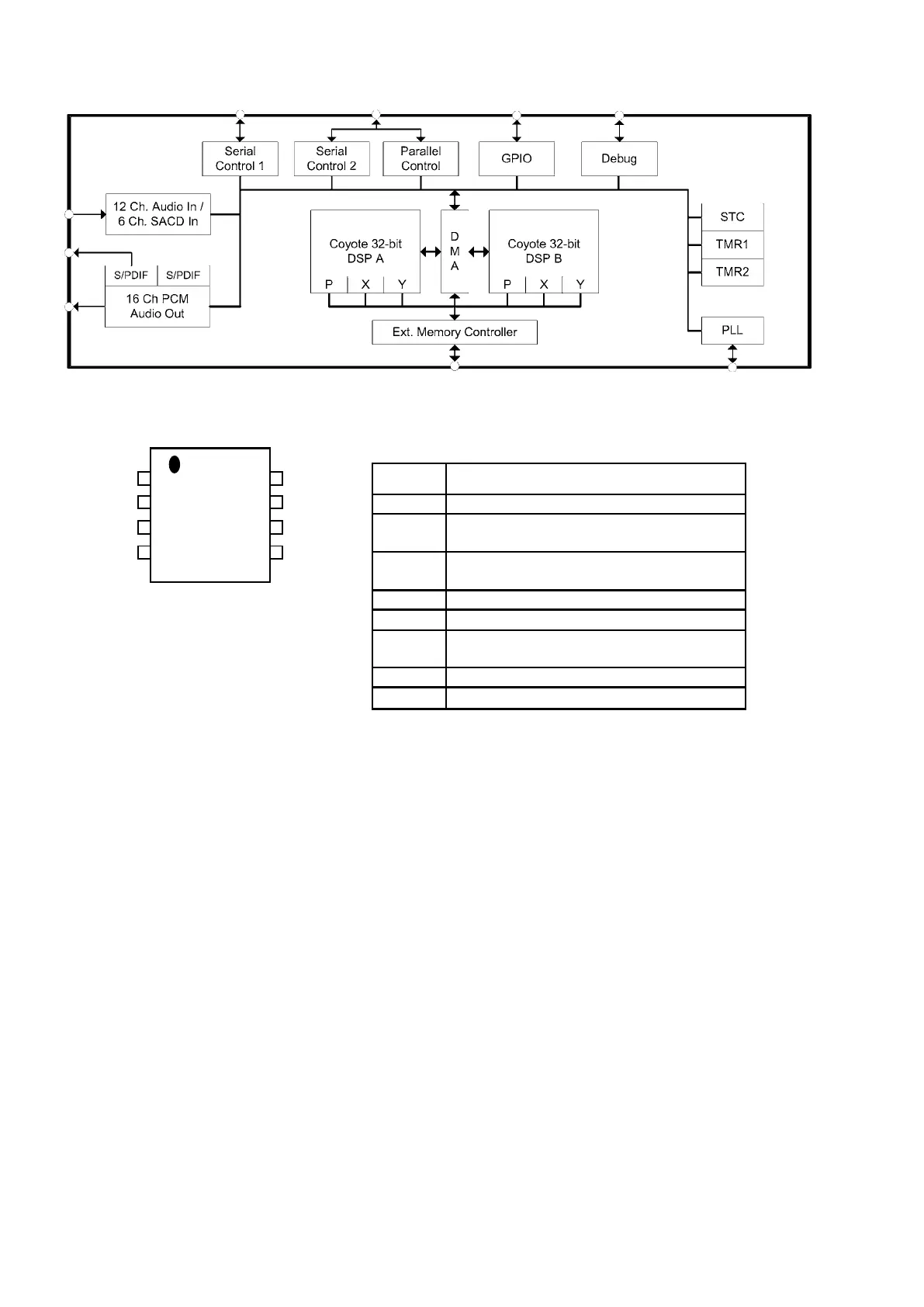

CS497024CVZBlockdiagram
MX25L8006EM2I-12G(DIGITAL:IC742)
CS#
1
2
3
4
8
7
6
5
SO/SIO1
WP#
GND
VCC
HOLD#
SCLK
SI/SIO0
SYMBOL
CS#
SI/SIO0
SO/SIO1
SCLK
WP#
HOLD#
VCC
GND
Chip Select
Serial Data Input (for 1 x I/O)/ Serial Data
Input & Output (for Dual Output mode)
Serial Data Output (for 1 x I/O)/ Serial Data
Output (for Dual Output mode)
Clock Input
Write protection
+ 3.3V Power Supply
Ground
Hold, to pause the device without
deselecting the device
DESCRIPTION
PIN DESCRIPTION
