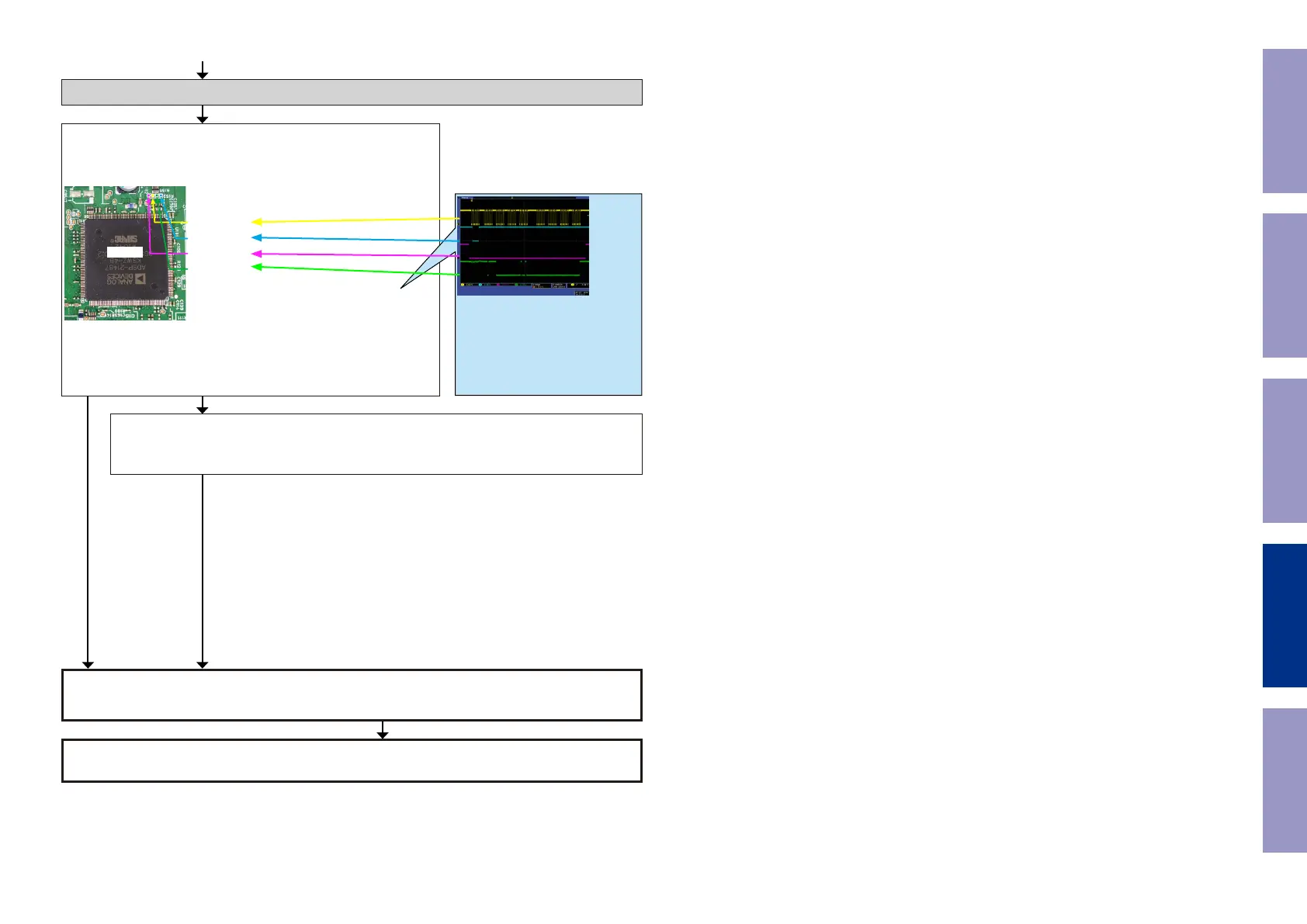

Check item(3-8.4.). Check the SPI communication line :
Check the CPU.
Is the "SPI" waveform of the TP near the DSP [U101] correct (like
the one shown in the diagram) when the power is turned on?
U101
3 pin CLK
4 pin MOSI
6 pin CS
5 pin MISO
Check item(3-8.5.). Check the SPI communication line :
Check DSP [U101], CPU [U6201] patterns as well as soldering.
If there is no problem, go to the next step.
Check the SPI communication line. (DSP1)
DSP [U101] is faulty.
Replace with a new device.
YES
*The diagram shows an example.
(Signal patterns vary depending on the tim-
ing.)
Points for checking waveforms
- Crest value (3.3V normally)
- Signal change
- CLOCK frequency (about 1.2MHz)
Voltage scale : 2.0V/div
Time scale : 2us/div
NOYES
Recheck from check item (3.1.)
If it does not work, replace the PCB.
