Denon AVR-X6500H

Denon AVR-X6500H

201 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

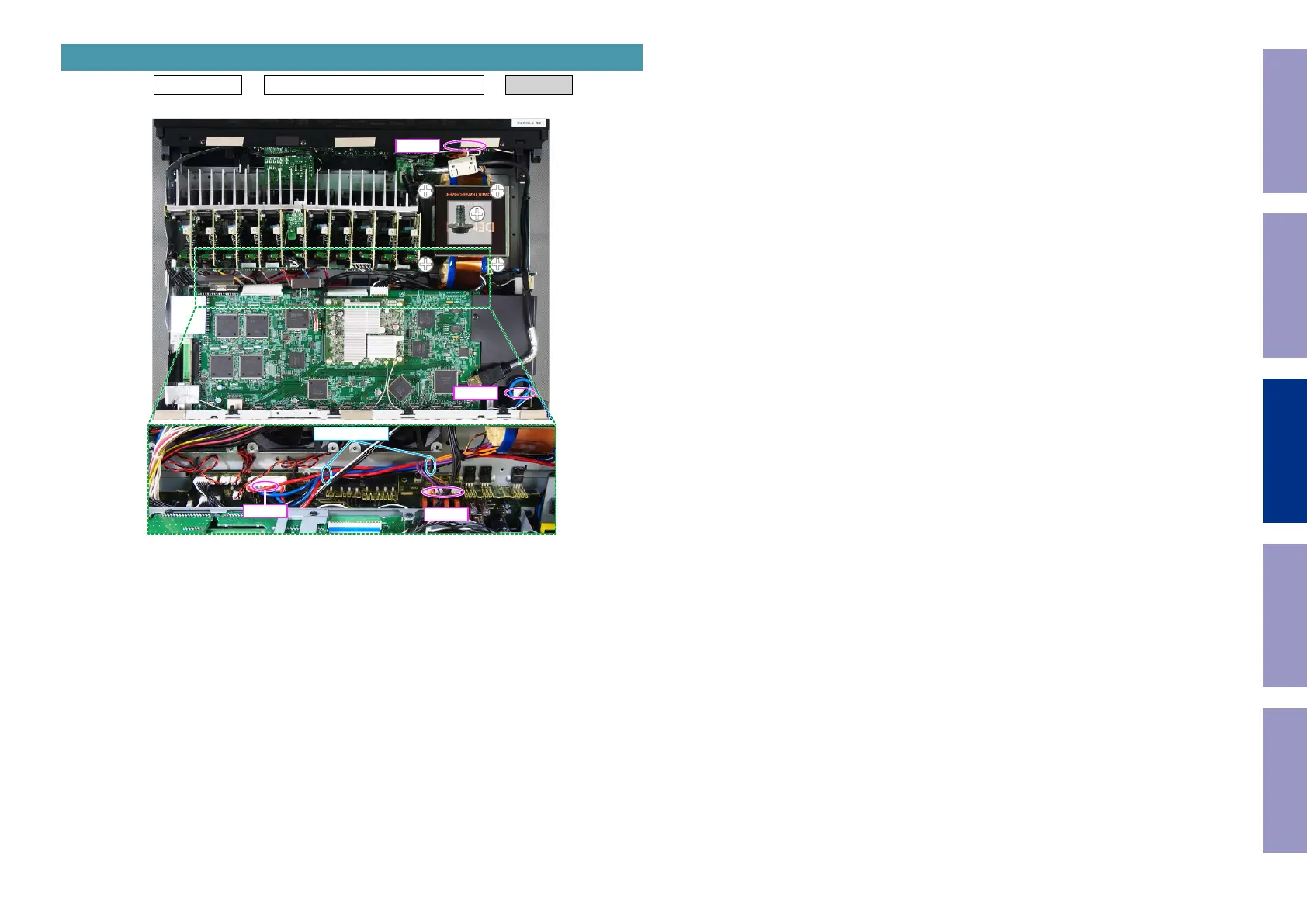

Proceeding : TOP COVER → RADIATOR ASSY or BACK PANEL ASSY → TRANS

(1) Removethescrews.Removetheconnector.

4. TRANS

N6201

N6012

x4

N6401

N6501

STYLE PIN

Before Servicing

This Unit

Electrical Mechanical Repair Information Updating

79

Table of Contents

SAFETY PRECAUTIONS3
- NOTE FOR SCHEMATIC DIAGRAM4
- HANDLING THE SEMICONDUCTOR AND OPTICS4
- ONLINE PARTS LIST5
- SERIAL NUMBER6
  - Serial Number Organization6
  - SKU Code of this Unit6
- POST-SERVICE PRECAUTIONS7
  - Initializing this Unit7
  - JIG FOR SERVICING7
SCHEMATIC DIAGRAMS9
- SCH01_DIGITAL CONNECT9
- SCH02_MAIN CPU10
- SCH03_EXPANDER11
- SCH04_AUDIO PLD12
- SCH05_DIR DA SUPPLY13
- SCH06_ADI DSP114
- SCH07_ADI DSP215
- SCH08_ADI DSP316
- SCH09_ADI DSP417
- SCH10_HDMI SUPPLY18
- SCH11_DECODER19
- SCH12_HDMI SW220
- SCH13_HDMI SW121
- SCH14_IP OSD22
- SCH15_IP OSD DDR23
- SCH16_VIDEO PLD24
- SCH17_HDMI TX25
- SCH18_E ARC26
- SCH19_NET MODULE CONNECT27
- SCH20_AUDIO/VIDEO CONNECT28
- SCH21_AUDIO VOLUME29
- SCH22_PREOUT30
- SCH23_VIDEO SELECTOR31
- SCH24_CONNECT32
- SCH25_AMP CONNECT33
- SCH26_ZONEDAC ADC34
- SCH27_MAIN DAC35
- SCH28_FRONT HDMI USB36
- SCH29_SMPS37
- SCH30_232C PHONO38
- SCH31_P.AMP139
- SCH32_P.AMP240
- SCH33_SPEAKER41
- SCH34_REG42
- SCH35_FLD43
PRINTED CIRCUIT BOARDS44
- DIGITAL44
- AUDIO VIDEO, FRONT HDMI, FRONT USB, CONNECT-1, CONNECT-2, CONNECT-445
- DAC, L AMP CONNECT, R AMP CONNECT, FLD,FUNC, CONNECT, TACT, VOL46
- SPEAKER, HEIGHT2 SP, HP, P.SW, CONNECT-3, P.SW47
- AMP1, AMP2, SMPS, 232C PHONO48
LEVEL DIAGRAM49
- FRONT ch49
- CENTER / SURROUND ch50
- SUBWOOFER ch51
- SURROUND BACK / HEIGHT1 / HEIGHT2 ch52
- ZONE2 / ZONE3 ch53
BLOCK DIAGRAM54
- ANALOG AUDIO DIAGRAM54
- DIGITAL AUDIO DIAGRAM55
- VIDEO DIAGRAM56
POWER DIAGRAM57
SEMICONDUCTORS58
- 1. IC's58
- 2. FL DISPLAY67
- 3. Remote Code Table68
DISASSEMBLY76
- Flowchart76
- 1. FRONT PANEL ASSY77
- 2. RADIATOR ASSY78
- 3. DIGITAL PCB78
- 4. TRANS79
EXPLODED VIEW80
PACKAGING VIEW81
TROUBLE SHOOTING83
- 1. POWER83
- 2. Analog video84
- 3. HDMI/DVI86
- 4. AUDIO88
- 5. Network / Bluetooth / USB90
- 6. SMPS94
PROTECTION DIAGRAM95
AUDIO CHECK PATH96
HDMI "Rx/Tx" Failure Detection97
- 1. Prior checking97
- 2. Preparations for checking HDMI Switcher reception/transmission register98
- 3. Starting detecting the point of failure100
- 4. Device implementation location141
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK142
SPECIAL MODE143
- Special mode setting button143
- 1. Version Display Mode144
- 2. PANEL / REMOTE LOCK Selection Mode147
- 3-1. Selecting the Mode for Service-related148
- 3-2. Protection History Display Mode149
- 3-3. 232C Standby Clear Mode150
- 3-4. Operation Info Mode151
- 3-5. TUNER STEP mode (E3 only)152
- 3-6. Remote ID Setup Mode152
- 4. Protection Pass Mode153
- 5. Network Initialization Mode153
- 6. Clearing the Operation Info154
- 7. Log Capture feature154
DIAGNOSTIC MODE155
- Service Path Check Mode155
- DIAGNOSTIC PATH DIAGRAM159
JIG FOR SERVICING190
ADJUSTMENT191
PROCEDURE AFTER REPLACING THE PCB.193
PROCEDURE AFTER REPLACING THE U-COM, ETC.193
FIRMWARE UPDATE PROCEDURE194
- 1. Items necessary for update194
- 2. Update preparation with a USB flash drive195
- 3. Update method when the DIGITAL PCB or network module is replaced (Using a USB flash drive)196
- 4. Update Method for Service Region Settings197
- 5. Normal Firmware Update Method from USB Flash Drive198
- 6. Normal Firmware Update Method from OTA199
- 7. About the error codes200
