Denon AVR-X6500H

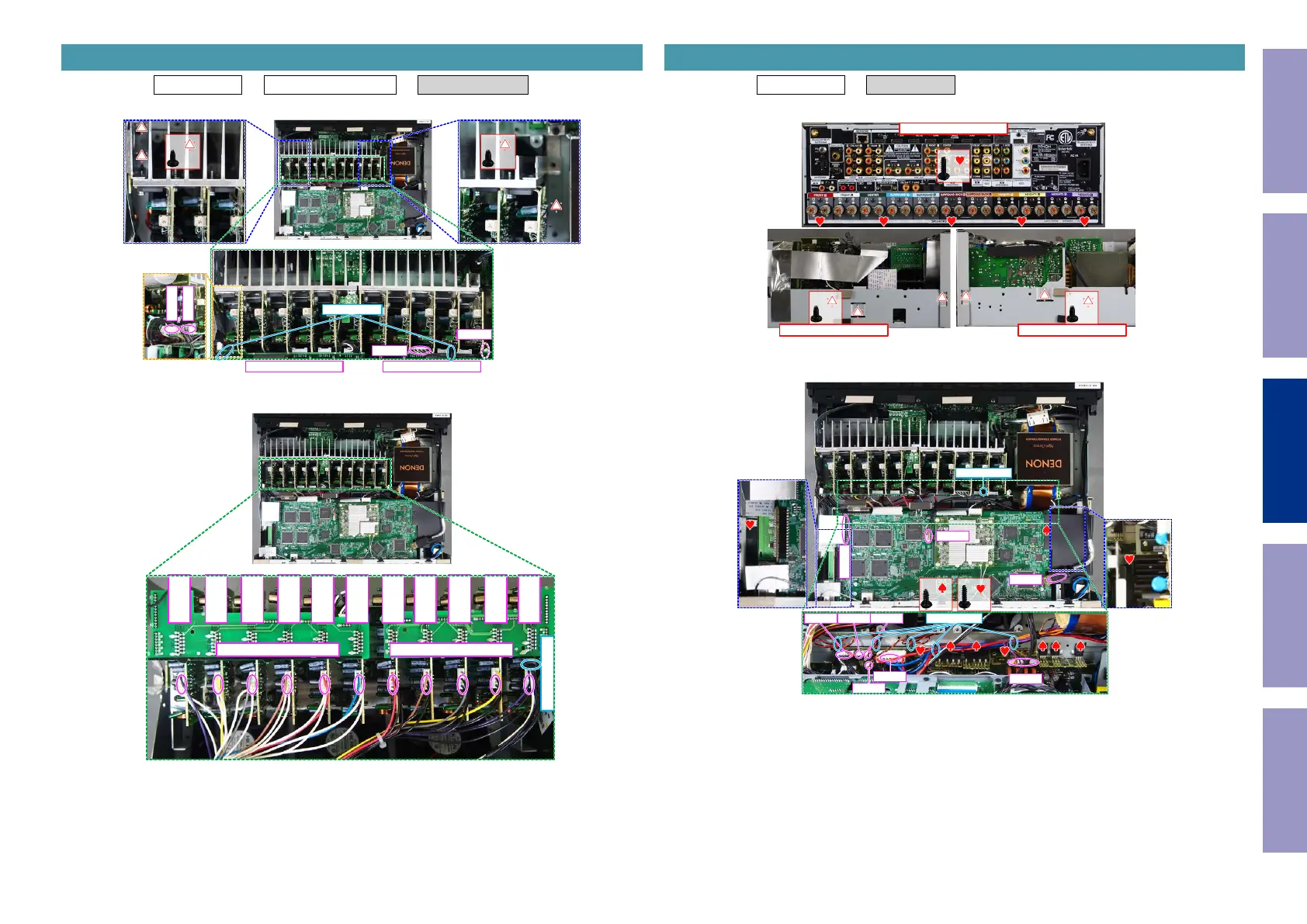

Proceeding : TOP COVER → FRONT PANEL ASSY → RADIATOR ASSY
(1) Removethescrews.RemovetheSTYLEPINandconnectors.
(2) Removetheconnector.
2. RADIATOR ASSY
x2 x1
N5821
N5842
N5834 N5833
L-AMP CONNECT R-AMP CONNECT
STYLE PIN
H2L
PURPLE
H1L
YELLOW
SBL
GRAY
SL
BROWN
FL
RED
C
BLUE
FR
RED
SR
BROWN
SBR
GRAY
H1R
YELLOW
H2R
PURPLE
L-AMP CONNECT R-AMP CONNECT
STYLE PIN
Proceeding : TOP COVER → DIGITAL PCB
(1) Removethescrews.
(2) RemovetheSTYLEPINsandconnectors.
RemovetheFFC.Removethescrews.
3. DIGITAL PCB
↓Shooting direction: A↓
↑Shooting direction: C↑ ↑Shooting direction: D↑
x2 x2
x5
x6
x4
STYLE PIN
N6201
N6012
N3403
N9019
N9016 N9018 N9017
FFC
N8001
STYLE PIN
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
78
