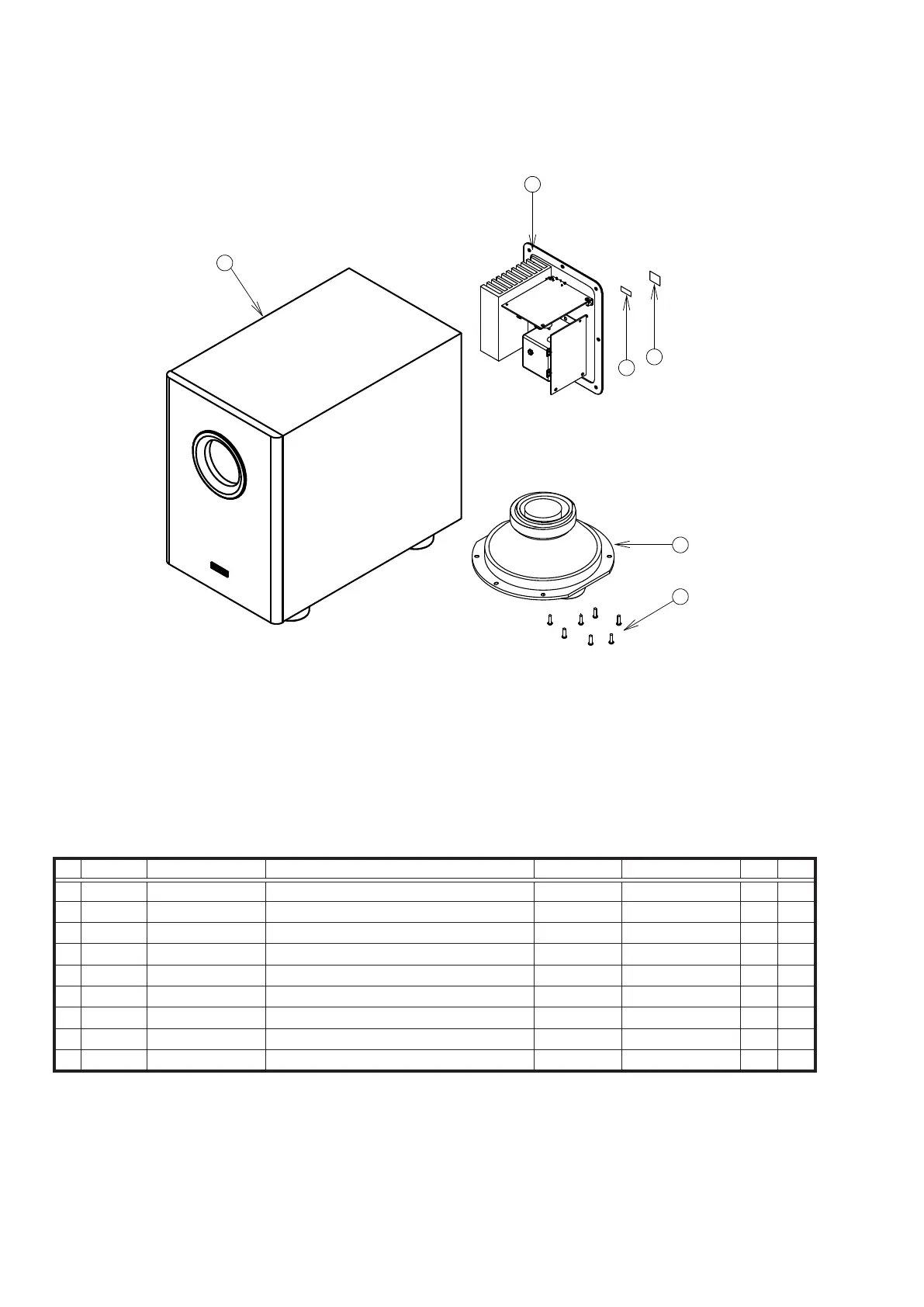

DSW-1312 EXPLODED VIEW
DSW-1312 PARTS LIST OF EXPLODED VIEW
＊ Parts for which "nsp" is indicated on this table cannot be supplied.
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. and Canada model E2 : Europe model
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp CABINET ASSY
-
1 *
2 984323100060D DRIVER 304-00050-00 1 *
3 nsp SCREW S411-A4020E1J 16 *
4 984189000150D AMPLIFIER E2 326-W391CE-K0 1 *
4 984189000160D AMPLIFIER E3 326-W391UL-K0 1 *
5 nsp SAFETY LABEL E2 660-0W1312-00 1 *
5 nsp SAFETY LABEL E3 660-00W391-00 1 *
6 nsp SPEC LABEL E2 600-0W1312-00 1 *
6 nsp SPEC LABEL E3 600-1W1312-00 1 *
1
4
5
6
2
3

Denon DHT-1312XP Specifications

General

Product color	Black
Volume control	Rotary
RMS rated power	110 W
Recommended usage	Home theatre
Remotely operated	Yes
Audio output channels	5.1 channels
Amplification device type	AV receiver
Amplifier frequency range	10 - 100000 Hz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Amplification device form factor	Stand-alone
Amplifier dimensions (W x D x H)	434 x 382 x 162 mm
Satellite speaker type	-
Satellite speaker weight	800 g
Number of satellite speakers	2
Satellite speakers RMS power	- W
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker dimensions (WxDxH)	105 x 150 x 200 mm
Center speaker dimensions (WxDxH)	200 x 150 x 105 mm
Subwoofer weight	11000 g
Subwoofer frequency range	35 - 150 Hz
Subwoofer dimensions (WxDxH)	250 x 420 x 387 mm
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Headphone outputs	1

Weight and Dimensions

Set weight	8900 g
