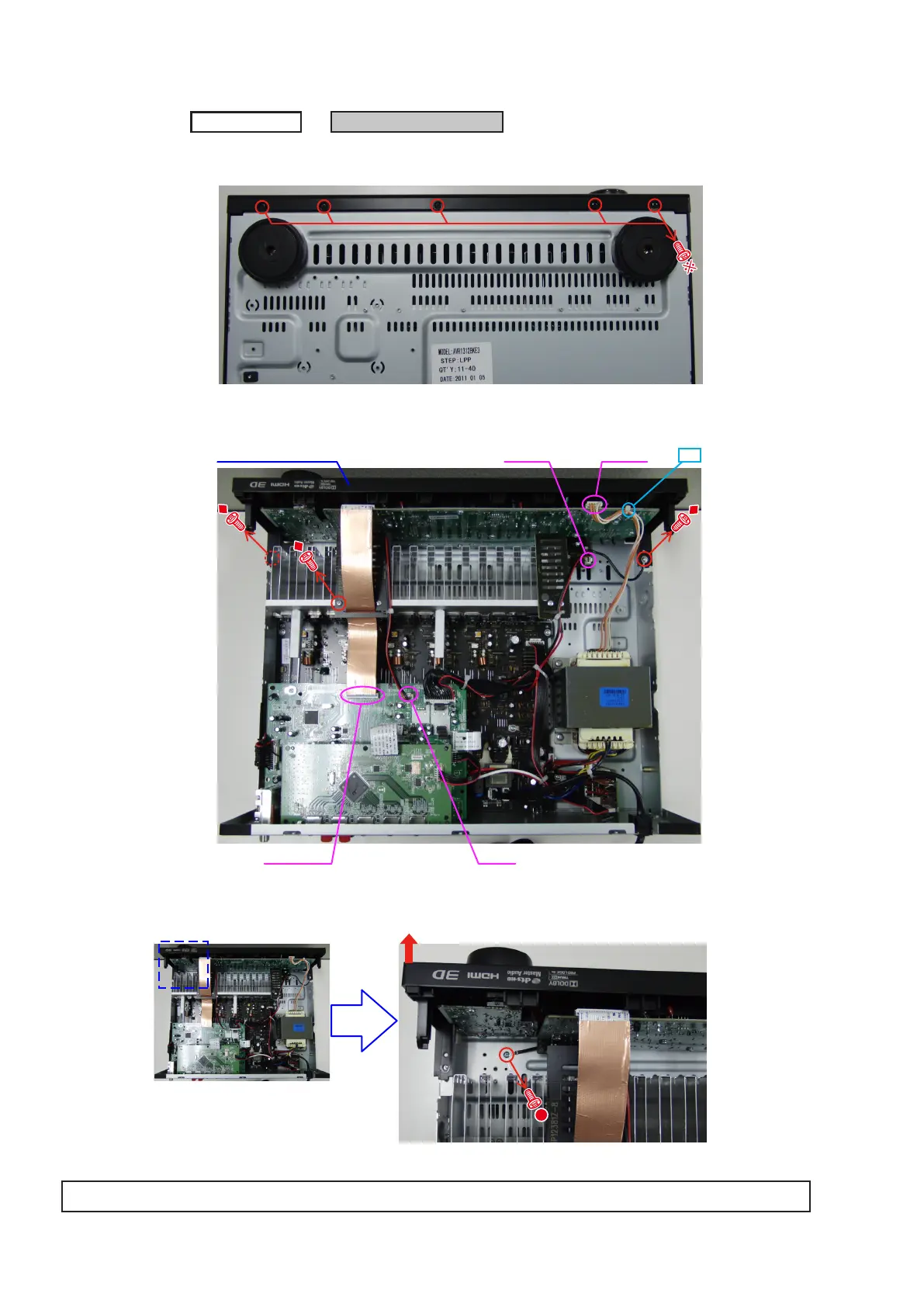

1. FRONT PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC cable. Remove the screws.
(3) Remove the screws.
TOP COVER
FRONT PANEL ASSY
→
Proceeding :
View from the bottom
CN610
CN71FFC cable
CN603
cut
FRONT PANEL ASSY
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.

Denon DHT-1312XP Specifications

General

Product color	Black
Volume control	Rotary
RMS rated power	110 W
Recommended usage	Home theatre
Remotely operated	Yes
Audio output channels	5.1 channels
Amplification device type	AV receiver
Amplifier frequency range	10 - 100000 Hz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Amplification device form factor	Stand-alone
Amplifier dimensions (W x D x H)	434 x 382 x 162 mm
Satellite speaker type	-
Satellite speaker weight	800 g
Number of satellite speakers	2
Satellite speakers RMS power	- W
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker dimensions (WxDxH)	105 x 150 x 200 mm
Center speaker dimensions (WxDxH)	200 x 150 x 105 mm
Subwoofer weight	11000 g
Subwoofer frequency range	35 - 150 Hz
Subwoofer dimensions (WxDxH)	250 x 420 x 387 mm
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Headphone outputs	1

Weight and Dimensions

Set weight	8900 g
