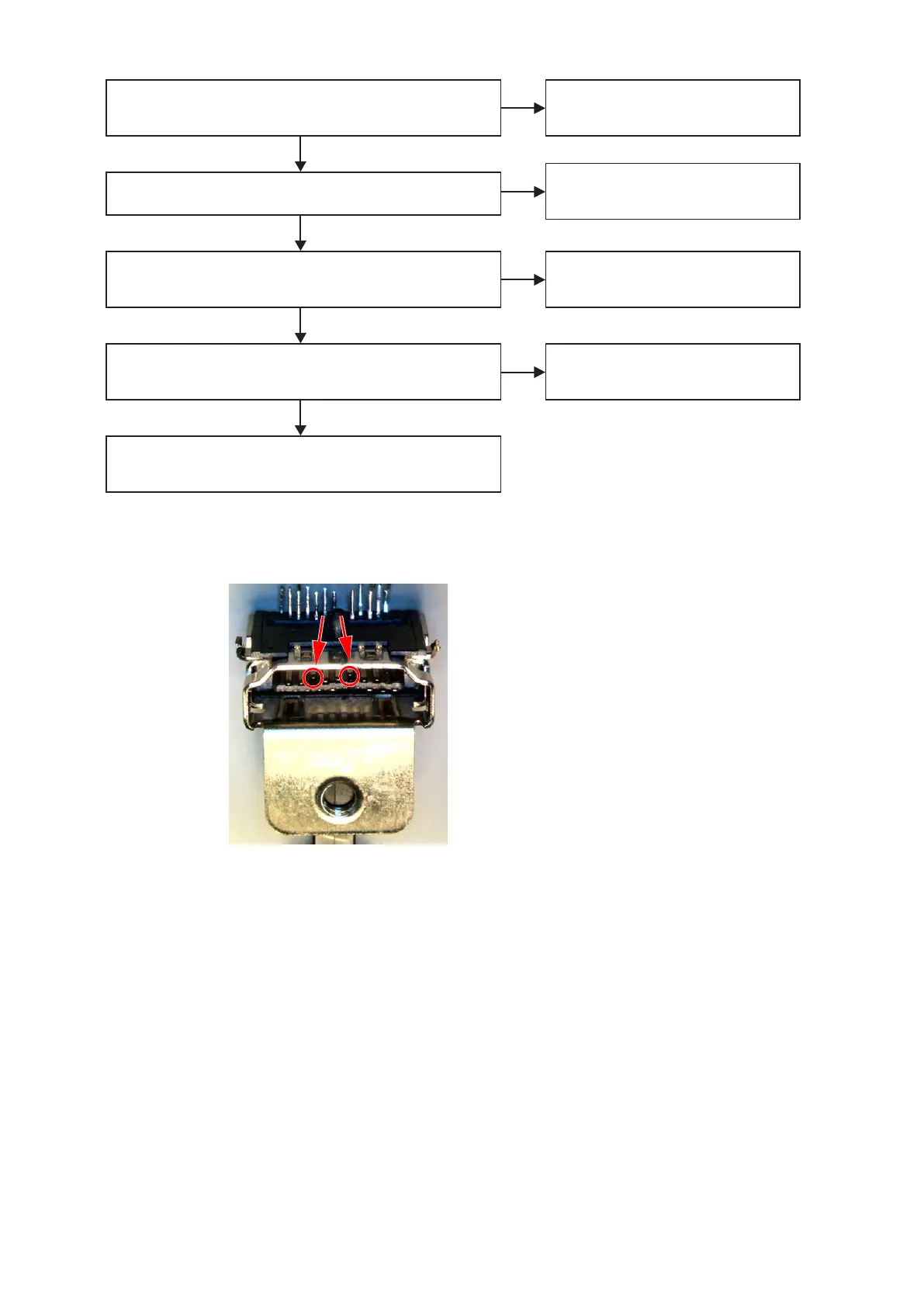

(19) Check xtal oscillator.
Is there 28.6363MHz oscillation of X101?
(20) Check RESET.
Is RESET waveform conrmed at IC11 (97pin)? (If reference
waveform, proceed to "YES".)
HDMI output circuitry is defective (IC11 and surrounding circuitry).
Replace the IC11.
(21) Check control signal(I2C).
Is waveform conrmed at Test point (SDA/SCL). (If not continued
to " L", proceed to "YES".)
The X101 or IC11 is defective.
Replace the new parts.
The RESET pattern or IC11 is defective.
Replace the new parts.
The SDATA/SCL line pattern is defective.
NO
NO
NO
YES
(18) Check power supply.
Are 1.8V or 3.3V supplied to IC11 (each power supply pin)?
The power supply circuitry is defective.
NO
(*1) Abnormal sample of HDMI connector : The internal terminal has bent.

Denon DHT-1312XP Specifications

General

Product color	Black
Volume control	Rotary
RMS rated power	110 W
Recommended usage	Home theatre
Remotely operated	Yes
Audio output channels	5.1 channels
Amplification device type	AV receiver
Amplifier frequency range	10 - 100000 Hz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Amplification device form factor	Stand-alone
Amplifier dimensions (W x D x H)	434 x 382 x 162 mm
Satellite speaker type	-
Satellite speaker weight	800 g
Number of satellite speakers	2
Satellite speakers RMS power	- W
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker dimensions (WxDxH)	105 x 150 x 200 mm
Center speaker dimensions (WxDxH)	200 x 150 x 105 mm
Subwoofer weight	11000 g
Subwoofer frequency range	35 - 150 Hz
Subwoofer dimensions (WxDxH)	250 x 420 x 387 mm
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Headphone outputs	1

Weight and Dimensions

Set weight	8900 g
