Getting Started Installation Settings Operation Other Functions Troubleshooting Specifications
ENGLISH
To enjoy surround-compatible digital broadcast programs, we recommend connecting the digital TV using
digital audio connections.
•
With the DHT-FS5, three sets of digital audio signals and analog audio signals can be input.
• Here we describe how to connect a DVD player, TV and subwoofer.
<View from the bottom>
Connections
NOTE
• Do not plug in the power cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with connection cables. Doing so can result in humming or noise.
Preparations
Select the cables according to the equipment being connected.
Cables Used for Connections
Audio cables Signal direction
Coaxial digital connections
(
Black
)
Coaxial digital (75 Ω/ohms pin-plug) cable
Optical digital connections (included)
Optical fiber cable
Analog connections (stereo) (included)
(White)
(Red)
Stereo pin-plug cable
Analog connections (monaural, for subwoofer)
(Black)
Pin-plug cable
Audio signal:
Output
Input
Input
Output

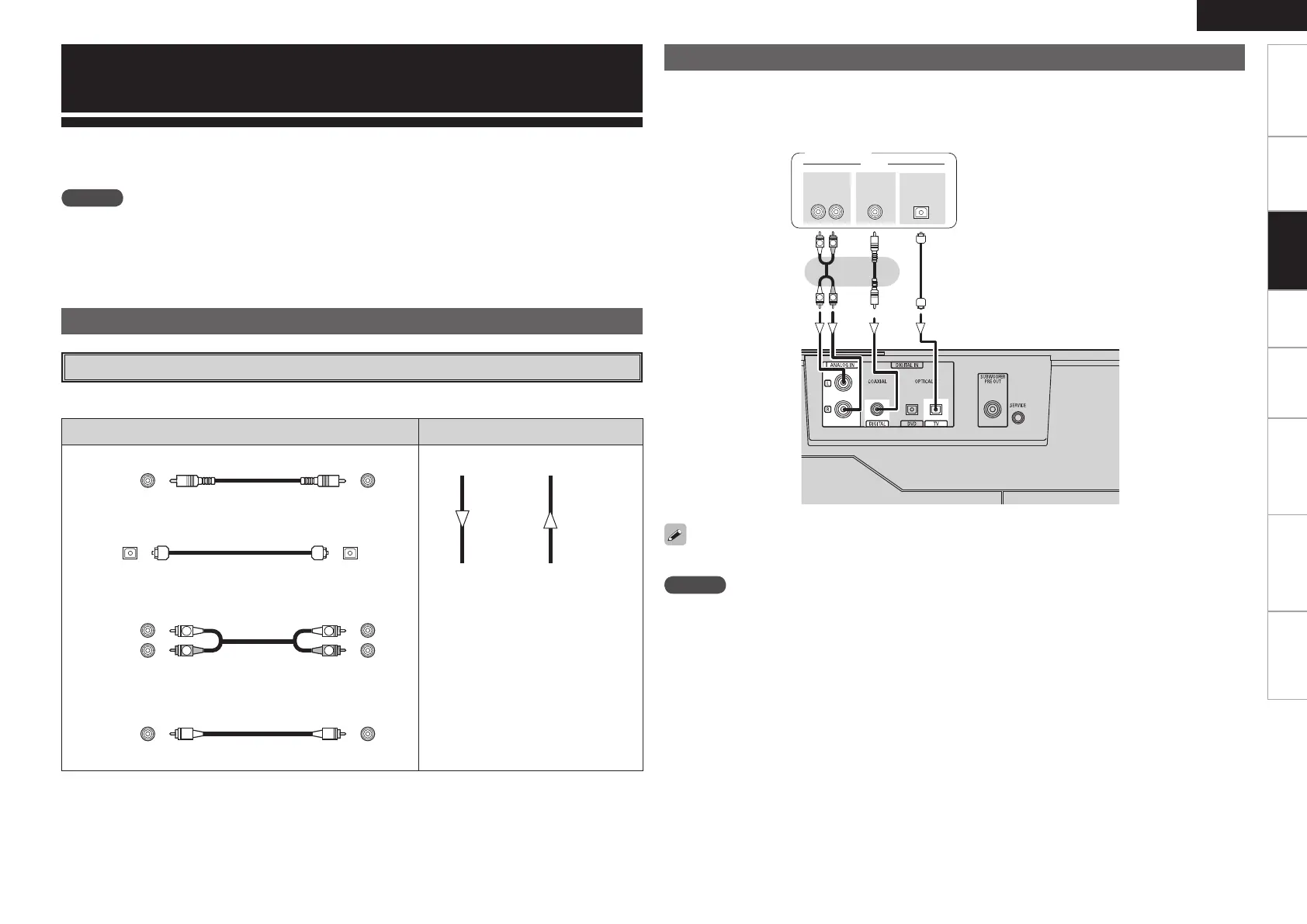

Connecting the TV
"6%*0
"6%*0
3-
065
065
015*$"-
$0"9*"-
065
R
L
R
L
TV
When playing the TV’s sound over the DHT-FS5, set the TV’s volume to the minimum.
NOTE
Remove the cap on the tip of the included optical fiber cable before connecting it.
Connections
or
To Next Page
