113

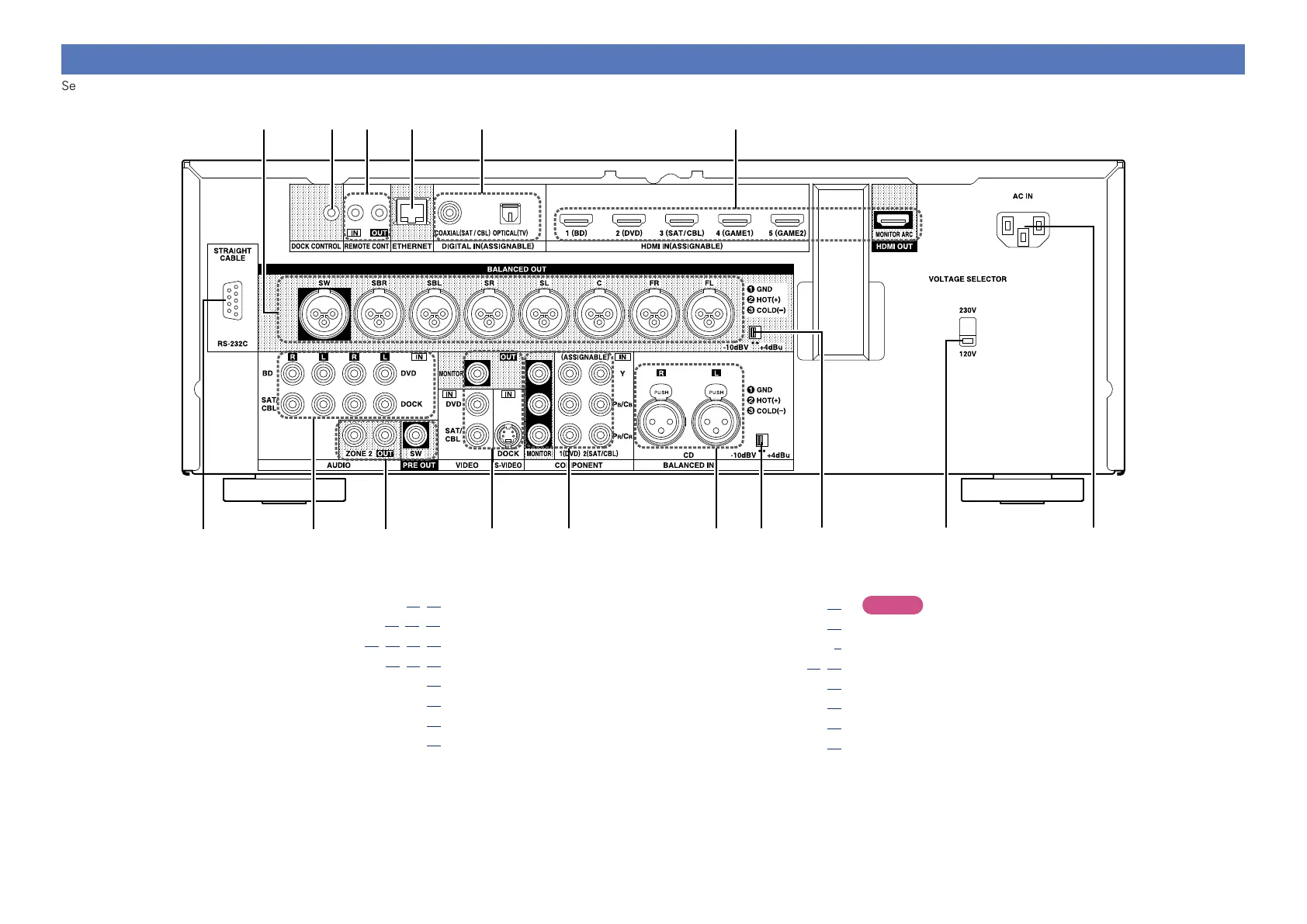

Rear panel
See the page indicated in parentheses ( ).
q
e
w
r t y u oi Q0
Q1Q2Q3Q4Q56Q6
q RS-232C connector ···························································· (16, 89)
w Analog audio connectors ············································ (11, 11, 14)
e PRE OUT connectors ································· (C 6, 41, 42, 43, 45)
r S-VIDEO/VIDEO connectors ······································· (10, 11, 12)
t COMPONENT VIDEO connectors ··········································· (11)
y BALANCED IN connectors ······················································ (14)
u Input level selector ·································································· (14)
i Output level selector ······························································· (16)
o Voltage selector ······································································ (17)
Q0 AC inlet (AC IN) ···························································· (C 5, 17)
Q1 HDMI connectors ··························································· (C 3, 8)
Q2 Digital audio connectors ··················································· (10, 11)
Q3 ETHERNET connector ····························································· (15)
Q4 REMOTE CONTROL jacks ······················································· (16)
Q5 DOCK CONTROL jack ······························································ (12)
Q6 BALANCED OUT connectors ·················································· (12)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
