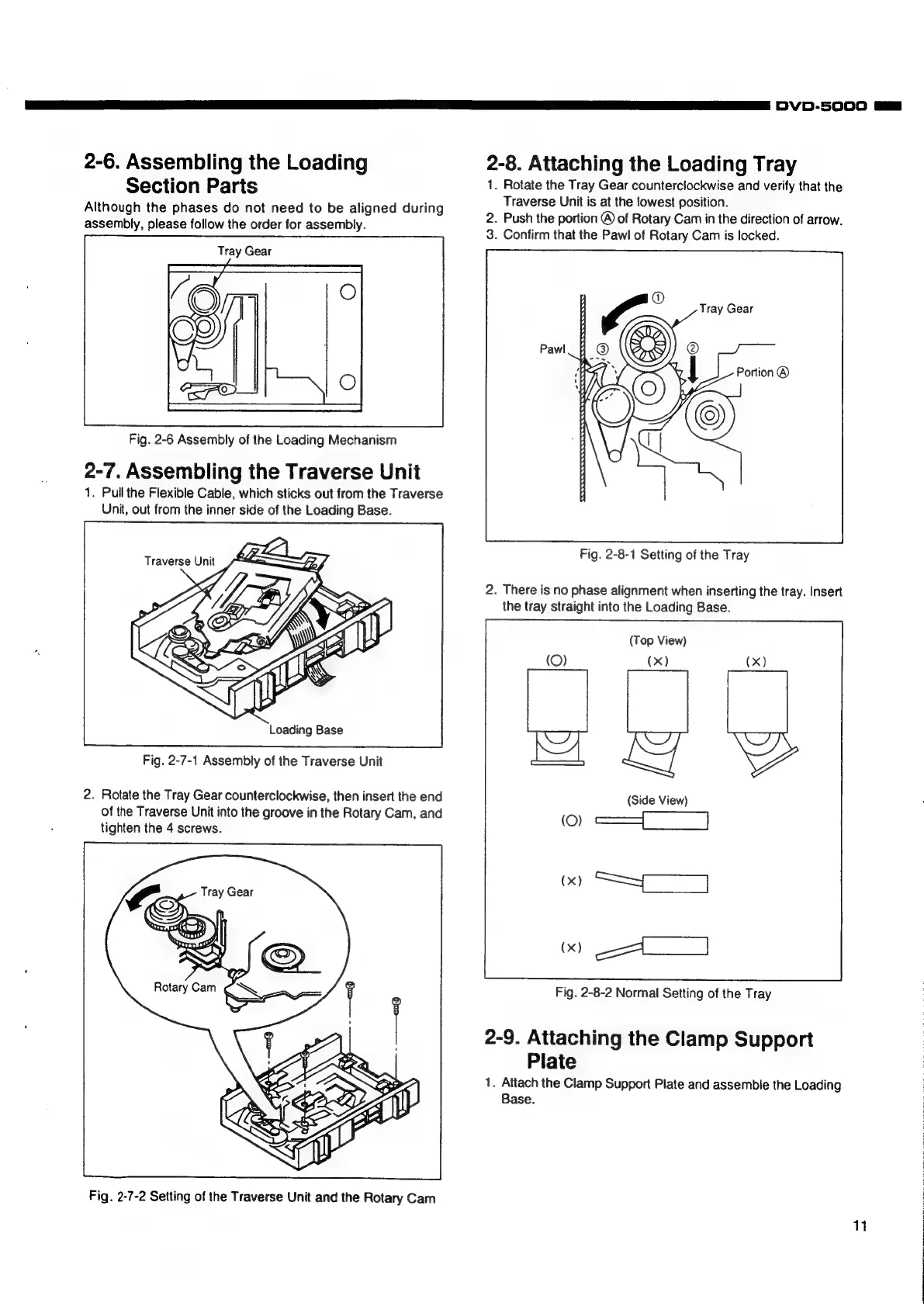

Denon DVD-5000 - Traverse Unit Assembly

2-6. Assembling the Loading
Section Parts
Although the phases do not need to be aligned during
assembly, please follow the order for assembly.
Tray Gear
Fig. 2-6 Assembly of the Loading Mechanism
2-7. Assembling the Traverse Unit
1. Pull the Flexible Cable, which sticks out from the Traverse
Unit, out from the inner side of the Loading Base.
Loading Base
Fig. 2-7-1 Assembly of the Traverse Unit
2. Rotate the Tray Gear counterclockwise, then insert the end
of the Traverse Unit into the groove in the Rotary Cam, and
tighten the 4 screws.
Fig.
2-7-2
Setting
of
the
Traverse
Unit
and
the
Rotary
Cam
DVD-5000 mam
2-8. Attaching the Loading Tray
1. Rotate the Tray Gear counterclockwise and verify that the
Traverse Unit is at the lowest position.
2. Push the portion @ of Rotary Cam in the direction of arrow.
3. Confirm that the Pawl of Rotary Cam is locked.
Fig. 2-8-1 Setting of the Tray
2. There is no phase alignment when inserting the tray. Insert
the tray straight into the Loading Base.
(Top View)
(xX)
(Side View)
Fig. 2-8-2 Normal Setting of the Tray
2-9. Attaching the Clamp Support
Plate
1, Attach the Clamp Support Plate and assembie the Loading
Base.
