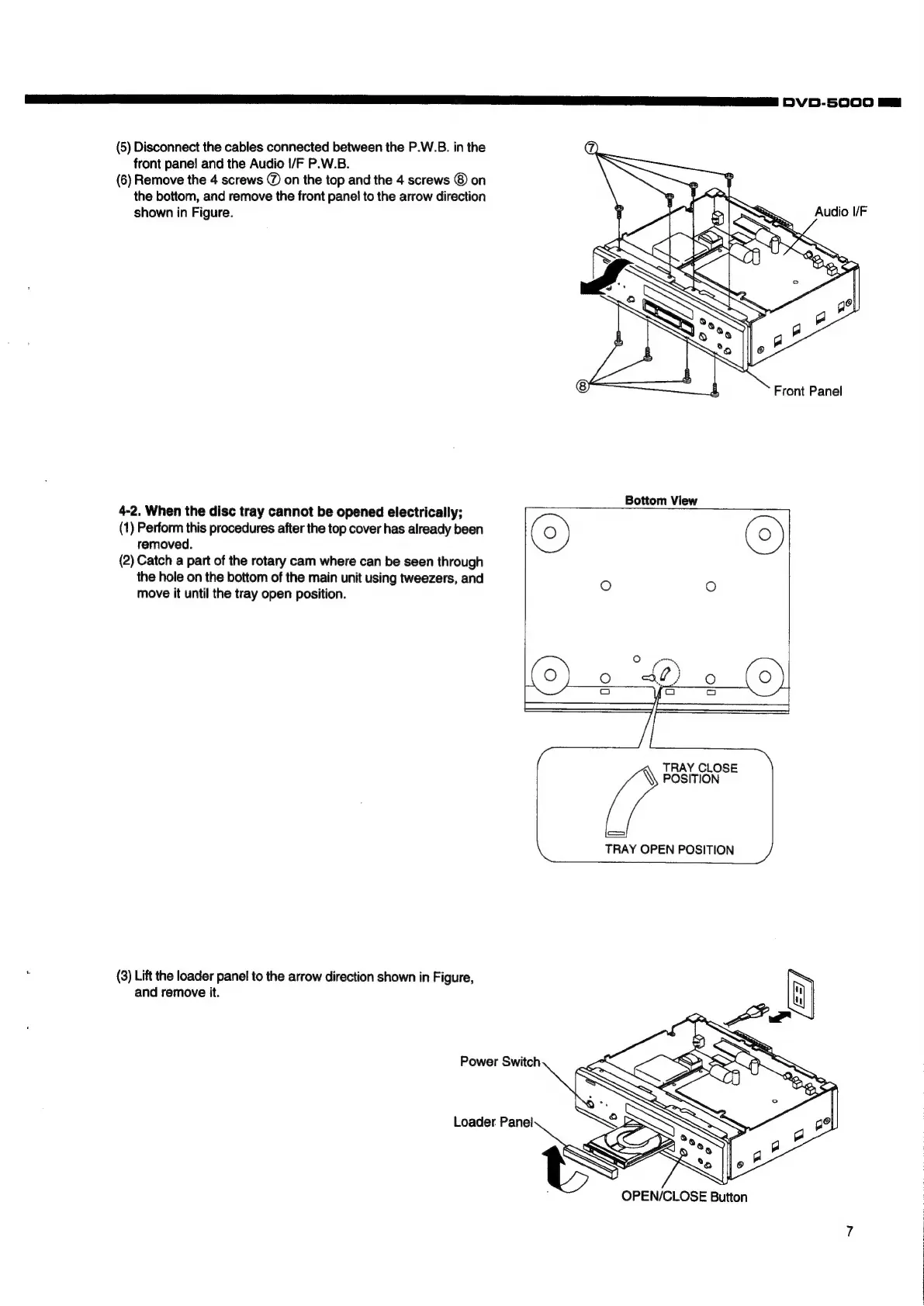

(5) Disconnect the cables connected between the P.W.B. in the
front pane! and the Audio {/F P.W.B.
(6) Remove the 4 screws @ on the top and the 4 screws © on
the bottom, and remove the front panel to the arrow direction
shown in Figure.
4-2. When the disc tray cannot be opened electrically;
(1) Perform this procedures after the top cover has already been
removed.
(2) Catch a part of the rotary cam where can be seen through
the hole on the bottom of the main unit using tweezers, and
move it until the tray open position.
(3) Lift the loader panel to the arrow direction shown in Figure,
and remove it.
Power Switch
DVD-5000 mm
Bottom View
TRAY CLOSE
(/ POSITION
TRAY OPEN POSITION
