Denso BHT-300B - Operating in System Mode; 1 ] Calling up the Desired Set Screen

Chapter 2 Getting Started the BHT and System Mode
2.5.2 Operating in System Mode

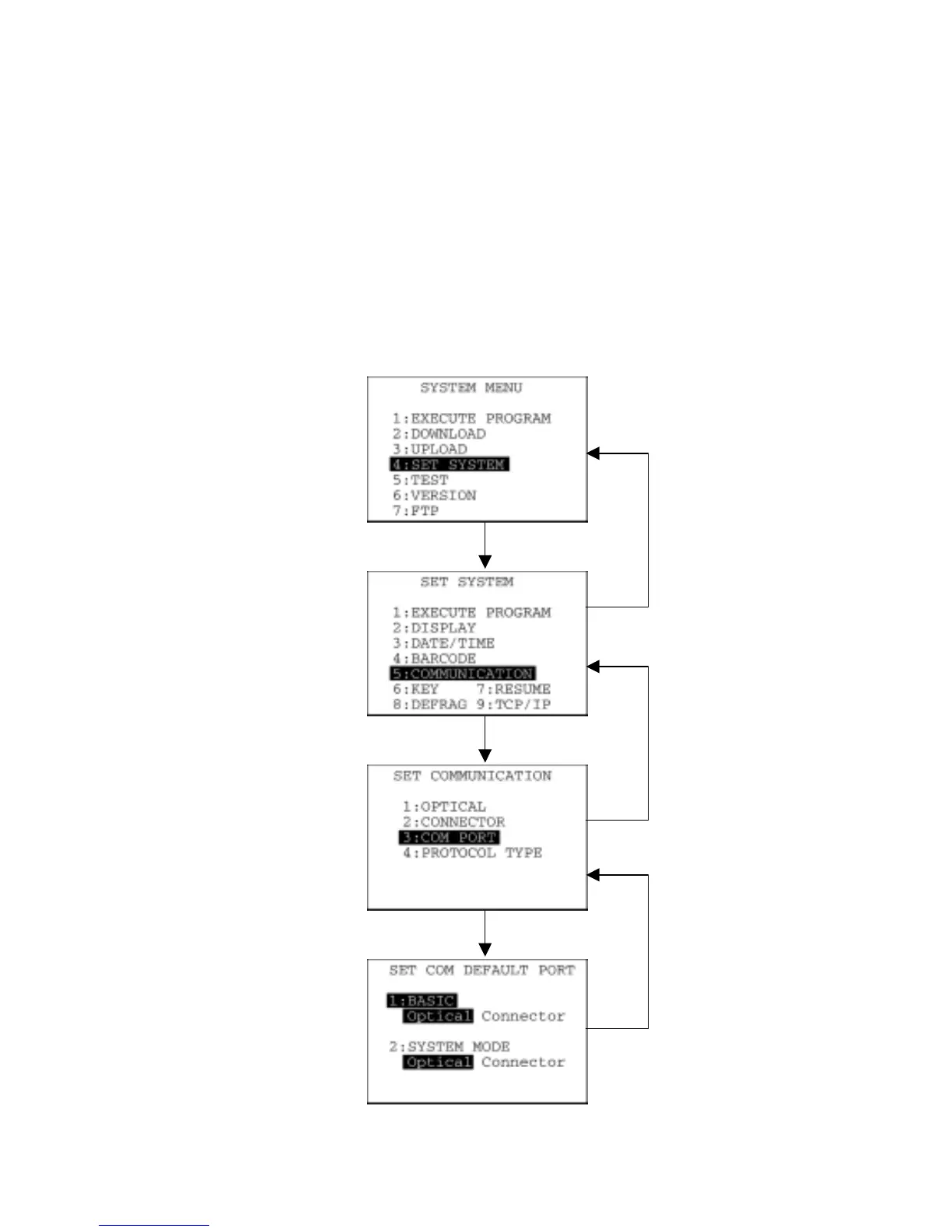

Some functions in System Mode require several screens to be shifted, as shown in the example below.
[ 1 ] Calling up the desired set screen
First, select a desired item on the current screen by using the numerical key or the cursor keys (F5 and
F6) so as to highlight the desired item.
Press the ENT key to establish the selected item and proceed to the subsequent screen.
To return to the preceding screen, press the C key.
Press 4 or use F5 and F6
to select "4:SET
SYSTEM."
ENT key
C key
Press 5 or use F5 and F6
to select
"5:COMMUNICATION."
ENT key
C key
Press 3 or use F5 and F6
to select "3:COM
PORT."
ENT key
C key
41
