Denver CAD-375 - Location of Parts and Controls; Front Panel Controls Overview

E2
PTY
TA AF
BAND
PTY
TA AF
BAND
1 18 16 177 1115109
191214 2 3 20 21 22 23 24 25136 8 5
4
(1-6)
26 27
RESET

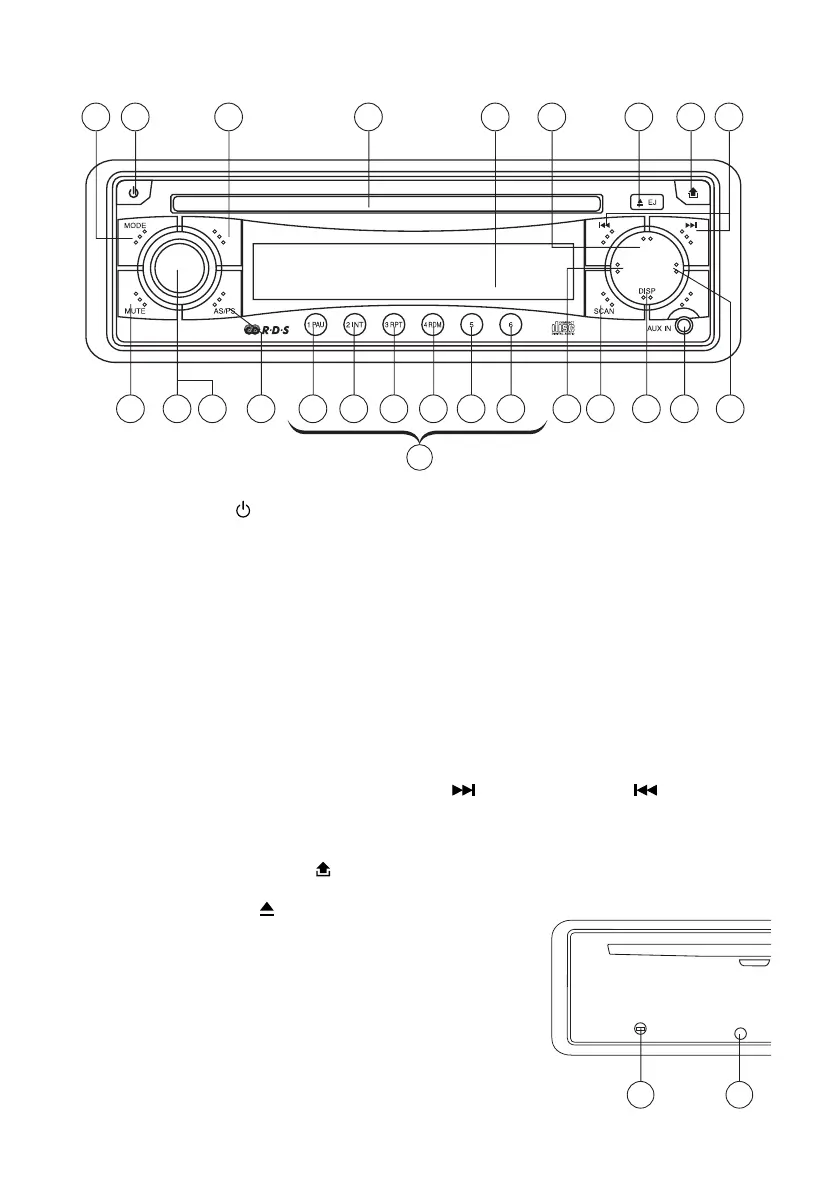

LOCATION OF PARTS AND CONTROLS
1. POWER ON/OFF ( )
2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER/TA SEEK/
MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/
LOCAL/VOL LAST
3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER/TA SEEK/
MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/BEEP/SEEK/STEREO/
LOCAL/VOL LAST
4. PRESET STATIONS (1,2,3,4,5,6)
5. ‘AF’ function (ALTERNATIVE FREQUENCIES)
6. ‘TA’ function (TRAFFIC ANNOUNCEMENT)
7. ‘PTY’ function (PROGRAM TYPE)
8. DISPLAY (DISP)
9. MODE BUTTON (MODE)
10. BAND (BAND)
11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN )
12. AUTO SEEK SEARCH TUNING (AS/PS)
13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCAN)
14. MUTE BUTTON (MUTE)
15. PANEL RELEASE BUTTON ( )
16. LCD DISPLAY
17. CD EJECT BUTTON ( )
18. CD SLOT
19. PAUSE BUTTON
20. INTRO BUTTON (Preview all Tracks)
21. REPEAT BUTTON
22. RANDOM BUTTON
23, 24. + 10 TRACK SEARCH UP/DOWN
25. FRONT AUX IN
26. RESET BUTTON
27. POWER INDICATOR LED
