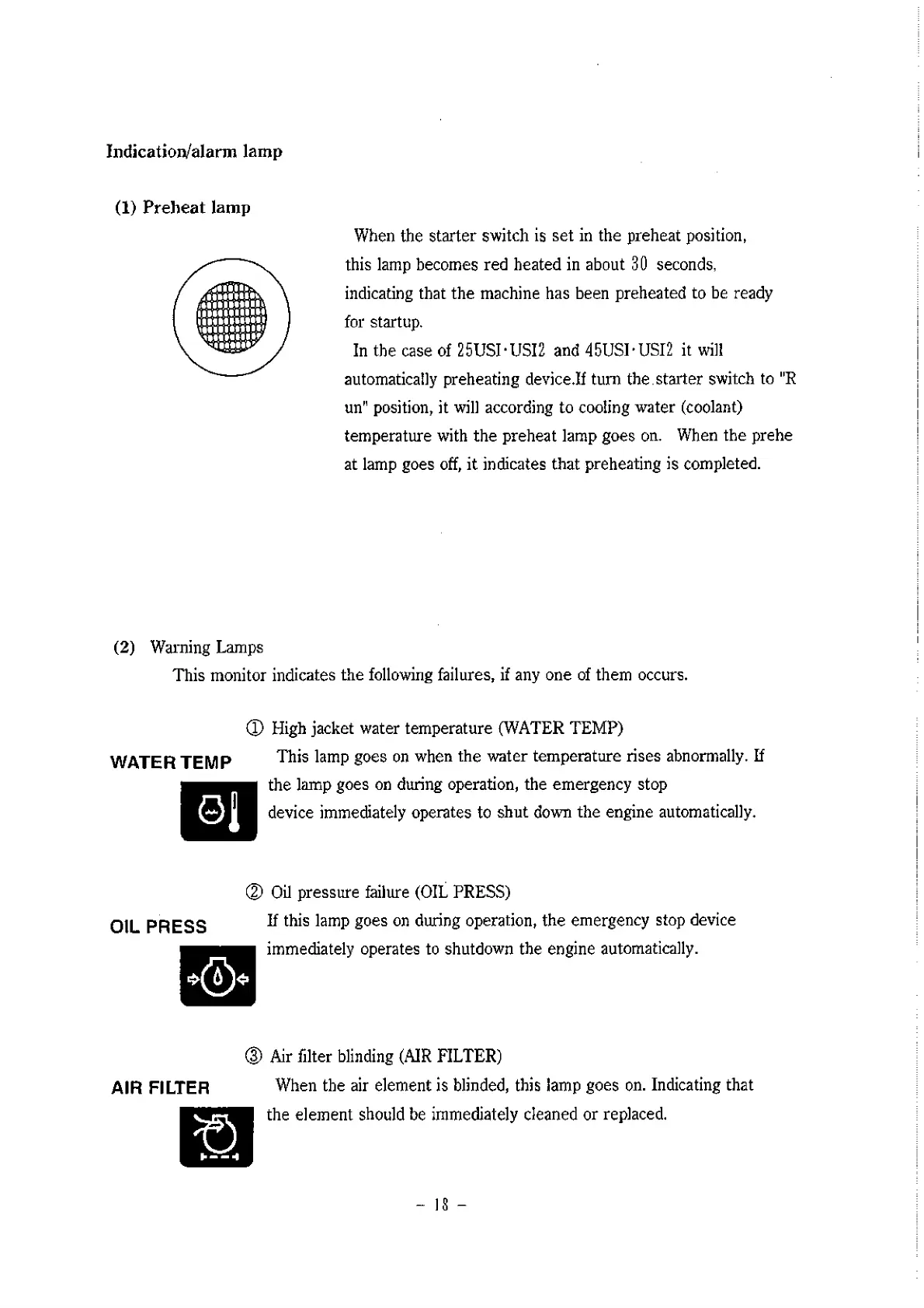

Indication/alarm lamp
(1) Preheat lamp
When the starter switch is set in the preheat position,
this lamp becomes red heated in about 30 seconds,
indicating that the machine has been preheated to be ready
for startup.
In the case of 25USI-USI2 and 45USI-USI2 it will
automatically preheating device.If turn the.starter switch to "R
un" position, it will according to cooling water (coolant)
temperature with the preheat lamp goes on. When the prehe
at lamp goes off, it indicates that preheating is completed.
(2) Warning Lamps
This monitor indicates the following failures, if any one of them occurs.
ф High jacket water temperature (WATER TEMP)
WATER TEMP lamP Soes on when the water temperature rises abnormally. If
the lamp goes on during operation, the emergency stop
device immediately operates to shut down the engine automatically.
© Oil pressure failure (OIL PRESS)
OIL PRESS ^ this lamp goes on during operation, the emergency stop device
immediately operates to shutdown the engine automatically.
® Air filter blinding (AIR FILTER)
AIR FILTER When the air element is blinded, this lamp goes on. Indicating that
the element should be immediately cleaned or replaced.
