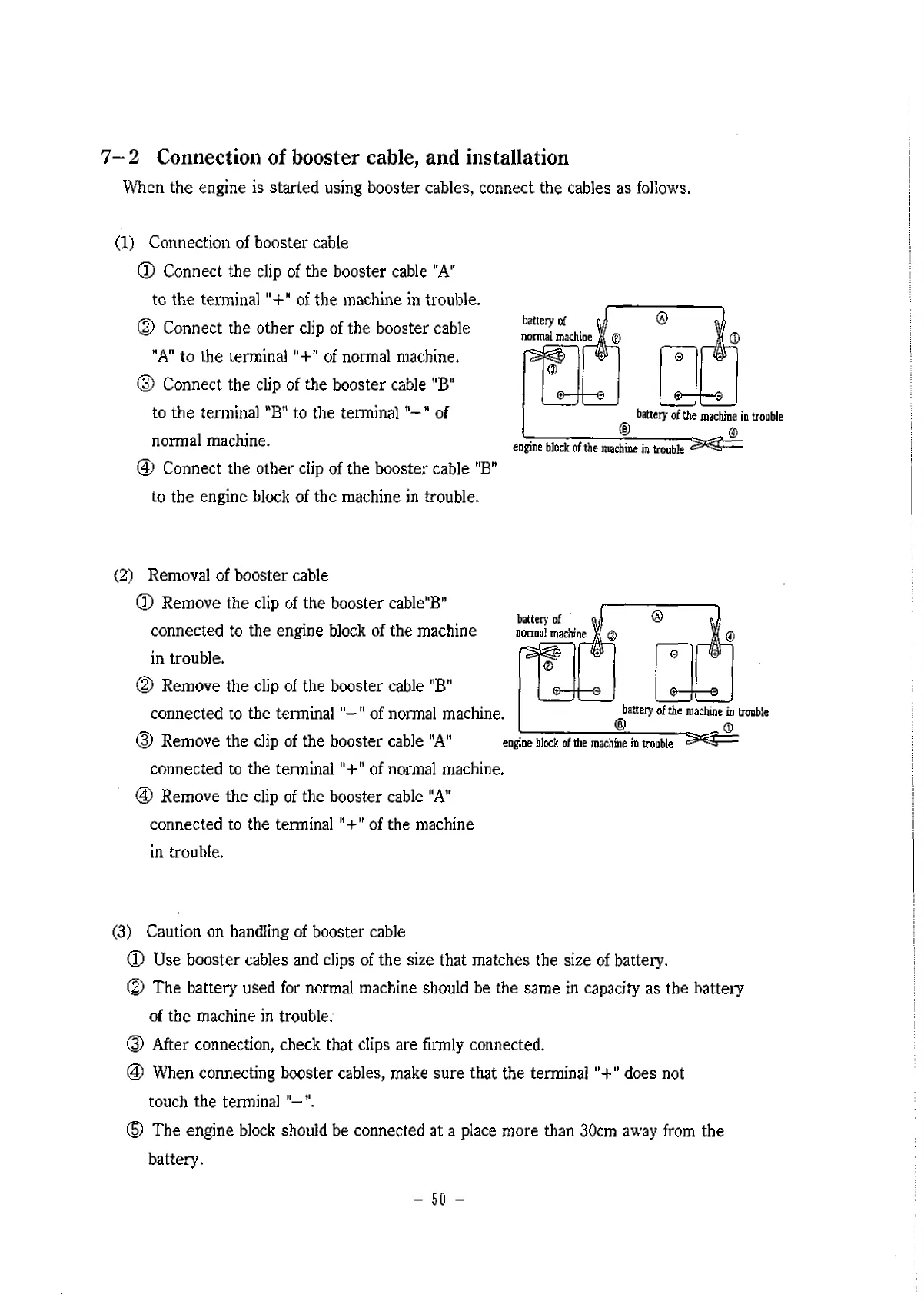

7- 2 Connection of booster cable, and installation
When the engine is started using booster cables, connect the cables as follows.
(1) Connection of booster cable
Ф Connect the clip of the booster cable "A"
to the terminal"+" of the machine in trouble.
© Connect the other clip of the booster cable
"A" to the terminal"+" of normal machine.
® Connect the clip of the booster cable "B"
to the terminal "B" to the terminal 11 of
normal machine.
© Connect the other clip of the booster cable "B
to the engine block of the machine in trouble.
battery of
normal machine
@
4+)*
battery of the machine in trouble
____________
Щ ®
engine block of the machine in trouble —
battery of
normal machine
(2) Removal of booster cable
Ф Remove the clip of the booster cable"B"
connected to the engine block of the machine
in trouble.
© Remove the clip of the booster cable "B"
connected to the terminal" of normal machine.
© Remove the C lip Of the booster cable "A" engine block of the machine in trouble
connected to the terminal"+" of normal machine.
® Remove the clip of the booster cable "A"
connected to the terminal "+" of the machine
in trouble.
battery of the machine in trouble
®. _ ©
(3) Caution on handling of booster cable
ф Use booster cables and clips of the size that matches the size of battery.
© The battery used for normal machine should be the same in capacity as the battery
of the machine in trouble.
© After connection, check that clips are firmly connected.
@ When connecting booster cables, make sure that the term inal"+" does not
touch the terminal".
© The engine block should be connected at a place more than 30cm away from the
battery.
-
