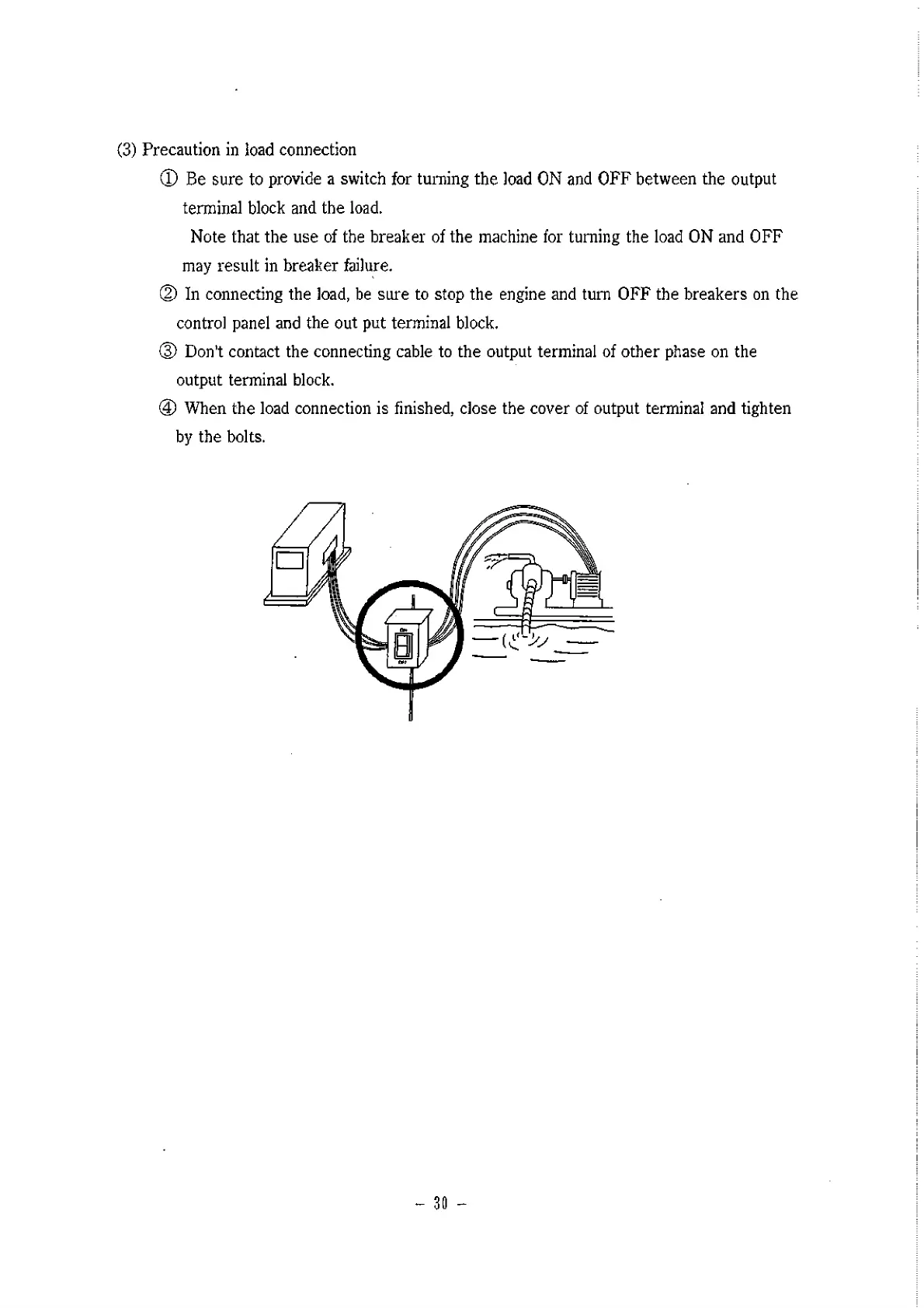

(3) Precaution in load connection
Ф Be sure to provide a switch for turning the load ON and OFF between the output
terminal block and the load.
Note that the use of the breaker of the machine for turning the load ON and OFF
may result in breaker failure.
(D In connecting the load, be sure to stop the engine and turn OFF the breakers on the
control panel and the out put terminal block.
Ф Don’t contact the connecting cable to the output terminal of other phase on the
output terminal block.
@ When the load connection is finished, close the cover of output terminal and tighten
by the bolts.
-
30
-
