ф Check the belt for tension and elongation.
Also, check it for damage. Replace if necessary
(2) For adjustment or replacement of the belt,
refer to the instruction manual for the engine.

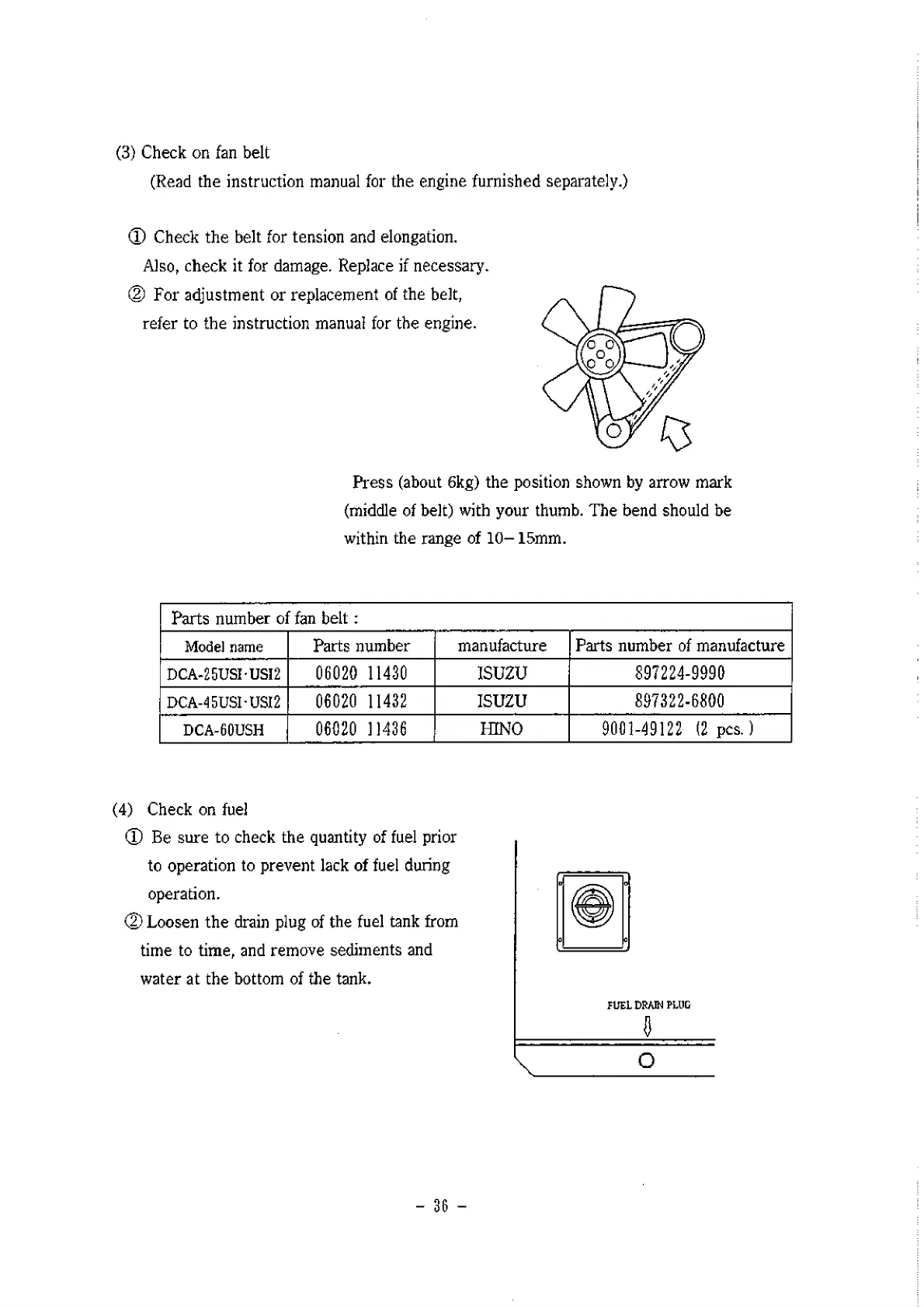

(3) Check on fan belt
(Read the instruction manual for the engine furnished separately.)
Press (about 6kg) the position shown by arrow mark
(middle of belt) with your thumb. The bend should be
within the range of 10- 15mm.
Parts number of fan b elt:
Model name
Parts number
manufacture Parts number of manufacture
DCA-25USI-USI2 06020 11430 ISUZU 897224-9990
DCA-4 5US1-USI2
06020 11432
ISUZU 897322-6800
DCA-60USH 06020 11436 HINO
9001-49122 (2 pcs.)
(4) Check on fuel
ф Be sure to check the quantity of fuel prior
to operation to prevent lack of fuel during
operation.
© Loosen the drain plug of the fuel tank from
time to time, and remove sediments and
water at the bottom of the tank.
FUEL DEAIM PLUG
-
36
-
